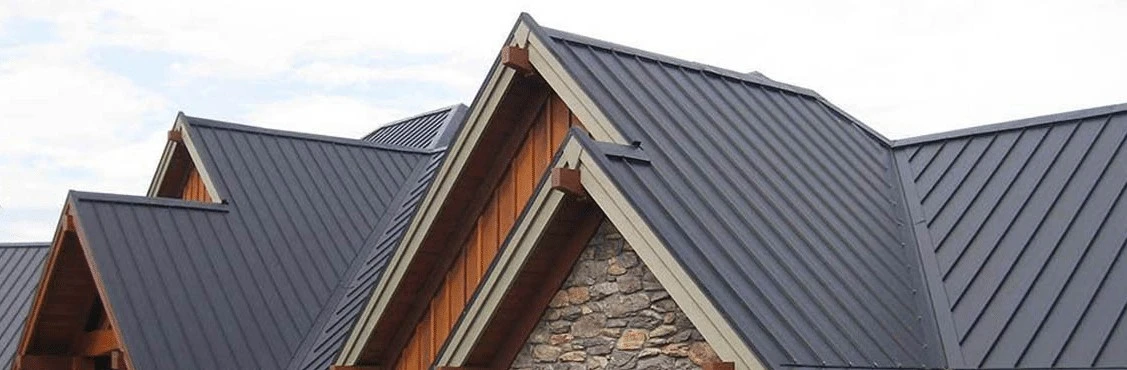

Top Uses of Striated Standing Seam Metal Roofing in Modern Architecture

When my team was approached by a luxury homebuilder in Colorado searching for a roofing solution that eliminated the "oil-can" effect common in metal roofs, we realized how critical striated standing seam metal roofing has become in modern architecture. This innovative panel system—featuring textured grooves running across the flat pan between vertical seams—does more than hide visual imperfections. It transforms metal roofing into a high-performance, aesthetically refined product suited for projects where visual consistency meets structural integrity (Metal Architecture, 2022).

In recent years, custom home builders, design-build firms, and premium renovation contractors increasingly specify this roofing technology to differentiate luxury homes and commercial buildings. The striated profile breaks up light reflection, concealing minor warping from thermal expansion while maintaining clean, modern lines that appeal to architects and homeowners alike.

Understanding Striated Standing Seam Metal Roofing

What Sets Striated Panels Apart

Striated standing seam metal roofing has vertical seams that fit together and long, textured lines that are pressed into the panel's surface when it is rolled out. In direct sunlight, flaws in flat or smooth panels are easy to see. But the striations spread the light, making flaws less noticeable. This makes oil canning much less noticeable. This is a typical problem where metal panels look wavy because of thermal stress or base irregularities. The Metal Construction Association (2021) says that this engineered texture improves both the consistency of the look and the minor transverse stiffness without affecting the structural performance.

The method uses concealed fastener technology, which uses clips to connect to the building structure below the seam. This lets the panels naturally expand and shrink as the temperature changes. This way of thinking about design not only makes it more weatherproof, but it also makes the top look better by hiding the screws.

Core Material and Construction Specifications

These days, striated panels are made from high-quality materials like Galvalume steel (ASTM A792) or aluminum alloys (3003, 3004). The thickness of the panels can be anywhere from 0.6mm to 1.2mm, depending on the needs of the application. For unique home jobs, a thickness of 0.7mm to 0.8mm is the best mix of rigidity and workability. High-performance PVDF coatings that meet AAMA 2605 standards protect against UV rays and keep the color, which is important for matte black and charcoal gray finishes that are popular in modern design.

At HF, we can make a lot of different specs, such as 25-330/400/430, 32-410, 45-400, and 65-400/430, with different rib heights to meet wind load and stylistic needs. Each panel comes in a wide range of RAL and Pantone colors, so design teams can perfectly match or contrast with external siding.

Top Architectural Uses of Striated Standing Seam Metal Roofing

High-End Residential Custom Homes

The market for striated metal roofs that is growing the fastest is luxury home building. Today's architects who work on modern estates like how the textured panels look with simple facades and large glass walls without making the views less clear. The striated shape hides small flaws in the base that happen naturally in long panel runs, which can be more than 40 feet on modern sloped roofs.

Matte black and slate gray panels are being used more and more in projects in Aspen, Lake Tahoe, and the Pacific Northwest to achieve a sophisticated mountain-modern look. Aspen-style panels are especially useful in mountain areas because they can easily shed snow while still looking nice. Builders also like that we offer a 30-year promise, which gives wealthy clients peace of mind about the product's long-term performance and resell value.

Commercial Office Buildings and Mixed-Use Developments

Commercial builders choose striated standing seam metal roofing systems to lower costs over the life of a building and show that the company is forward-thinking. Building Design + Construction (2023) says that reflective PVDF coatings can lower cooling loads by minimizing solar heat gain, which is good for large office complexes. The striations give architectural interest to the large roof planes that can be seen from nearby high-rises. They turn useful surfaces into design statements.

Mixed-use developments in cities take advantage of the system's long life and low maintenance needs. Metal roofing, not like built-up roofing or modified bitumen, keeps water from pooling, lowers the urban heat island effect, and helps earn LEED points through its ability to be recycled and sun reflection index (SRI) values.

Industrial Warehouses and Manufacturing Facilities

Industrial settings use striated panels because they are strong against weather and work well. The mechanical double-lock seams offer better resistance to wind uplift and meet the strict TAS 125 standards needed in hurricane-prone areas. With panel thicknesses going up to 1.2 mm, the structure will stay strong even when it's snowing a lot or being hit by machinery, which is usual in transportation settings.

Manufacturers like how quickly we can install because we can supply 1000 tons per month and deliver in 15 to 20 days. Because metal roofing is lighter than concrete or clay tiles, it lowers the loads on the structure. This means that extra framing reinforcement is often not needed during warehouse additions or changes.

Performance and Durability Insights for Procurement Decisions

Exceptional Lifespan and Corrosion Resistance

When it comes to lifespan, metal roofing systems always do better than asphalt roofs and membrane roofing. Our striated panels, which are made to meet ASTM, DIN, JIS, BS, and GB/T standards, have been shown to last for 30 years with little wear and tear. Galvalume coatings are better at resisting rust than regular galvanized steel. This is especially true in seaside and high-humidity areas where salt spray speeds up the breakdown of materials (ASTM International, 2020).

The striations help the structure work better by spreading out stress points that can cause the finish to break too soon. As part of quality control, T-Bend testing (ASTM D4145) is used to make sure that the coating is still intact in the grooves. This prevents micro-cracks and the start of rust.

Energy Efficiency and Thermal Performance

The Cool Roof Rating Council says that reflective metal roofing uses 10 to 25 percent less energy for cooling than dark asphalt shingles. When paired with the right insulation, striated panels help passive cooling strategies that lower the cost of running the HVAC system over the life of the building. The hidden fastener design gets rid of heat bridging at the points of connection, which makes the envelope work better overall.

When project managers are trying to get green building certifications, these energy metrics are important. Metal roofing materials can be recovered and often have 25 to 30 percent recycled content. This makes them even more environmentally friendly, which is important to institutional and business clients.

Maintenance Requirements and Total Cost of Ownership

Metal roofing doesn't need much maintenance compared to composite shingles that need to be replaced every so often or membrane systems that need to be checked for holes all the time. In low-slope situations (below 3:12 pitch), the striated lines may collect dirt, so we suggest cleaning them with fresh water once a year to stop organic growth that could damage the coating over time.

When procurement teams look at the total cost of ownership, they find that the higher original investment in metal roofing pays off in lower upkeep calls, lower insurance rates because it doesn't catch fire, and higher property values. Our three factories' combined production capacity guaranties steady supply for multi-phase projects, which simplifies procurement and cuts down on project delays.

Comparing Striated Standing Seam Metal Roofing with Other Roofing Solutions

Striated vs. Flat Standing Seam Panels

Esthetic consistency is what makes the difference. Flat panels often have visible oil canning, which leads to expensive callbacks when homeowners or building owners notice problems with the quality. Even though the structure is sound, the waviness makes people unhappy in high-end projects where perfect looks are worth the money. Striated panels get rid of this worry without raising the price, because the texture happens during normal roll-forming, which adds value through how it looks instead of how much it costs.

Metal Roofing vs. Asphalt Shingles and Built-Up Systems

Asphalt shingles are still a good value for basic home building, but they don't last as long, don't fight fire as well, and are bad for the environment compared to striated standing seam metal roofing. A normal shingle roof needs to be replaced every 15 to 20 years, which means ongoing costs and trash in landfills. Built-up roofing and modified bitumen systems work well for commercial uses with low slopes, but they don't look as good or be installed as quickly as metal systems.

When compared to tile or slate, metal roofing is 50–75% lighter, which means that base and frame costs are lower, which more than covers the cost of the materials. In many retrofit situations, being able to install over an existing roof makes the project even more cost-effective.

How to Procure and Install Striated Standing Seam Metal Roofing for Your Projects

Selecting a Qualified Manufacturer and Supplier

Checking manufacturers' production capacity, quality certifications, and technical support skills is the first step to successful procurement. International standards (ASTM, DIN, and JIS) must be met, paint warranties must come from resin sources like PPG or Akzo Nobel, and experience with custom color matching and small-batch production must be shown.

At HF, we can handle orders of any size, with as few as 500 square meters or one ton, thanks to our three plants, seven production lines, and more than 40 specialized tools. This ability to adapt to different sizes lets sample homes and model projects be built without the long lead times that make design-build plans difficult to stick to. Our ISO9001 and ISO14001 certifications give institutional buyers the quality guarantee they need for bid standards.

Professional Installation Best Practices

Installing striated metal roofing correctly is very important if you want it to work well and look good. Certified workers know how thermal expansion works and make sure that the clips on the panels don't get stuck, which is the main cause of distortion after installation. Manufacturers specify how the seams should be engaged, which usually means using special seaming tools for double-lock profiles.

We can give you technical advice on installation and put you in touch with experienced contractors in the area of your project. Avoiding common mistakes like overtightening clips or not applying enough sealer saves both the performance and the guarantee.

Strategic Procurement Considerations

When buying in bulk for multiple projects, unit costs are kept low while store freedom is kept. Our monthly supply capacity of 1,000 tons serves big commercial developments and production builder programs that need reliable material availability. The arrival time of 15 to 20 days allows for just-in-time purchasing, which reduces the need for on-site storage without putting the plan at risk of being behind.

Custom color development needs our coating specialists and design teams to work together up front to make sure accurate color matching and batch consistency. This is a common concern for architects who ask for non-standard finishes. We have strict controls over color tolerance, and we can send architectural samples ahead of time for review before full production runs.

Conclusion

Striated standing seam metal roofing has gone from being a special way to hide oil canning to a standard design requirement for projects that need to look good, last a long time, and be structurally sound. This roofing technology gives you measured benefits in terms of looks, durability, and cost over the building's lifetime, whether you're building a luxury mountain retreat, an urban mixed-use complex, or an academic school. Advanced manufacturing, tried-and-true material science, and a variety of purchasing options make it a more sensible choice for picky builders and purchasing professionals who know that roofing choices have an impact on the success of a project long after the roof is installed.

FAQ

1. Does the Striated Design Completely Eliminate Oil Canning?

Oil canning can't be directly stopped by any roofing system because it's how thin-gauge metal reacts to thermal stress and changes in the base. The striated shape is the best visual option on the market because it breaks up the patterns of light reflection that make waviness stand out. In real life, the striations keep customers from complaining and calling back because they hide small flaws that flat panels show when they're in full sunlight.

2. Can Solar Panels Be Installed on Striated Roofs?

Roofing with striated metal panels and solar panels work together perfectly. The rough lines are in the flat pan between the seams, and fixing clamps (like S-5! systems) connect directly to the raised seam ribs. The grooves don't affect the shape of the clamps or how the load is distributed, which makes these roofs perfect for retrofits that use green energy. We suggest working together with solar installers during the planning stage to get the best panel layout and wiring.

3. What Minimum Roof Slope Works with This System?

Most makers say that striated standing seam setups need at least a 2:12 slope to make sure that water drains properly and doesn't pool in the texture grooves. If the slope is lower, you may need to add more waterproofing underlayment and do maintenance more often to clear away debris. Steeper pitches (4:12 and above) work best and are easier to install, especially in places with a lot of snow, where water shedding is very important.

Partner with HF as Your Trusted Striated Standing Seam Metal Roofing Supplier

Choosing the right metal roofing maker affects every step of the project, from the first samples to the final installation and the many years of use that follow. As a specialist in striated standing seam metal roofing, HF combines state-of-the-art production facilities with quick, helpful customer service geared toward custom home builders and business contractors. Our three factories have seven coating lines and more than 40 precise machines that make sure the quality of all of our panels, which range in size from 25-330 to 65-430 mm, in thickness from 0.6 mm to 1.2 mm, and with premium PVDF/PE finishes.

We know how important it is to meet sample home deadlines and how hard it is to build in more than one stage. That's why we keep our monthly capacity at 1,000 tons, offer shipping windows of 15 to 20 days, and have a variable minimum order size of 500 square meters. Your customers can be sure of the quality they expect because of our 30-year warranty and compliance with ASTM, DIN, JIS, and GB/T standards. You can email our technical team at huafeng@hfmetalroof.com or visit hfmetalroof.com to talk about the specifics of your next project and get color samples that fit your design vision.

References

1. Metal Architecture (2022). "Advancements in Standing Seam Panel Technology for Residential Applications."

2. Metal Construction Association (2021). "Technical Guidelines for Standing Seam Metal Roof Systems."

3. Building Design + Construction (2023). "Energy Performance of Reflective Metal Roofing in Commercial Applications."

4. ASTM International (2020). "ASTM A792: Standard Specification for Steel Sheet, 55% Aluminum-Zinc Alloy-Coated by the Hot-Dip Process."

5. Cool Roof Rating Council (2022). "Rated Products Directory: Metal Roofing Systems."

6. Journal of Architectural Engineering (2021). "Thermal Performance and Durability of Metal Roofing Systems in Varied Climates."
