Ibr Corrugated Roofing Sheets
Width: 750-1500 mm,or customized as required
Thickness: 0.4-1.2mm, or customized as required
Finishes: PE, HDP, PVDF COATING
3 factories&7 production lines&more than 40 machines
Supply Ability：1000 Ton/month
Service life:30-year warranty
MOQ:500㎡
Standard:ASTM,DIN,JIS,BS,GB/T
Delivery time: 15-20 days
Provide customized services: color, pattern, design customization
IBR Corrugated Roofing Sheets: Durable, Versatile, Cost-Effective
Xi'an Huafeng Construction Engineering Co., Ltd. is a leading manufacturer and supplier of high-quality ibr corrugated roofing sheets. With our state-of-the-art generation offices and broad industry encounter, we offer predominant material arrangements custom fitted to meet different development needs. Our items combine quality, toughness, and stylish offer, making them the perfect choice for a wide run of applications.
Product Introduction
IBR (Intermediate Bending Radius) corrugated sheet is a high-strength and durable roof and wall building material made of galvanized steel sheet or color-coated steel sheet. Its unique wave-shaped design (a combination of trapezoid and arc) has good drainage, wind pressure resistance and aesthetics, and is widely used in industrial plants, storage facilities, agricultural buildings and other fields.

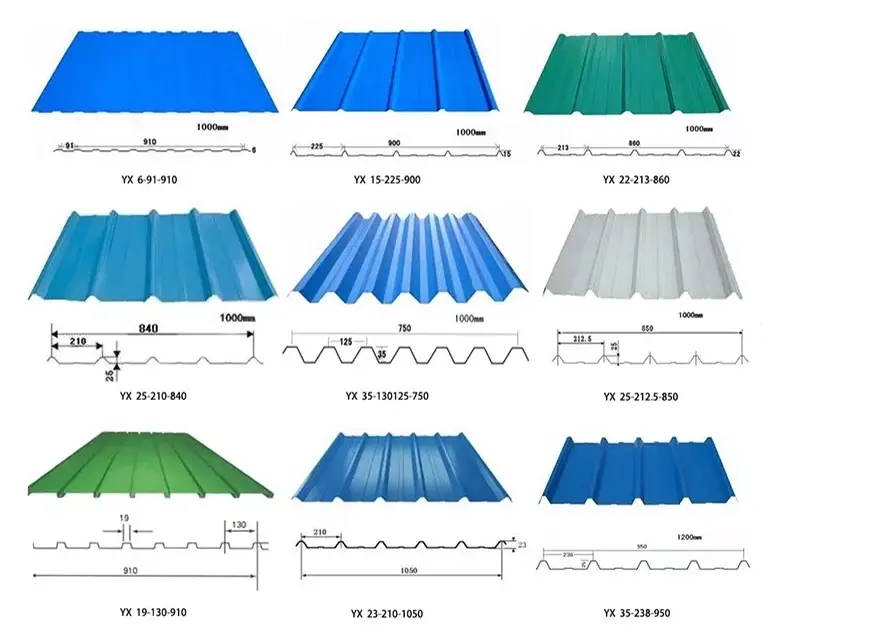

Specifications
| Parameters | Typical Values |
|---|---|
| Material | Galvanized steel, galvanized steel, color-coated steel (PPGI/PPGL) |
| Thickness | 0.4mm ~ 1.2mm |
| Effective coverage width | 750mm ~ 1100mm (depending on the plate type) |
| Wave height | 30mm ~ 75mm |
| Wave distance | 150mm ~ 300mm |
| Length | Customized (usually 1m ~ 13m) |
| Coating | Polyester (PE), silicon-modified polyester (SMP), PVDF, etc. |
| Colors | Available in many options (red, blue, white, gray, etc.) |
Structural Performance
- High strength: The corrugated structure improves the longitudinal bearing capacity and has excellent compression and bending resistance.
- Corrosion resistance: The galvanized layer or coating protection can reach a service life of 15 to 30 years.
- Waterproofness: The large wave spacing design effectively guides rainwater and prevents leakage at the overlap.
- Wind resistance: It can resist typhoons (≥ level 12) through mechanical biting or screw fixation.
- Fireproof: Metal material, fireproof grade A.
Installation Performance
Convenience
lightweight design (about 5~10kg/m²), can be cut and drilled directly
01
Fixing method
self-tapping screws (need to be equipped with waterproof washers); hidden fasteners (beautiful, reduce the risk of leakage)
02
Overlap requirements
longitudinal overlap ≥200mm (sealant is required when the slope is <10°), horizontal overlap 1~2 peaks.
03
Tools
electric screwdriver, tape measure, metal scissors
04

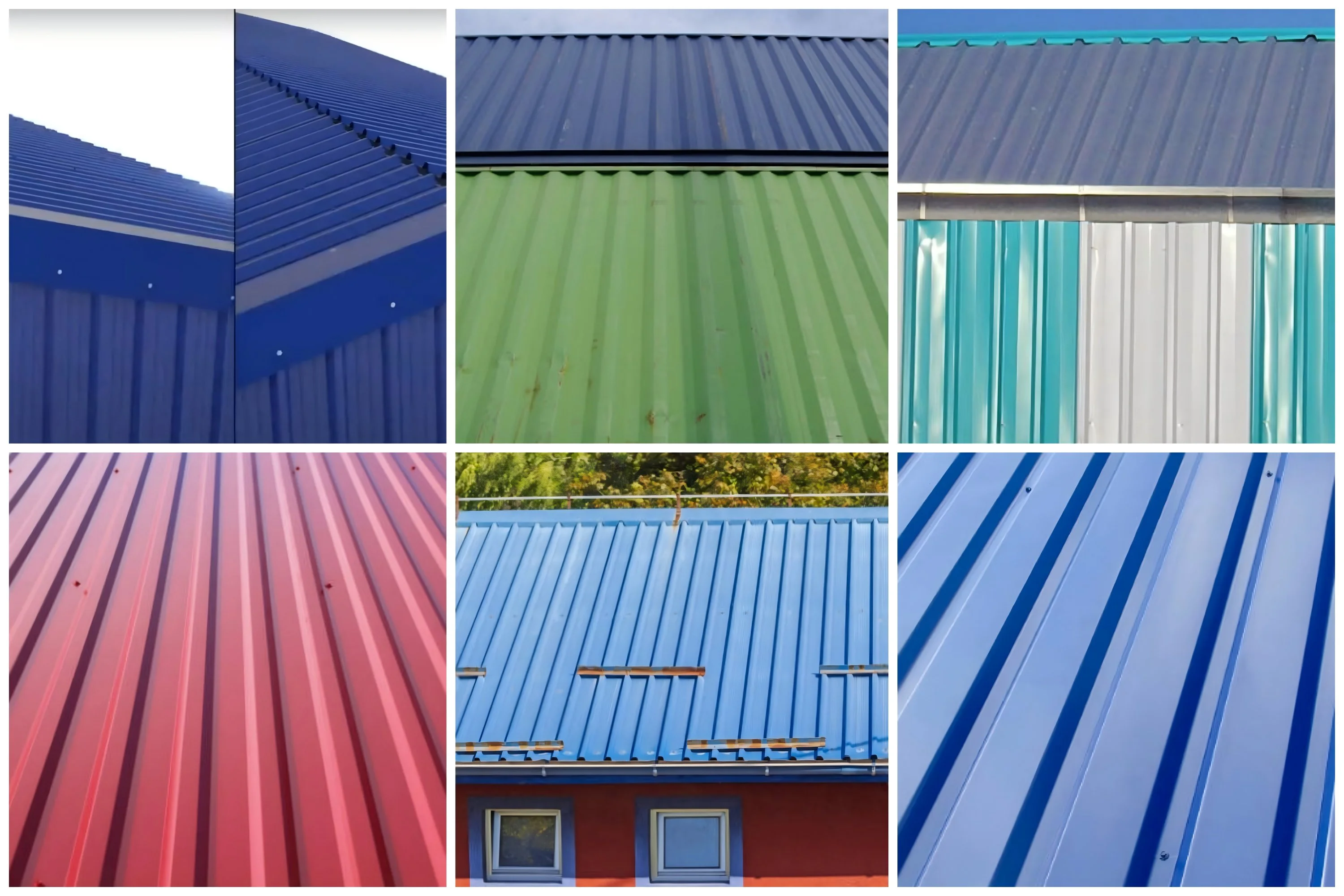

Applicable Scenarios
- Industrial buildings: factory roofs, workshop enclosures, logistics warehouses.
- Agricultural facilities: greenhouses, farms, granaries.
- Commercial use: parking lot roofs, market awnings.
- Temporary buildings: construction site offices, emergency shelters.
- Special needs: coastal areas (high anti-corrosion coating required), high-cold areas (strengthening snow load resistance design).
Why Choose Us?
- Cutting-edge production technology ensures consistently high-quality ibr corrugated roofing sheets
- Customizable solutions to meet specific project requirements
- Competitive pricing and bulk order discounts
- Strict quality control measures and compliance with international standards
- Experienced technical support team for pre-sale and after-sale service
Project Cases
Our products have been successfully used in numerous high-profile construction projects worldwide.

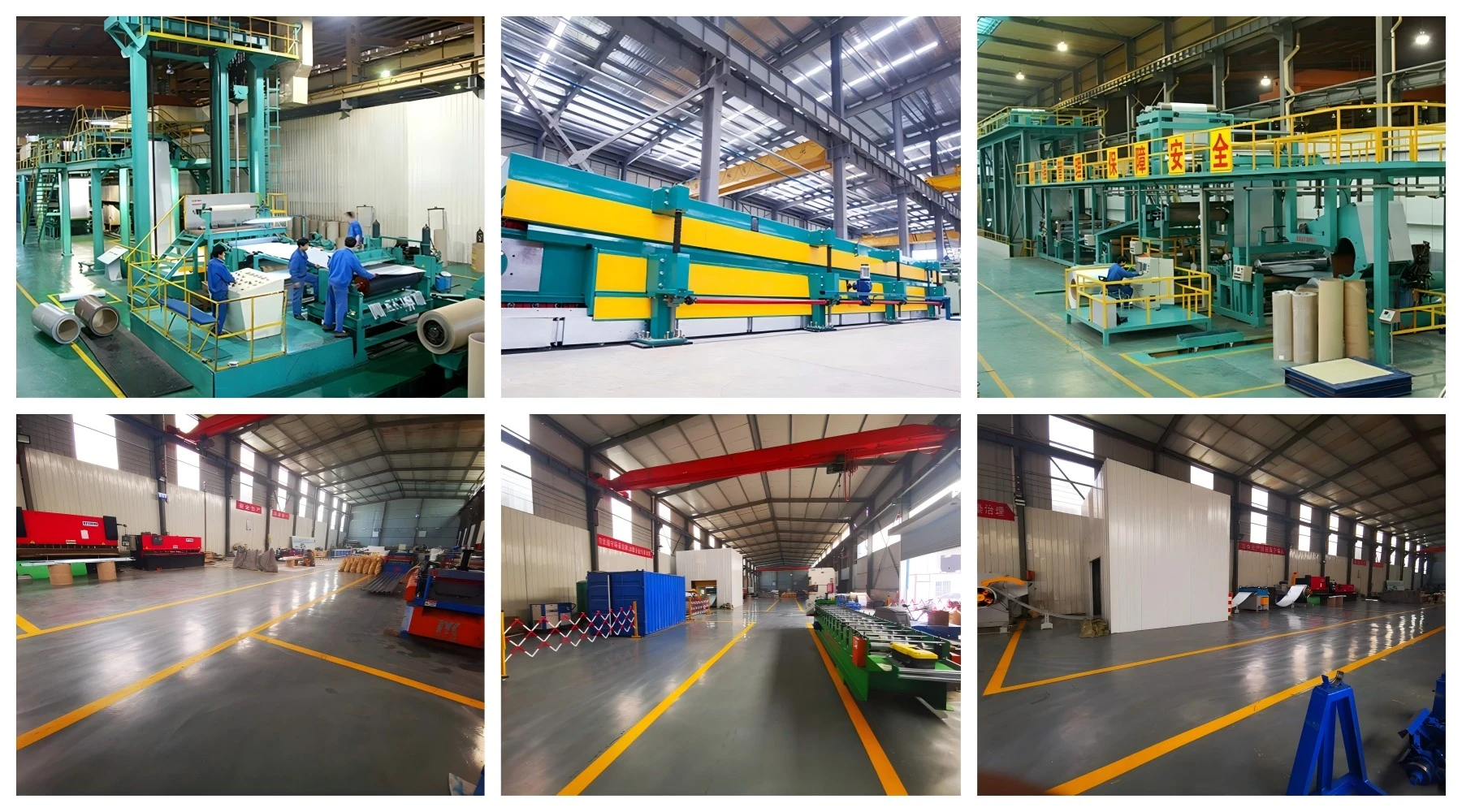

Factory Strength
With 3 factories, 7 production lines, and over 40 advanced machines, we guarantee efficient and high-quality production.

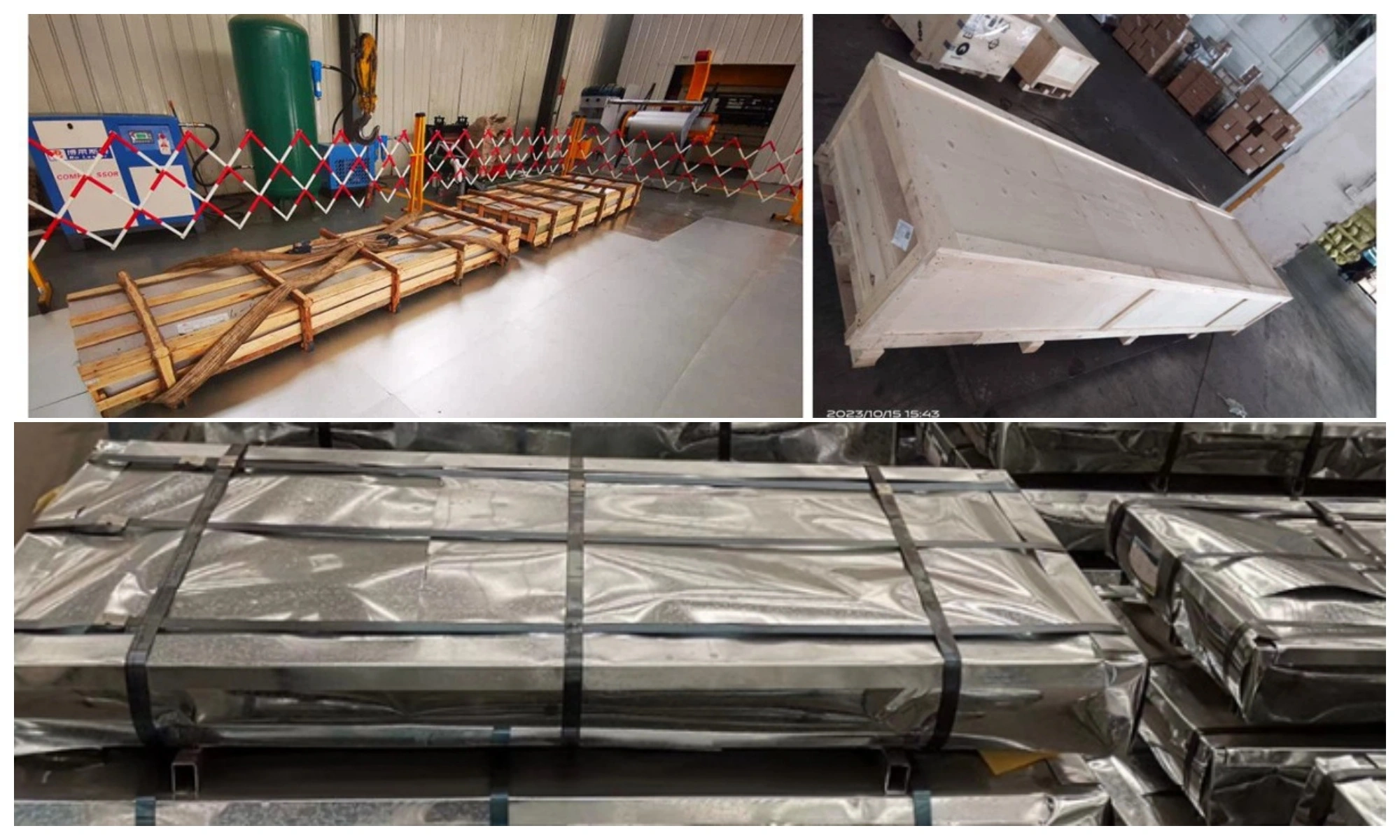

Packaging
We ensure secure packaging and reliable transportation to deliver your order safely and on time.
Qualification Certification
Our products meet international standards and are backed by ISO, CE, and SGS certifications.
FAQ
Q: What is the minimum order quantity for products?
A: Our minimum order quantity is 500㎡.
Q: Can you provide custom colors for the roofing sheets?
A: Yes, we offer a wide range of color options and can provide custom colors upon request.
Q: What is the delivery time for an order?
A: Typical delivery time is 15-20 days, depending on order size and specifications.
Q: Are your products suitable for coastal areas?
A: Yes, we offer high anti-corrosion coatings specifically designed for coastal environments.
Q: Do you provide installation guidance for your roofing sheets?
A: Absolutely. Our technical team can provide detailed installation instructions and support.
Contact Us
For Ibr Corrugated Roofing Sheets inquiries or to place an order, please contact us at huafeng@hfmetalroof.com.
