Corrugated Galvanized Metal Panel
Width: 600-1200 mm,or customized as required
Thickness: 0.12-1.5mm, or customized as required
Finishes: PE, HDP, PVDF COATING
3 factories&7 production lines&more than 40 machines
Supply Ability：1000 Ton/month
Service life:30-year warranty
MOQ:500㎡
Standard:ASTM,DIN,JIS,BS,GB/T
Delivery time: 15-20 days
Provide customized services: color, pattern, design customization
Corrugated Galvanized Metal Panel: Durable, Versatile, and Cost-Effective
Xi'an Huafeng Construction Engineering Co., Ltd. is a leading manufacturer and supplier of high-quality corrugated galvanized metal panels. With over four a long time of involvement, we specialize in planning, creating, and building metal material frameworks, window ornament dividers, and building walled in areas. Our items offer prevalent toughness, flexibility, and cost-effectiveness for different development ventures. We pride ourselves on our building skill, state-of-the-art generation offices, and commitment to quality.

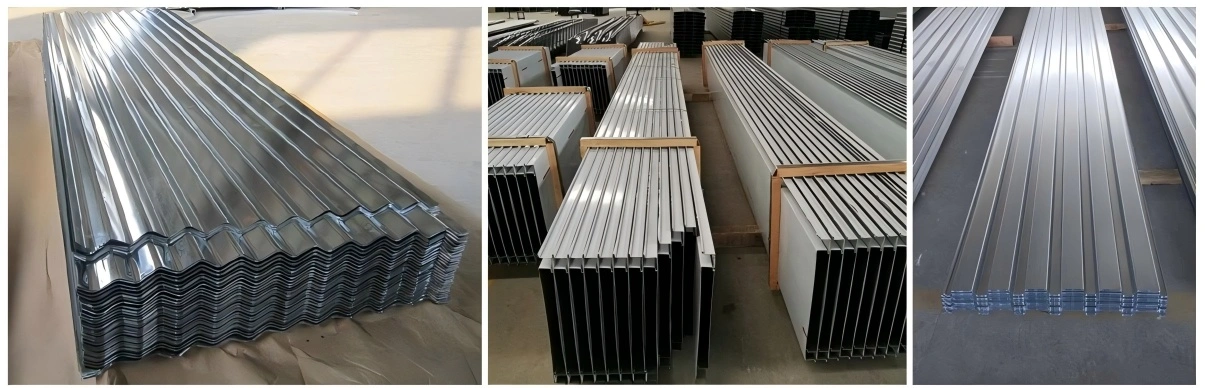

Product Introduction
The products are robust building materials widely used in construction, agriculture, and industry. Made from hot-dip galvanized steel sheets pressed into a wavy structure, these panels offer:
- Exceptional corrosion resistance
- High strength and load-bearing capacity
- Lightweight design for easy installation
- Versatility for roofs, walls, fences, and more
Specifications
| Feature | Details |
|---|---|
| Base Material | Low carbon steel (Q235, SGCC) |
| Coating | Hot-dip galvanizing (Z80-Z275 g/m²) |
| Optional Coating | PVDF, HDP for enhanced aesthetics |

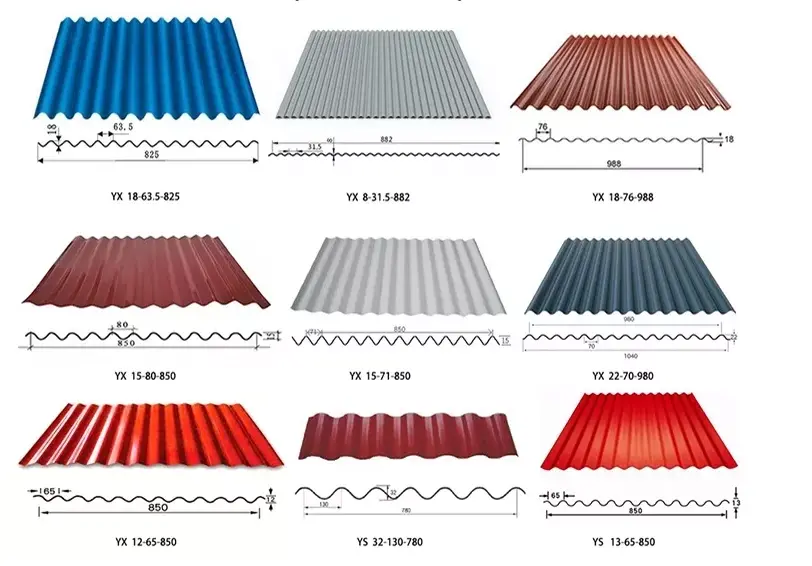

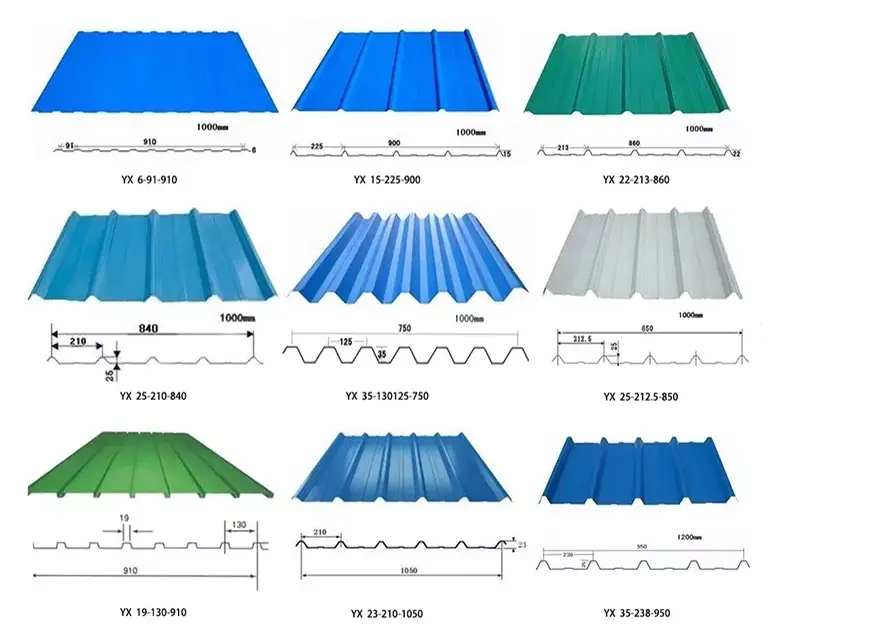

| Wave Height | 8mm-80mm (common: 25mm, 35mm) |
| Wave Distance | 60mm-300mm (common: 76mm, 130mm) |
| Corrugation Shape | Trapezoidal, sine, U-shaped |
| Thickness | 0.12mm-1.5mm (common: 0.3mm-0.6mm) |
| Width | 600mm-1200mm (adjustable) |
| Length | Customized (1m-12m) |
| Tensile Strength | ≥300MPa |
| Yield Strength | ≥240MPa |
| Elongation | ≥15% |
Why Choose Us?
- 7 raw material production lines ensure consistent quality
- Over 20 plate production machines for high-volume output
- 20+ patent certificates demonstrating innovation
- CE, ISO, and SGS certifications for quality assurance
- Customization capabilities to meet specific project needs
- Collaboration with Fortune 500 companies

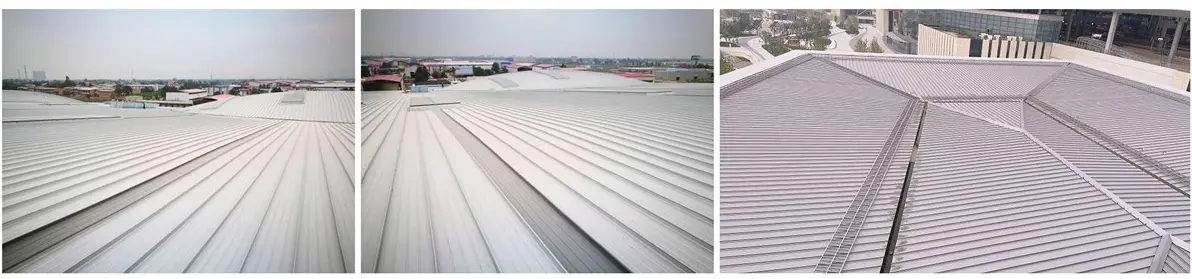

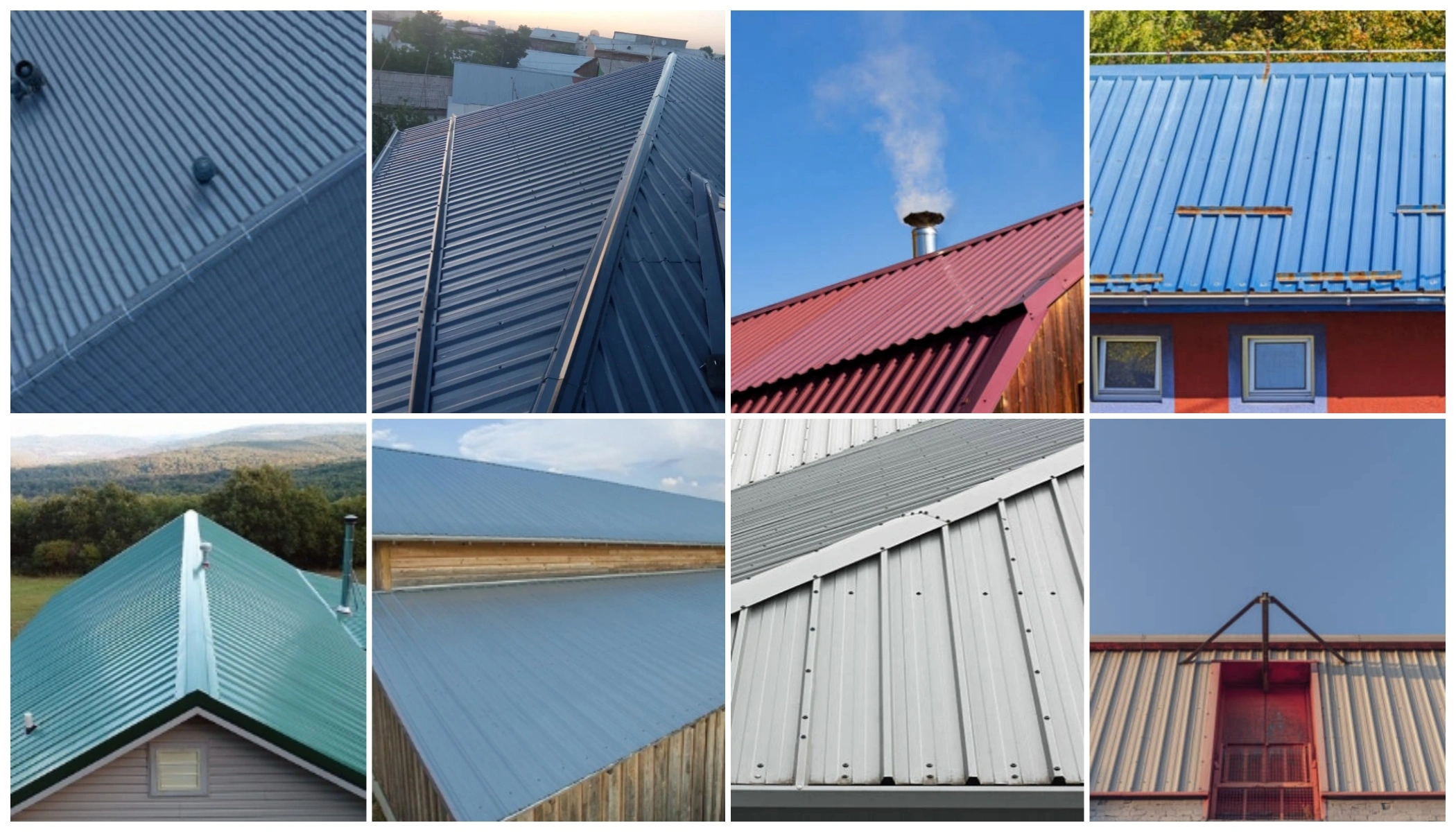

Project Cases
We've successfully completed numerous projects across various industries, showcasing our expertise and reliability.

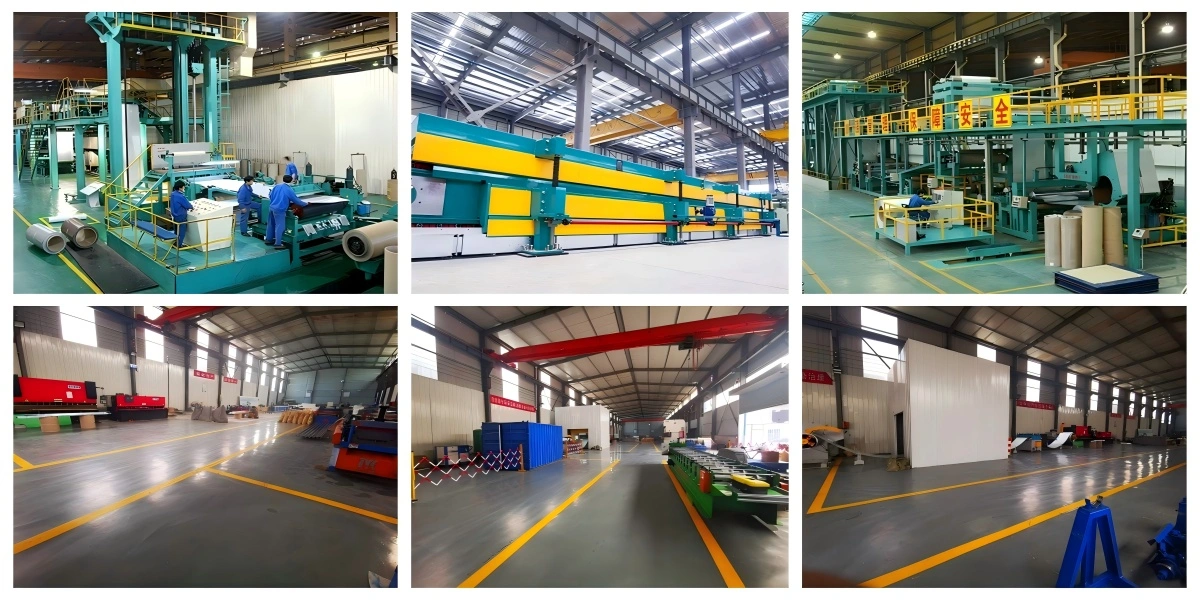

Factory Strength
Our state-of-the-art facilities and experienced team ensure top-quality corrugated galvanized metal panels for every order.

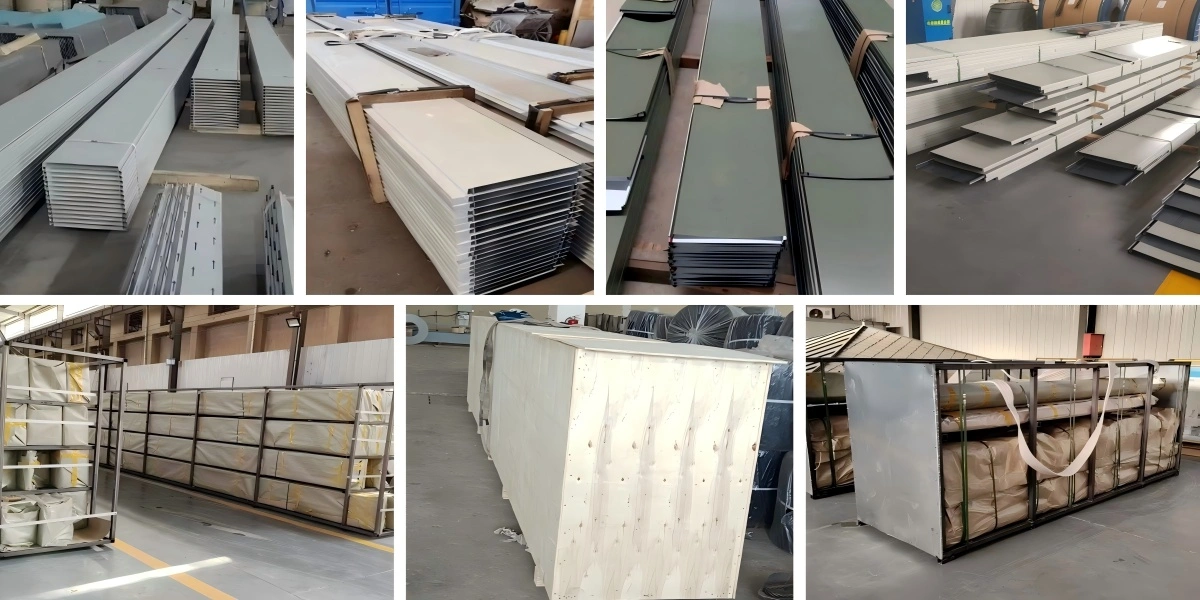

Packaging
We use secure packaging methods and reliable logistics partners to ensure safe, timely delivery of your panels.
Qualification Certification
Our products meet international standards, backed by CE, ISO, and SGS certifications.
FAQ
Q: What is the minimum order quantity (MOQ) for products?
A: Our MOQ is 500㎡, allowing for cost-effective bulk purchases.
Q: Can you customize the color and design of the panels?
A: Yes, we offer customization services for color, pattern, and design to meet your specific requirements.
Q: What is the typical delivery time for an order?
A: Our standard delivery time is 15-20 days, depending on the order size and specifications.
Q: Do you offer a warranty on your products?
A: Yes, we provide a 30-year warranty on our products, ensuring long-term performance and peace of mind.
Q: Which industries typically use your products?
A: Our panels are widely used in construction, agriculture, infrastructure, and manufacturing sectors for various applications.
Contact Us
Ready to elevate your project with our premium corrugated galvanized metal panels? Contact us today at huafeng@hfmetalroof.com for expert advice and a customized quote.
