Aluminium Coil

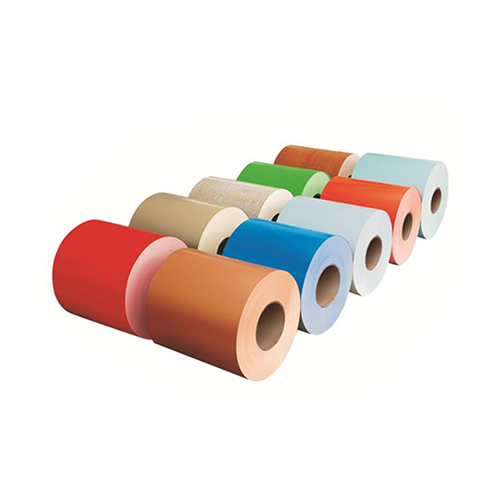

Colour Coated Aluminium Coil

Product name:Coil coated aluminum coil
Grade:1100,3003, 3004, 5052 series etc.
Coating paint：PVDF/PE
Color:RAL and other customized colors
Shape:coil,sheet,plate
Advantage:Corrosion Resistance
Application:aluminum ceilings,roofs, home appliances...
Supply Ability：10000 Ton/month
Service life:30-year warranty
MOQ:3 Tons
Delivery time: 15-20 days

Colour coated aluminum coils, as the name suggests, are painted on the surface of aluminum substrates. Commonly seen are fluorocarbon coated aluminum coil and polyester coil coated aluminium. They are usually used to manufacture building materials such as roofs, cladding and exterior walls. Widely used in aluminum-plastic panels, industrial factory roofs and walls, aluminum louvers, composite panels, aluminum ceilings, cans, and electronic products. Coated to protect against corrosion, UV rays and other environmental factors while also enhancing the material's aesthetics. Aluminum trim coils are available in a variety of colors and finishes, making them a versatile and popular choice for construction and decorative purposes.

Specifications

AA3003, AA3004 Coated pre painted aluminum sheet

Product	Color coated aluminium coil
Alloy	A1100,A3003, A3004, A5052 etc.
Temper	O--HI12
Thickness	From 0.022mm to 1.5mm
Width	From 1 8 mm to 2 0 0 0 mm
Diameter	Standard diameter: 1200mm
Diameter	Inner diameter:150mm, 405mm, 505mm, 508mm
Weight Coating	≤3.0 tons/roll Polyethylene, polyvinylidene fluoride
Surface	Embossed, polished, coated
Color	Ral code or according to customer requirements
Gloss	5-100%
Coating thickness	PE: greater than 18 microns
Coating thickness	PVDF: greater than 25 microns
Coatinghardness(pencilresistor)	≥ high
Coatingadhesion	5J
Impactresistance	No peeling or cracking (50 kg/cm,ASTMD-2794:1993)
Flexibility(T-shapedbend)	≤2T
ResistanttoMEK	More than 100
Boilingwaterresistance	≥2h
Scopeofapplication	Aluminum composite panels, solid aluminum veneers, aluminum honeycomb panels, aluminum ceilings, aluminum roofs, cans, home appliances, electronicsproducts etc
Advantagefeatures:	Stable performance, anti-corrosion, 30-year warranty.

Aluminum alloy chemical composition table (typical value, mass percentage %)

Element	1100	3003	3004	5052	Notes
Si	≤ 0.95	≤ 0.60	≤ 0.30	≤ 0.25
Fe	≤ 0.95	≤ 0.70	≤ 0.70	≤ 0.40
Cu	0.05 - 0.20	0.05 - 0.20	≤ 0.25	≤ 0.10
Mn	≤ 0.05	1.0 - 1.5	1.0 - 1.5	≤ 0.10	One of the main strengthening elements of 3003 and 3004
Mg	≤ 0.05	≤ 0.10	0.8 - 1.3	2.2 - 2.8	The main strengthening element of 3004 and 5052
Zn	≤ 0.10	≤ 0.10	≤ 0.25	≤ 0.10
Ti	≤ 0.05	-	-	-	Usually unspecified or ≤0.05%
Cr	-	-	-	0.15-0.35	Unique to 5052, improved corrosion resistance and work hardening response
Others (single)	≤ 0.05	≤ 0.05	≤ 0.05	≤ 0.05
Others (total)	≤ 0.15	≤ 0.15	≤ 0.15	≤ 0.15
Al	≥ 99.00	Residue	Residue	Residue	1100 is commercial pure aluminum, the highest purity
Important Note: Typical values: The data in the table are the typical chemical composition ranges of each alloy grade. The specific composition in actual production may vary slightly depending on the implementation standard (such as ASTM, EN, GB, JIS, etc.), manufacturer and batch.

Aluminum alloy mechanical properties comparison table (typical values)

Alloy	Temper	Yield Strength	Tensile strength	Elongation	Hardness
1100	O	35-50	80-100	30-40	25-35
1100	H14	100-120	110-130	5-10	35-45
3003	O	40-60	100-130	25-35	35-45
3003	H14	140-160	145-170	8-12	50-60
3004	O	70-90	170-200	18-22	50-60
3004	H34	190-220	230-260	8-12	70-80
5052	O	80-100	180-210	20-25	60-70
	H32	220-250	250-280	10-14	75-85
	H34	250-280	280-310	8-12	80-90
Key Notes: Data range: The data in the table are typical values. The actual performance is affected by material thickness, production process (such as cold rolling rate) and test standards, and the specific warranty shall prevail.

State code:

--O state: annealed state, softest, best plasticity.

--H3x: Partial annealing after work hardening (such as H32, H34), the larger the number, the higher the strength (H34 > H32).

Strength ranking (H34 state reference):

5052 > 3004 > 3003 > 1100

Elongation (plasticity) ranking (O state reference):

1100 > 3003 > 3004 > 5052

Application scenarios:

--1100: conductive/thermal conductive parts, food packaging.

--3003: general sheet metal, architectural decoration.

--3004: beverage cans, high-strength building panels.

--5052: Ships, automobiles, corrosion-resistant structural parts.

Some common applications

The Colour Coated Aluminium Coil finds a wide range of applications across various industries due to its versatility and advantageous properties. Some common applications include:

▲Building and Construction:

Used for roofing, cladding, facades, and decorative elements in residential, commercial, and industrial buildings.

▲Transportation:

Utilized in the manufacturing of automotive parts, such as body panels, trims, and decorative elements for cars, buses, and other vehicles

▲Household Appliances:

Applied in the production of home appliances, such as refrigerators, air conditioners, and kitchen equipment, for aesthetic and protective purposes

▲Industrial Equipment:

Employed in the manufacturing of industrial machinery, equipment enclosures, and protective coverings due to its corrosion resistance and formability

▲Interior Design:

Applied for decorative purposes in interior design elements, such as ceiling panels, wall cladding, and decorative trim.

Test report

Inspeclion items		Standard requtrements	Inspection results	Concluslon on a single item
Coating thickness		Min,value 25um	25um	Pass
Glossiness deviation		≤10 (glossiness <70) ≤5(glossiness=70)	1.9 Glossiness 36.9	Pass
Pencil hardness		≥HB	2H	Pass
Coating flexibility		≤2T	2T	Pass
Adhesion		Not inferior to rating 1	cross-cut method rating 0 circle-cut methodrating1	Pass
Impact resistance		50kg·cm without paint peeling and cracks	50kg·cm without paint peeling and cracks	Pass
Abrasion resistance		≥5L/um	7.8L/um	Pass
Resistance to boiling water		without change	without change	Pass
Contamination resistance		≤15%	0.032	Pass
Alkali resistance		without change	without change	Pass
Appearance Quality		without change	without change	Pass
Oil resistance		without change	without change	Pass
Solvent resistance		without change	without change	Pass
Washing resistance		≥10000 times without change	≥10000 times without change	Pass
Salt fog resistance		≤rating 2	1 rating	Pass
artificial weathering	Color deviation	≤3.0	0.77	Pass
	Gloss reduction rating	≤rating 2 Quality	1 rating Quality	Pass
	Other aging properties	Rating 0	Rating 0	Pass
