Metal Corrugated Roofing Panel
Width: 600-1250 mm,or customized as required
Thickness: 0.4-1.2mm, or customized as required
Finishes: PE, HDP, PVDF COATING
3 factories&7 production lines&more than 40 machines
Supply Ability：1000 Ton/month
Service life:30-year warranty
MOQ:500㎡
Standard:ASTM,DIN,JIS,BS,GB/T
Delivery time: 15-20 days
Provide customized services: color, pattern, design customization
Metal Corrugated Roofing Panel: Durable, Cost-Effective Roofing Solutions
Xi'an Huafeng Construction Engineering Co., Ltd. is a leading manufacturer and supplier of high-quality Metal Corrugated Roofing panels. With our state-of-the-art generation offices and broad industry encounter, we offer predominant material arrangements that combine solidness, cost-effectiveness, and tasteful request. Our items are planned to withstand cruel climate conditions whereas giving great separator and ventilation properties.
Product Introduction
Corrugated roofing sheets are lightweight, durable, and cost-effective roofing materials widely used in residential, industrial, agricultural, and commercial buildings. Their wavy (corrugated) design enhances strength, water drainage, and ventilation while providing excellent weather resistance.
These sheets are available in various materials, including:
- Galvanized Steel – Rust-resistant, coated with zinc for durability.
- Aluminum – Lightweight, corrosion-resistant, ideal for coastal areas.
- PVC/Plastic (Polycarbonate or Fiberglass) – Translucent options for natural lighting.
- Color-Coated (PPGI/PPGL) – Pre-painted steel/aluminum for aesthetics and extra protection.

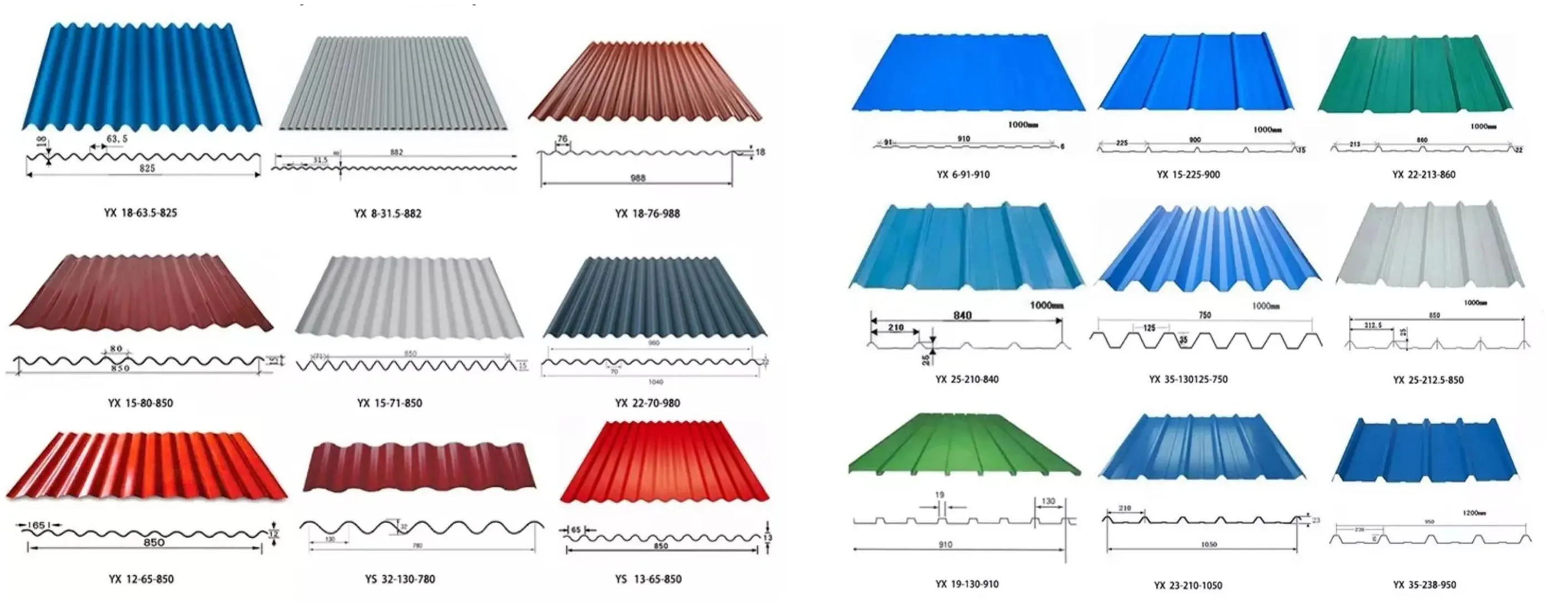

Specifications
| Parameter | Details |
|---|---|
| Material | Galvanized steel, Aluminum, PVC, Polycarbonate, Fiberglass |
| Thickness | 0.2mm – 1.2mm (metal), 0.8mm – 2.0mm (plastic) |
| Width | 600mm – 1250mm (standard: 1000mm–1050mm) |
| Length | Customizable (typically 1.8m – 12m) |

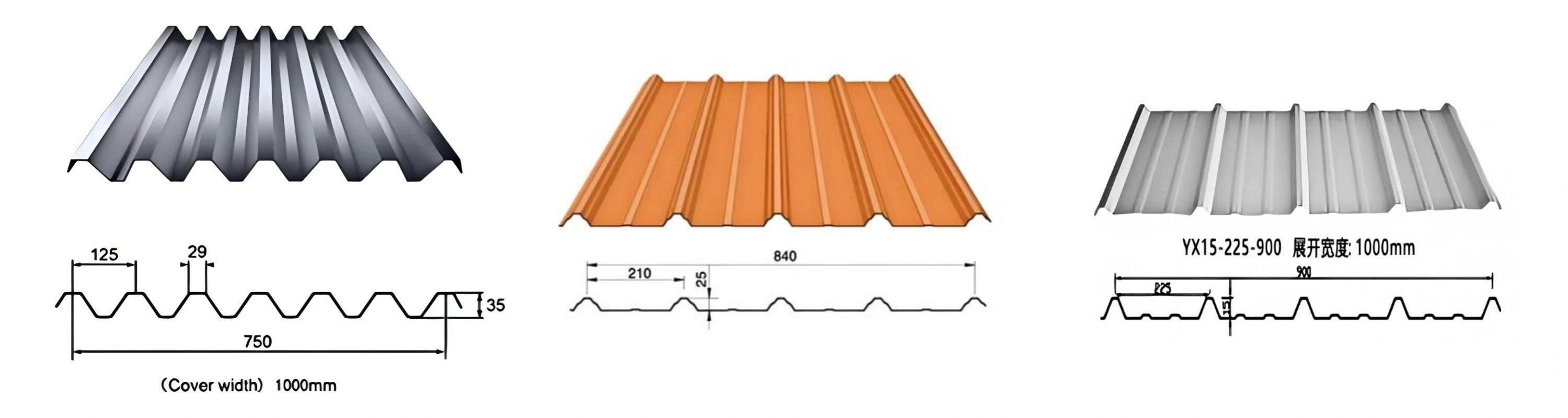

| Corrugation Pitch (wave height) | 25mm – 50mm (common: 30mm–35mm) |
| Corrugation Spacing (wave width) | 60mm – 150mm (common: 75mm–85mm) |
| Colors | Red, Blue, Green, White, Grey, Transparent (for plastic sheets) |
| Coating | Hot-dip galvanized (Zinc), PVDF/Polyester paint (for color-coated sheets) |
| Load Capacity | Varies by material (steel: 0.5–1.5 kN/m²; plastic: lower) |
| Applications | Roofing, siding, warehouses, sheds, garages, greenhouses |
Advantages
- Weatherproof :Resistant to rain, UV rays, and wind.
- Lightweight & Easy to Install:Saves structural support costs.
- Long Lifespan :15–50 years (depending on material).
- Low Maintenance :Does not require frequent repairs.
- Ventilation & Insulation :Airflow design reduces heat buildup.
Why Choose Us?
- Industry-leading manufacturing expertise with 7 production lines
- Customizable solutions to meet your specific project requirements
- Strict quality control measures ensuring superior product performance
- Competitive pricing and flexible minimum order quantities
- Dedicated customer support and technical assistance

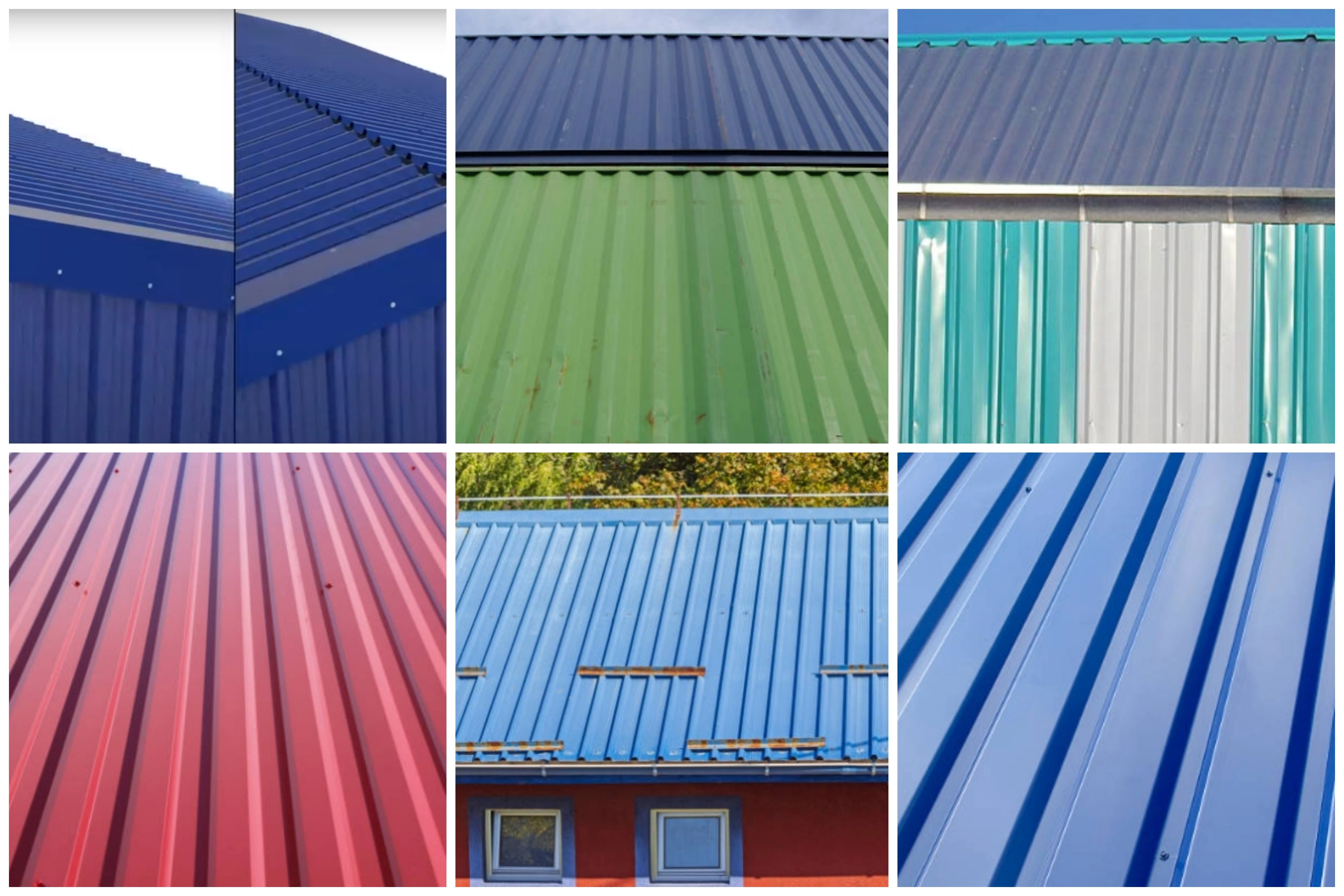

Project Cases
Our Metal Corrugated Roofing panels have been successfully implemented in numerous high-profile construction projects worldwide.

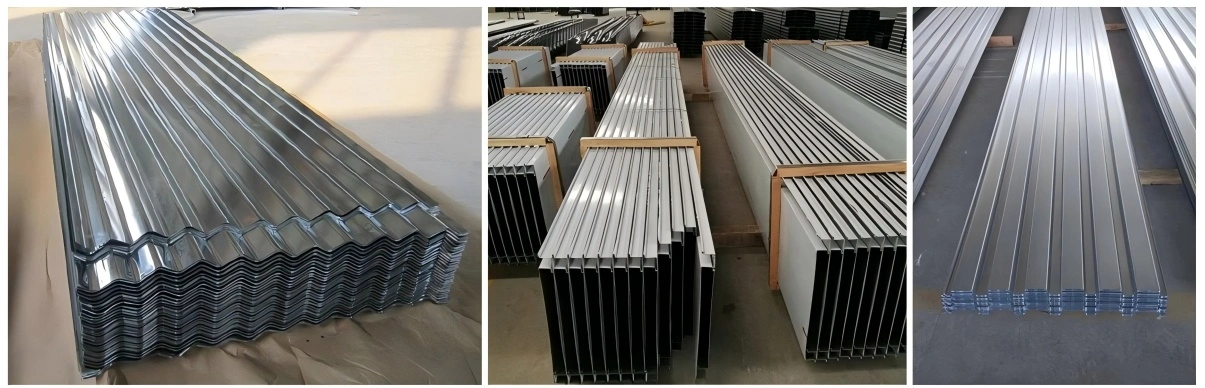

Factory Strength
With three state-of-the-art factories and over 40 advanced machines, we ensure consistent quality and timely delivery.

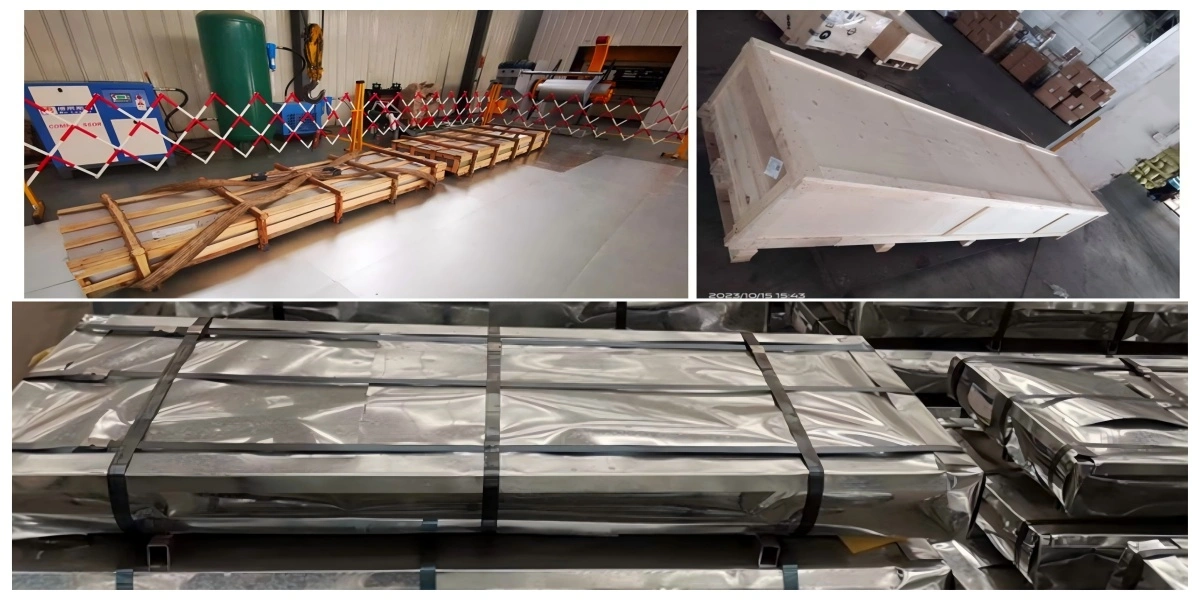

Packaging
We offer secure packaging and efficient transportation solutions to ensure your products arrive in perfect condition.
Qualification Certification
Our products meet international standards and are backed by CE, ISO, and SGS certifications.
FAQ
Q: What is the minimum order quantity for products?
A: Our standard MOQ is 500㎡, but we can be flexible depending on your needs.
Q: How long is the warranty on your products?
A: We offer a 30-year warranty on our products, ensuring long-term performance and peace of mind.
Q: Can you provide custom colors or designs?
A: Yes, we offer customization services for color, pattern, and design to meet your specific requirements.
Q: What is the typical delivery time for an order?
A: Our standard delivery time is 15-20 days, but this may vary based on order size and specifications.
Q: Are your products suitable for areas with extreme weather?
A: Yes, our panels are designed to withstand various weather conditions, including heavy rain, strong winds, and UV exposure.
Contact Us
For Metal Corrugated Roofing Panel inquiries or to place an order, please email us at huafeng@hfmetalroof.com.
