Striated Metal Roof Panels
Specifications: 25-330/400/430，32-410,45-400，65-400/430
Surface treatment: PVDF/PE
3 factories, 7 production lines, more than 40 machines
Thickness: 0.6-1.2mm
Color: A variety of RAL/Pantone colors available
Standards: ASTM, DIN, JIS, BS, GB/T
Supply capacity: 1000 tons/month
Service life: 30 years warranty
Minimum order quantity: 500 square meters/1 T
Delivery time: 15-20 days
Striated Metal Roof Panels: Durable, Stylish Protection for Your Building
Xi'an Huafeng Construction Engineering Co., Ltd. is a leading manufacturer and supplier of high-quality striated metal roof panels. Our imaginative material arrangements combine strength, aesthetics, and usefulness to meet the differing needs of development ventures. With over four a long time of involvement, state-of-the-art generation offices, and a commitment to fabulousness, we offer prevalent items that give long-lasting security and upgrade the visual request of any structure.
Product Introduction

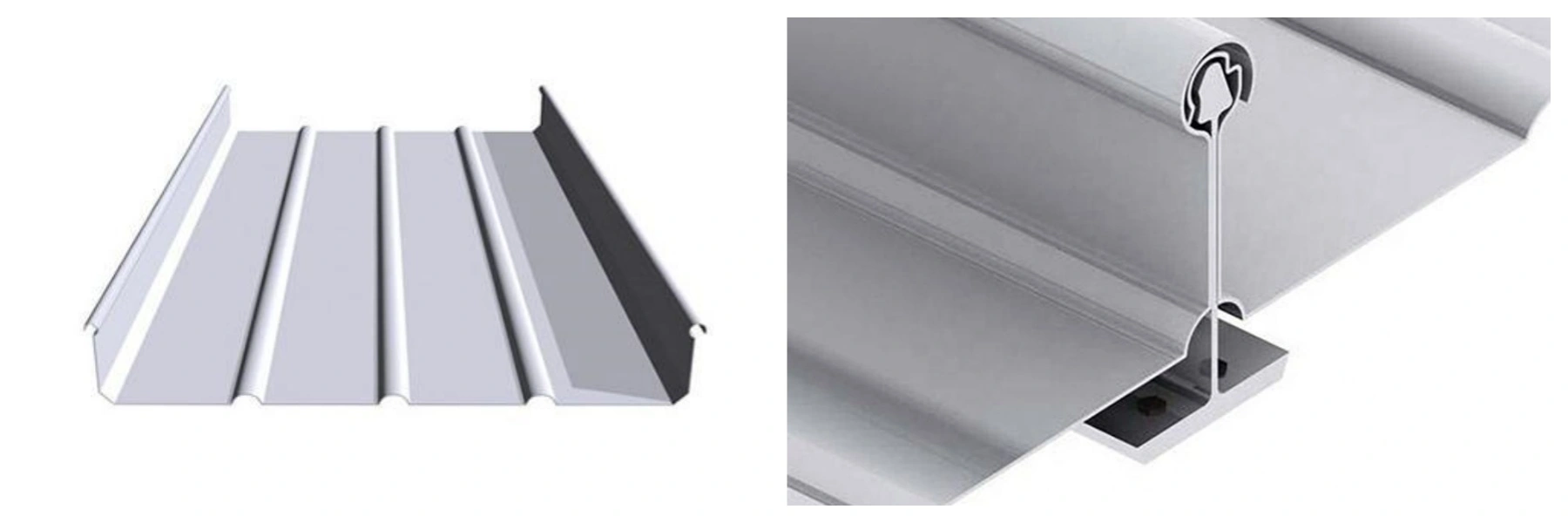

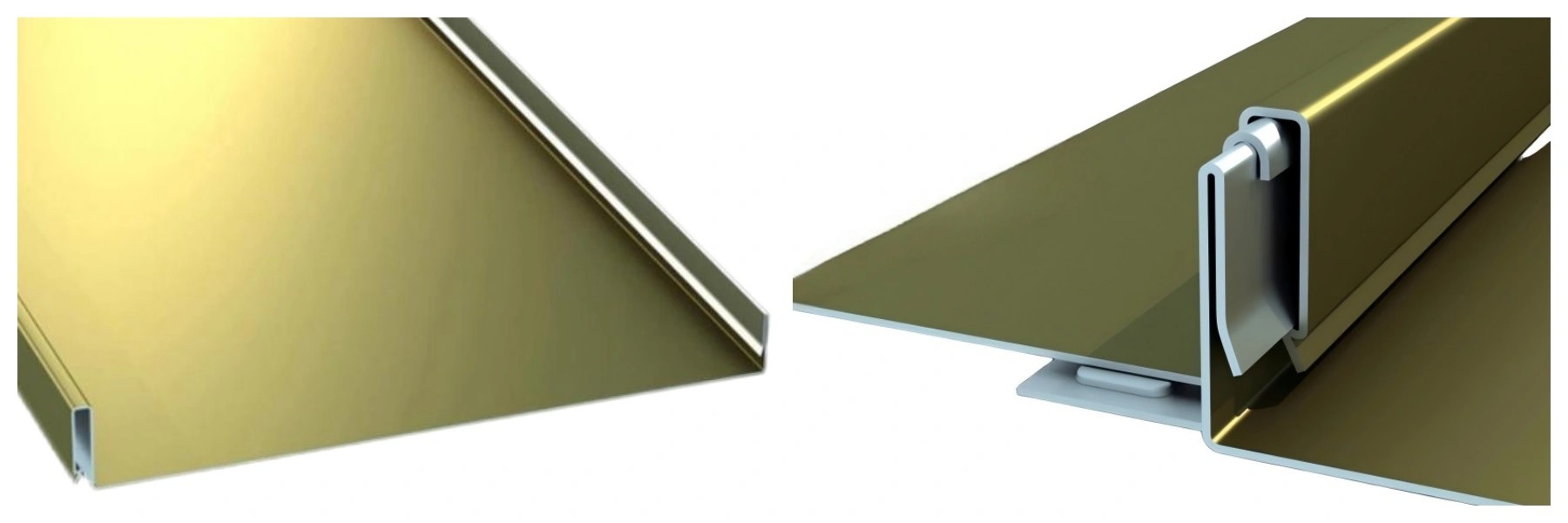

Our products feature a linear, ribbed texture created by grooves or ridges pressed into the metal. These striations add visual depth, improve rigidity, and enhance water-shedding capabilities, making them an ideal choice for various architectural applications.
Specifications
| Feature | Description |
|---|---|
| Material | Galvalume: 55% aluminum, 43.4% zinc, 1.6% silicon coating (ASTM A792) |
| Galvanized steel: G60 or G90 zinc layer (ASTM A653) | |
| Aluminum alloy: 3003, 3004, or 5052 models | |
| Copper/Stainless Steel: For high-end projects | |

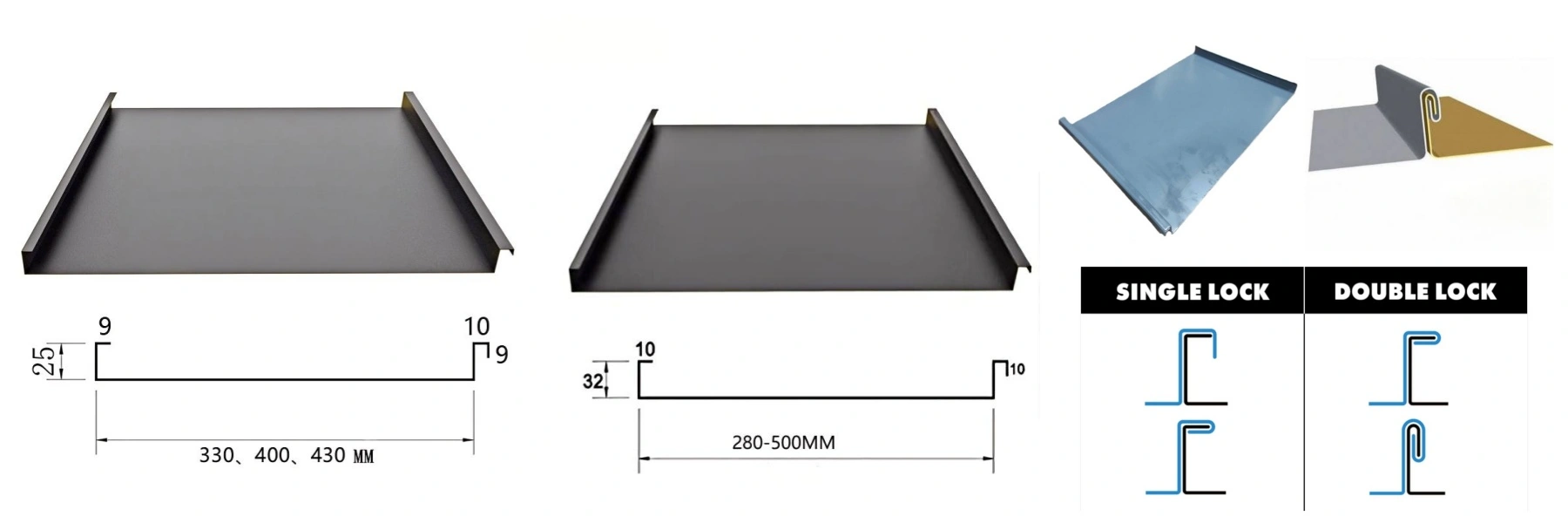

| Panel Dimensions | Width: 300-600mm (12"-24") |
| Length: Customized (≤12m) | |
| Thickness: 0.4-1.2mm | |
| Rib Height: 25-65mm | |
| Surface Treatment | Polyester (PE): Economical, general weather resistance |
| PVDF: UV resistant, high color fastness, 20-30 year color retention | |
| Coating Thickness | Front: 20-25μm (PVDF), Back: 5-10μm (PE) |

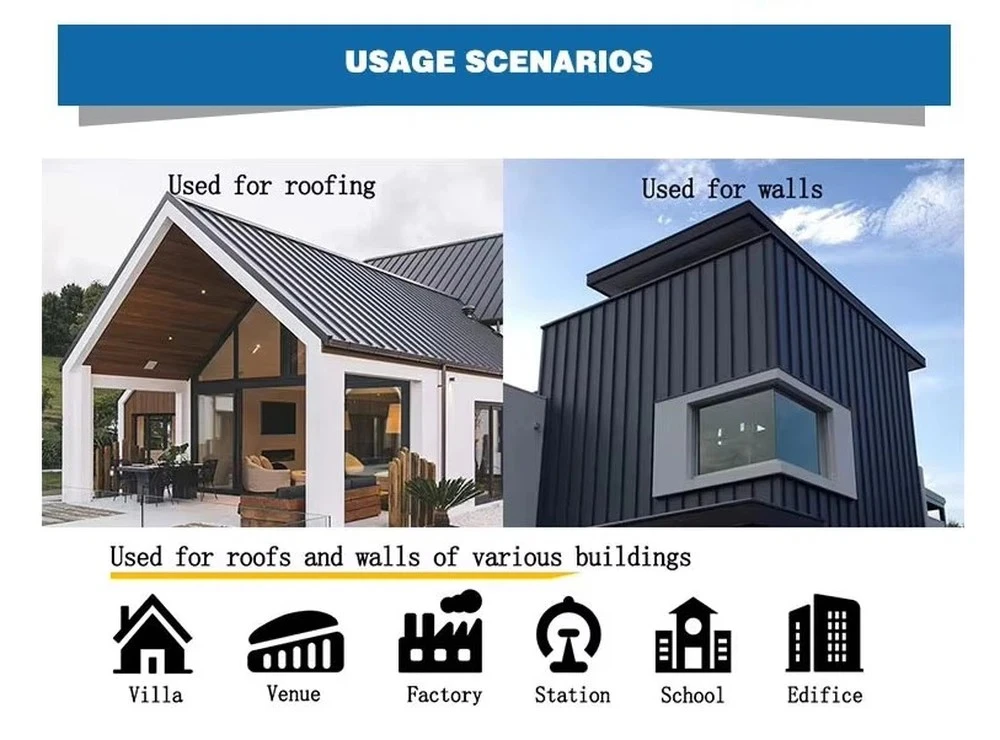

| Applications | Residential roofs, commercial buildings, architectural accents |
Why Choose Us?
- Customizable solutions to meet specific project requirements
- Advanced production facilities ensuring consistent quality
- Comprehensive certifications: CE, ISO, SGS
- Experienced team providing expert technical support
- Competitive pricing and flexible payment terms
- On-time delivery and reliable after-sales service

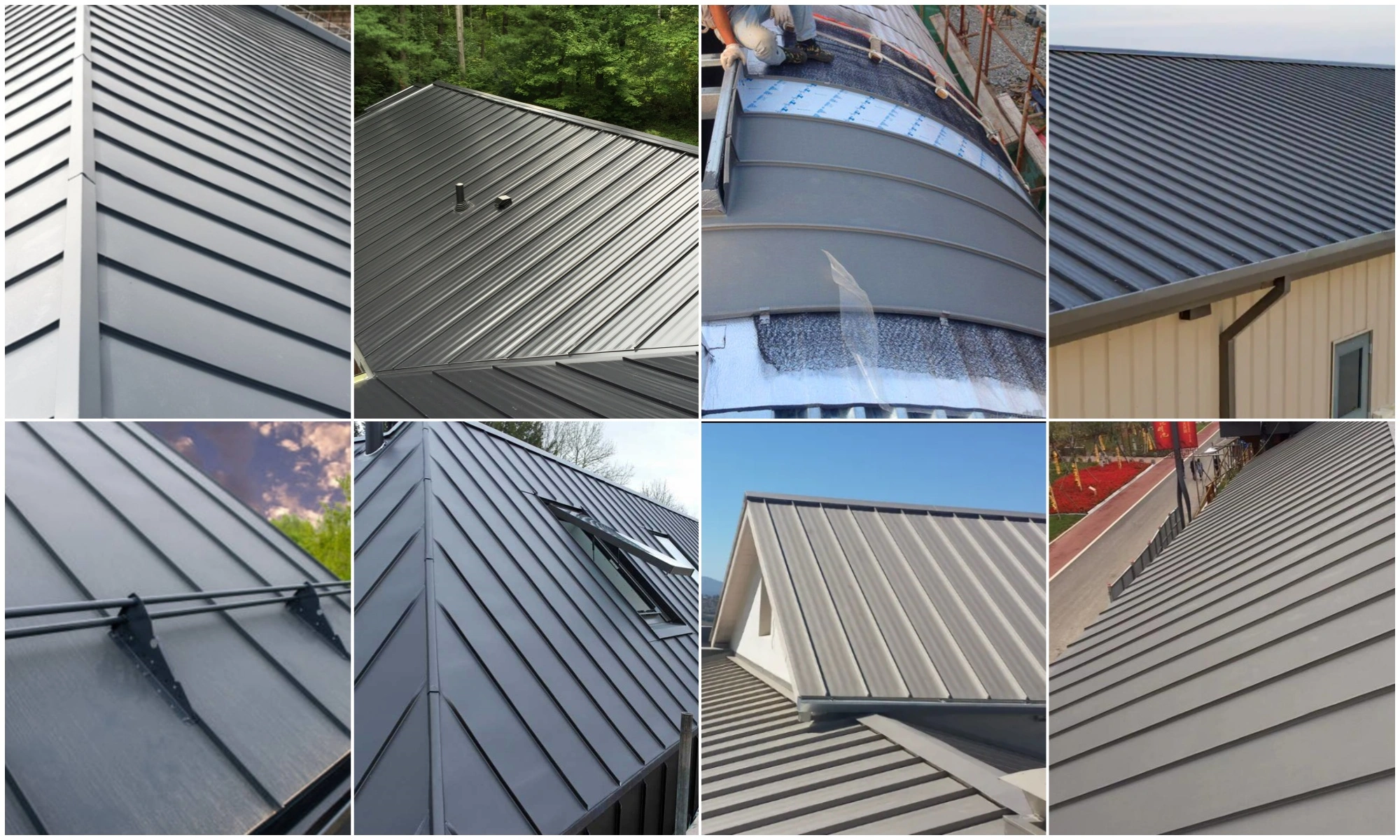

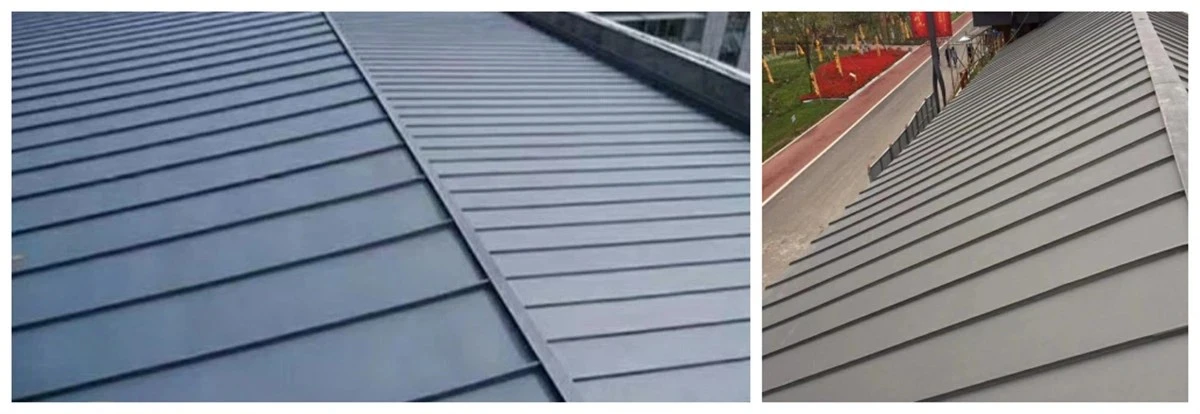

Project Cases
We have successfully completed numerous projects across various industries, showcasing our expertise in striated metal roof panels.
Factory Strength
Our state-of-the-art facilities include 7 raw material production lines and over 20 plate production machines, ensuring high-quality output.
Packaging
We offer secure packaging and efficient transportation solutions to ensure safe delivery of our products.
Qualification Certification
Our products meet international standards and are backed by CE, ISO, and SGS certifications.
FAQ
Q: What is the minimum order quantity for products?
A: Our minimum order quantity is 500 square meters or 1 ton.
Q: How long is the warranty on your products?
A: We offer a 30-year warranty on our panels, ensuring long-term protection and peace of mind.
Q: What is the delivery time for an order?
A: Typical delivery time is 15-20 days, depending on order specifics and quantity.
Q: Can you provide custom colors for the panels?
A: Yes, we offer a wide range of RAL and Pantone colors to suit your project needs.
Q: Are your products suitable for coastal areas?
A: Absolutely. We recommend our aluminum-magnesium-manganese alloy panels with PVDF coating for excellent corrosion resistance in coastal environments.
Contact Us
For Striated Metal Roof Panels inquiries or to discuss your project requirements, please email us at huafeng@hfmetalroof.com.
