Striated Standing Seam Metal Roofing

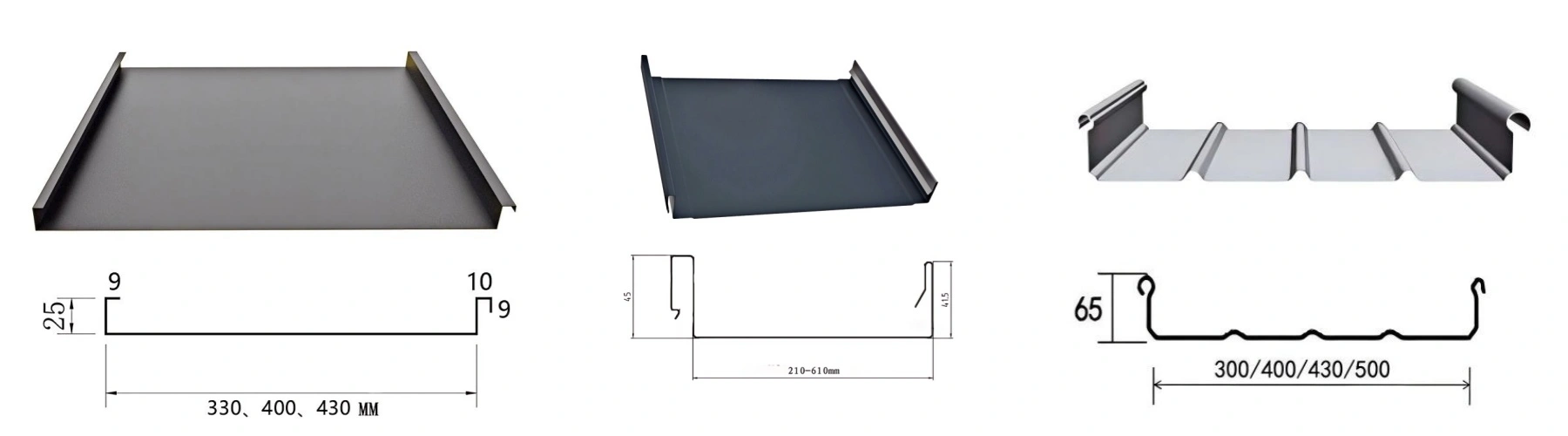

Specifications: 25-330/400/430，32-410,45-400/430/500
Surface treatment: PVDF/PE
3 factories, 7 production lines, more than 40 machines
Thickness: 0.6-1.2mm
Color: A variety of RAL/Pantone colors available
Standards: ASTM, DIN, JIS, BS, GB/T
Supply capacity: 1000 tons/month
Service life: 30 years warranty
Minimum order quantity: 500 square meters/1 T
Delivery time: 15-20 days
Striated Standing Seam Metal Roofing: Durable, Stylish, and Efficient
Xi'an Huafeng Construction Engineering Co., Ltd. is a leading manufacturer and supplier of striated standing seam metal roofing. With our cutting-edge production facilities and years of experience in the field, we offer high-quality material arrangements that are strong, look good, and work well. Our product stands out from the rest because it is very long-lasting, uses little energy, and doesn't get damaged by the weather.
Why choose striated standing seam metal roofing
Aesthetic Appeal
- The textured finish mimics wood grain, slate, or other high-end materials.
- Available in various colors and finishes (matte, glossy, metallic).
- Adds dimension to roofs, reducing the ""flat"" look of smooth metal.
Durability & Strength
- Made from galvanized steel, aluminum, or weathering steel (e.g., Corten).
- Resistant to rust, UV rays, and extreme weather (snow, wind, hail).
- The ridges increase structural rigidity, reducing oil-canning (warping).
Weather Resistance
- Channels water efficiently, minimizing leaks.

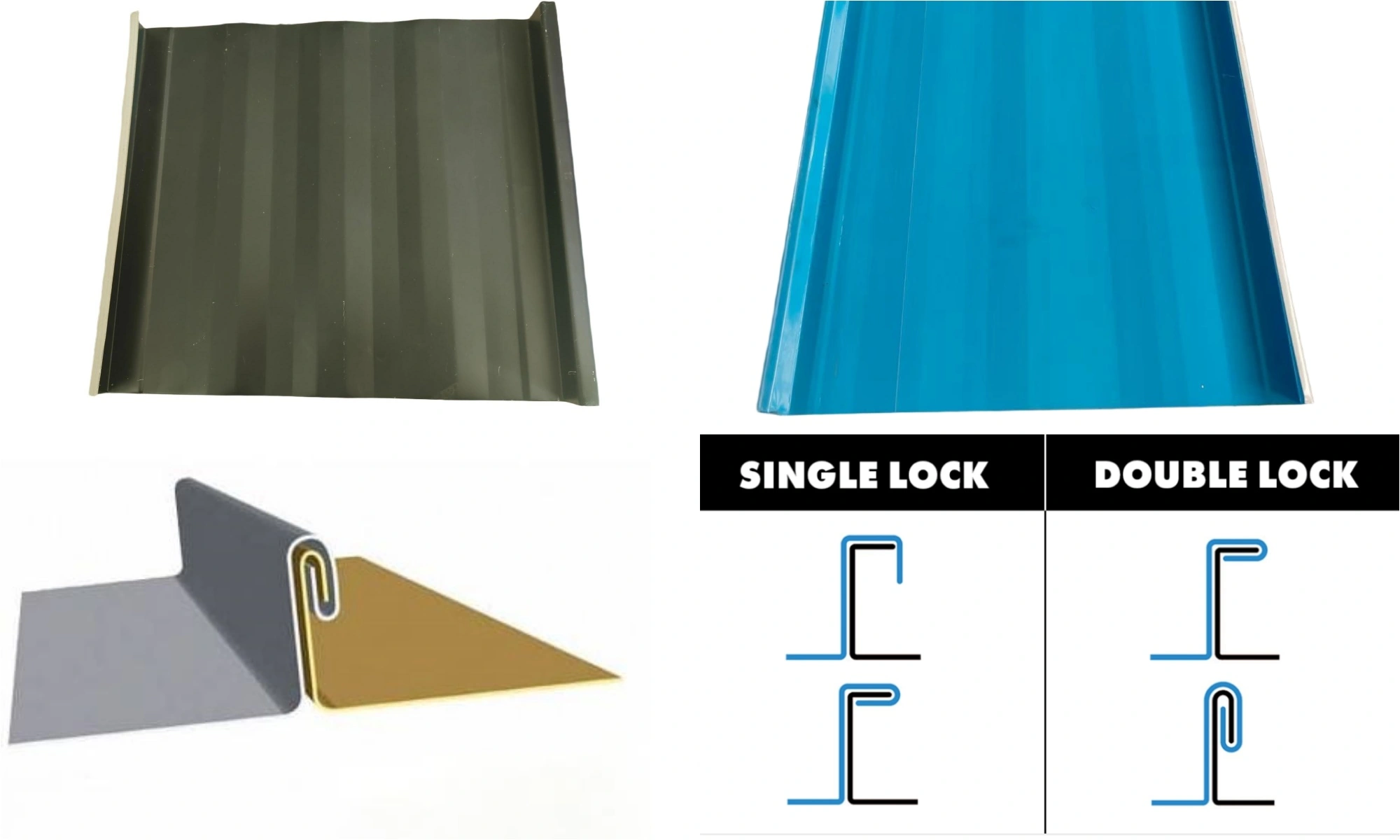

- Some designs include hidden fasteners for a cleaner look and better waterproofing.
Low Maintenance
- Unlike shingles, metal resists mold, rot, and insect damage.
- Requires occasional cleaning but no frequent repairs.
Energy Efficiency
- Reflective coatings can reduce heat absorption.
- Can be paired with insulation for better thermal performance.
Lightweight & Eco-Friendly
- Lighter than tile or slate, reducing structural load.
- Often made from recycled materials and fully recyclable.
Material
| Material | Specifications |
|---|---|
| Galvalume | - 55% aluminum, 43.4% zinc, 1.6% silicon coating (ASTM A792) - Superior corrosion resistance, Affordable |
| Galvanized Steel | - Zinc layer: G60 (0.60 oz/ft²) or G90 (0.90 oz/ft²) (ASTM A653) |
| Aluminum Alloy | - Models: 3003, 3004, or 5052 - Weather-resistant, lightweight, suitable for saline-alkali areas，ideal for coastal areas |
| Copper/Stainless Steel | - High-end option with 50+ year lifespan |
Panel Dimensions
| Panel Dimensions | Specifications |
|---|---|
| Effective Width | 300mm - 600mm (12" - 24") |
| Length | Customized (typically ≤12m) |
| Thickness | 0.4mm - 1.2mm (0.6-0.8mm for residential) |
| Rib Height | 25mm - 45mm (higher ribs offer better wind resistance) |
Surface treatment (Coating)
| Surface Treatment | Specifications |
|---|---|
| Polyester (PE) | Economical, general weather resistance |
| PVDF | UV resistant, high color fastness, 20-30 year color retention |
| SMP | Cost-effective option between PE and PVDF |
| Coating Thickness | Front: 20-25μm (PVDF), Back: 5-10μm (PE) |
Why Choose Us?
- 30 years warranty on our product
- Custom colors available (RAL/Pantone)
- Compliant with ASTM, DIN, JIS, BS, GB/T standards
- 1000 tons/month supply capacity
- Quick delivery: 15-20 days
- Minimum order: 500 square meters/1 T

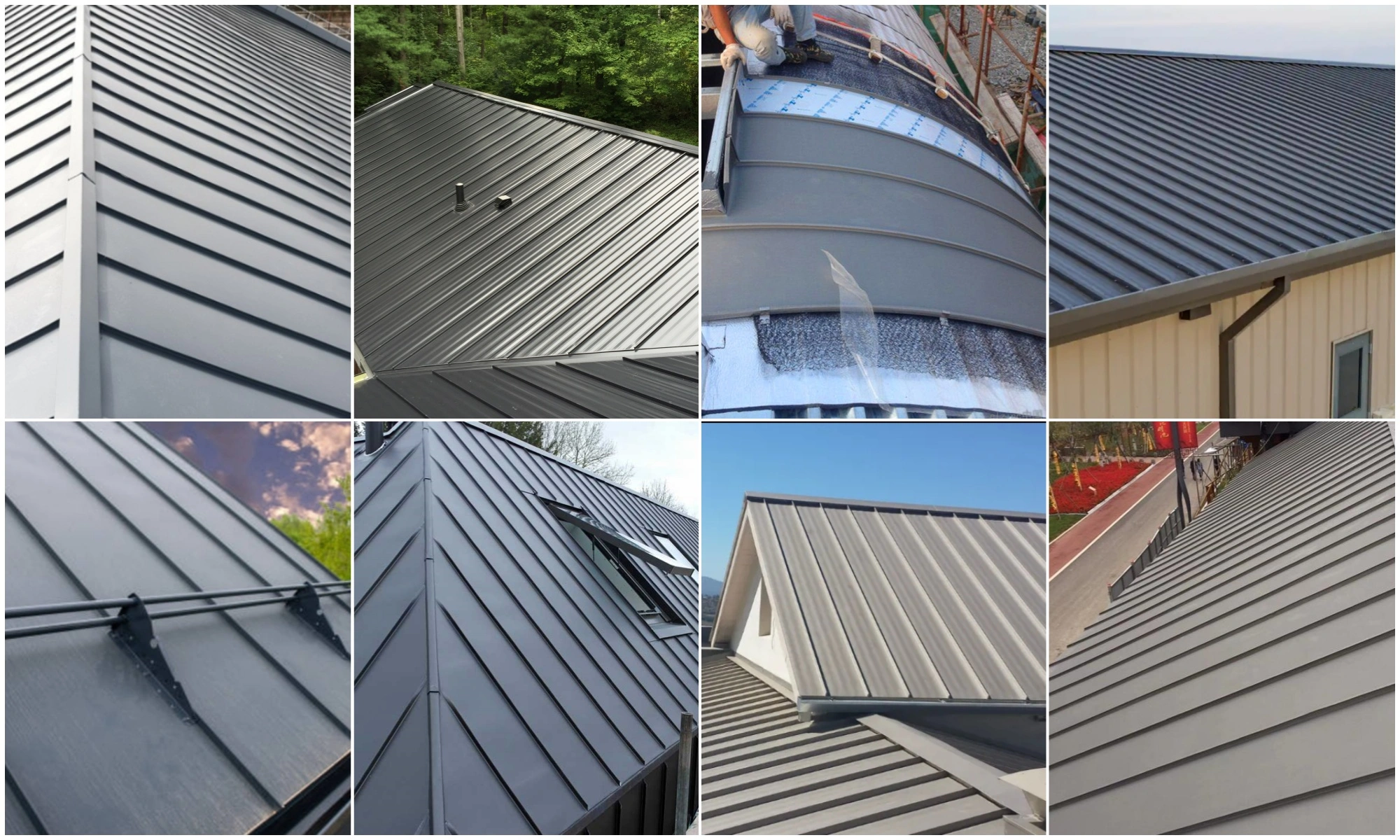

Project Cases
We've successfully implemented our product in numerous high-profile projects worldwide.
Factory Strength
Our three factories house seven production lines and over 40 machines, ensuring top-quality products and timely delivery.
Packaging
We use industry-leading packaging methods to ensure safe transportation of our product.
Qualification Certification
Our products meet international standards and are backed by multiple certifications for quality assurance.
FAQ
Q: What makes the product different from regular metal roofing?
A: The product features vertical grooves that add visual depth and improved water drainage.
Q: How long does the product last?
A: With proper installation and maintenance, it can last 30-50 years or more.
Q: Is the product energy-efficient?
A: Yes, it reflects solar radiation and can be paired with insulation for improved energy efficiency.
Q: Can I install the product myself?
A: We recommend professional installation for optimal performance and warranty coverage.
Q: What colors are available for the product?
A: We offer a wide range of colors to match your architectural needs. Contact us for details.
Contact Us
For inquiries about our striated standing seam metal roofing, please email us at huafeng@hfmetalroof.com.
