Flat Lock Zinc Cladding Panels
Material:Titanium zinc
Shape:Rectangle, rhombus, trapezoid, hexagon
Thickness:0.4mm-1.0mm
Width:300-600mm, can be customized
3 factories&7 production lines&more than 40 machines
Supply Ability：1000 Ton/month
Service life:30-year warranty
MOQ:500㎡/3T
Color: RAL and other customized colors
Standard:ASTM,DIN,JIS,BS,GB/T
Delivery time: 15-22 days
Flat Lock Zinc Cladding Panels: Elevate Your Architectural Vision
Xi'an Huafeng Construction Engineering Co., Ltd. is a leading manufacturer and supplier of flat lock zinc cladding panels. With our state-of-the-art generation offices and broad encounter, we offer premium quality zinc cladding arrangements that combine toughness, aesthetics, and supportability. Our items are outlined to meet the requesting prerequisites of cutting edge engineering, giving a smooth, consistent wrap up that upgrades any building veneer.
Product Introduction
Flat Lock Zinc Cladding is an innovative building cladding system crafted from high-purity zinc alloy (99.995% pure zinc). This system utilizes a unique "Flat Lock" splicing method to achieve a seamless or micro-seam appearance. The zinc material's self-healing properties form a dense zinc carbonate protective layer on the surface, ensuring weather resistance and longevity. With a lifespan of up to 80-100 years, these panels are both environmentally friendly and fully recyclable. The flat lock design imparts a three-dimensional sense and modern aesthetic to building facades, making it suitable for complex curved surfaces or geometric shapes.
Specifications
| Feature | Description |
|---|---|
| Material | Titanium-zinc alloy (Zn-Cu-Ti, 0.1%-1% copper, 0.06%-0.2% titanium) |
| Thickness | 0.7mm–1.0mm (common 0.8mm) |
| Panel size | Customized (typical width 100mm–600mm, length ≤3m) |
| Surface treatment | Pre-passivation, pre-oiling, or pre-weathering |
| Color options | Natural zinc gray, graphite gray, blue gray, black oxidation |
| Fire rating | Class A non-combustible |
Applications
- Building facades: curtain walls, canopies, eaves, roofs
- Cultural landmarks: museums, theaters, art centers
- Commercial spaces: shopping malls, hotels, office buildings
- Historical building restoration
- Special shapes: hyperbolic surfaces, folding facades
Performance Characteristics
| Feature | Performance |
|---|---|
| Weather resistance | UV resistant, -40℃ to 80℃ temperature range |
| Lifespan | 50+ years (25-year maintenance-free cycle) |
| Environmental impact | 100% recyclable, 1/3 energy consumption of copper |
| Corrosion resistance | Salt spray resistant, stable in pH 6-12 environments |
| Maintenance | No painting required, self-cleaning with rainwater |
| Weight | Approx. 5.5kg/m² (0.8mm thick) |
| Acoustic performance | STC≥30dB with sound-absorbing backboard |
Why Choose Us?
- 7 state-of-the-art production lines ensuring consistent quality
- Over 20 patented technologies in metal roofing and cladding systems
- Customizable solutions to meet unique project requirements
- Compliance with international standards (CE, ISO, SGS certifications)
- Experienced engineering team providing technical support and design assistance

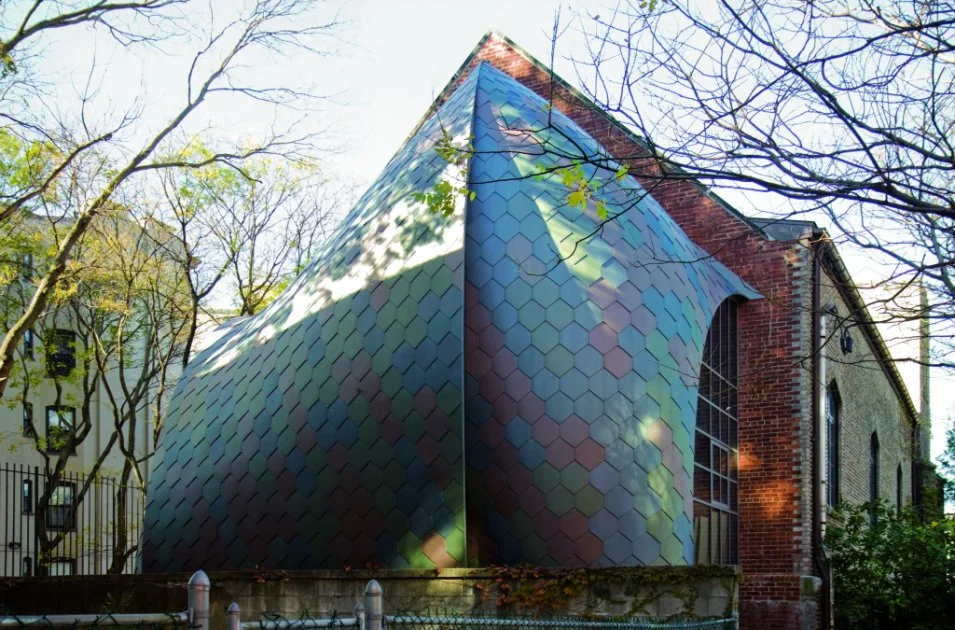

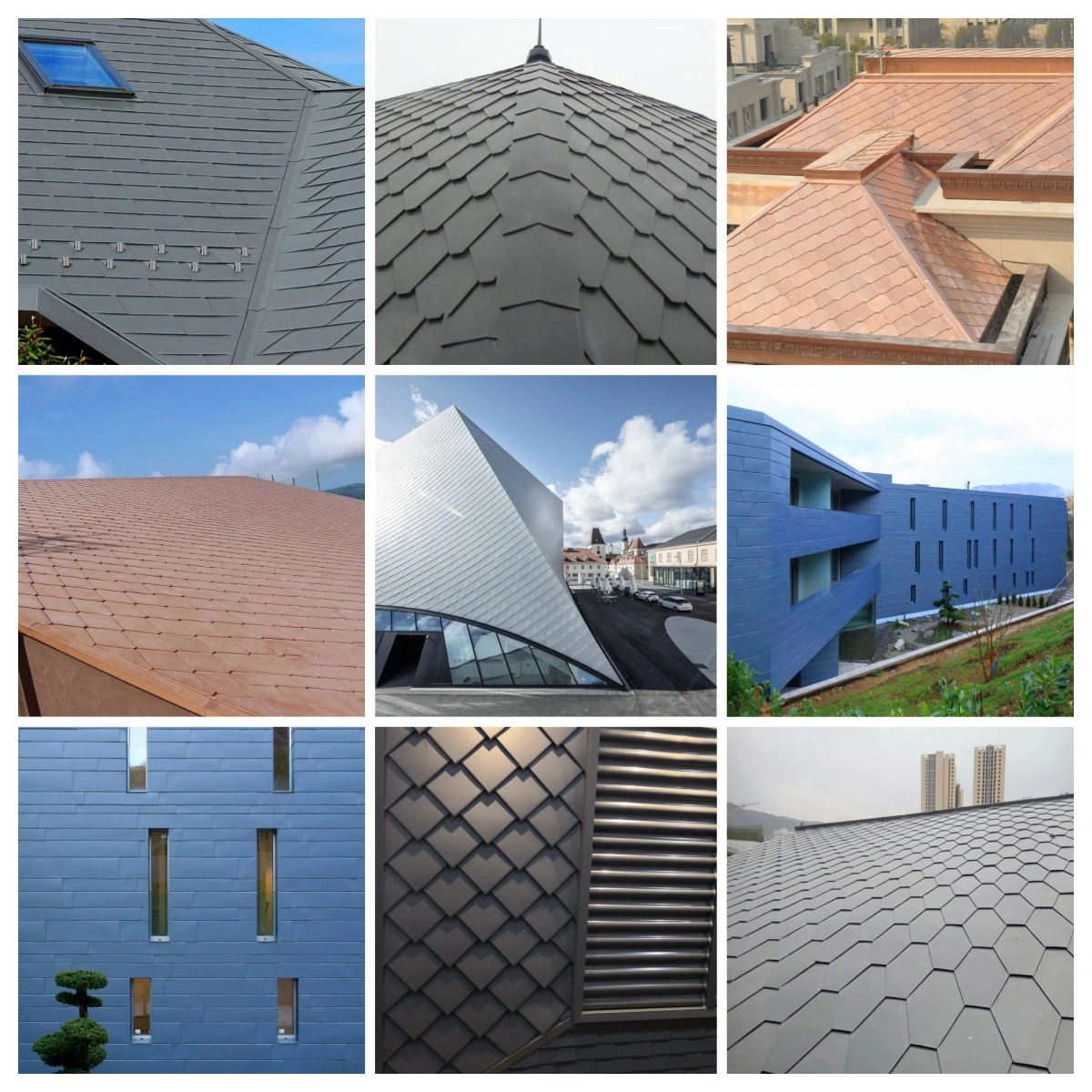

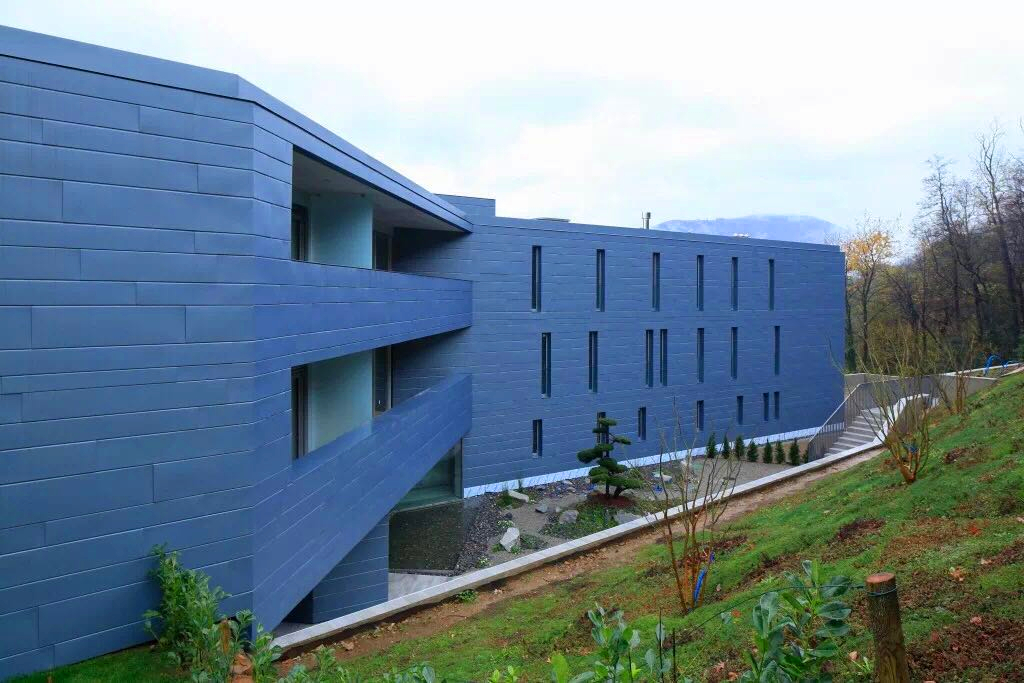

Project Cases
Our flat lock zinc cladding panels have been successfully implemented in numerous high-profile projects worldwide.

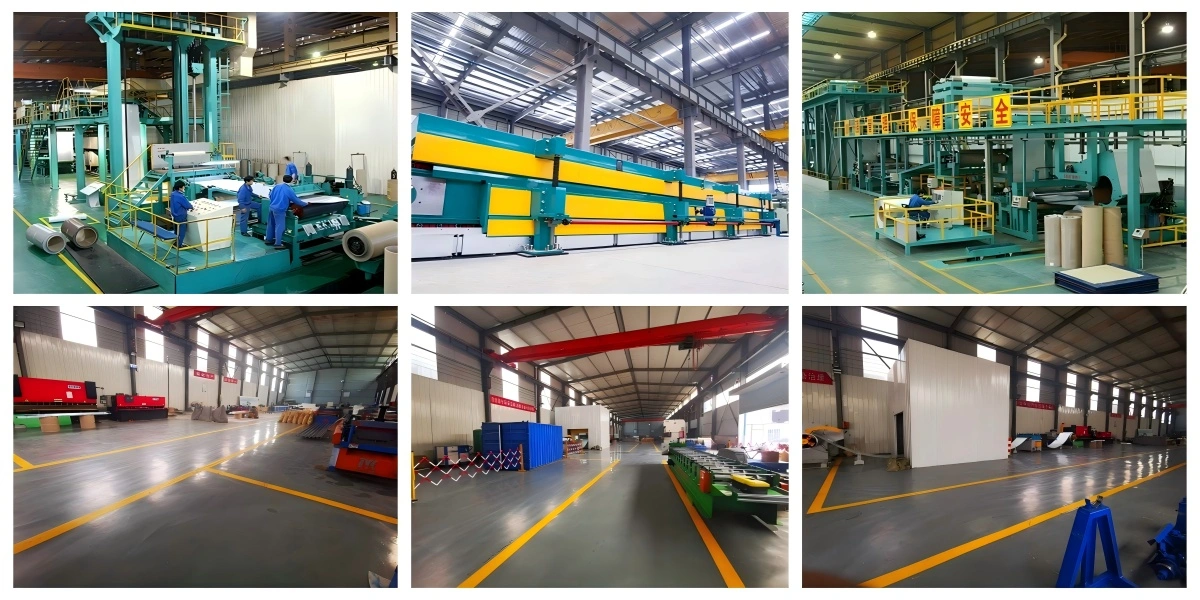

Factory Strength
Our modern facilities boast over 20 advanced plate production machines, ensuring high-quality output and timely delivery.

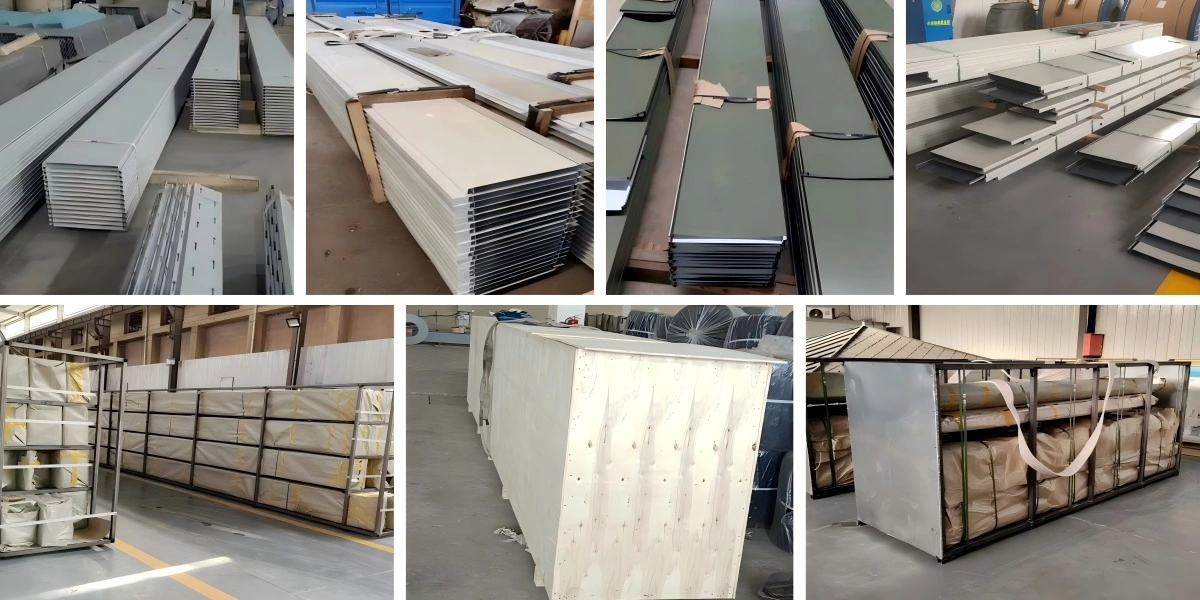

Packaging
We utilize secure, damage-resistant packaging methods and offer flexible transportation options to meet your project needs.
Qualification Certification
Our products are backed by CE, ISO, and SGS certifications, guaranteeing quality and compliance with international standards.
FAQ
Q: What is the minimum order quantity for products?
A: Our minimum order quantity is 500㎡ or 3 tons.
Q: Can you provide custom colors for the zinc panels?
A: Yes, we offer RAL colors and can customize based on your specific requirements.
Q: What is the typical delivery time for an order?
A: Our standard delivery time is 15-22 days, depending on order size and specifications.
Q: Are your products suitable for coastal areas?
A: Absolutely. Our panels offer excellent corrosion resistance, making them ideal for coastal environments.
Q: Do you offer installation services for your cladding panels?
A: While we don't provide direct installation services, we offer comprehensive technical support and guidelines for proper installation.
Contact Us
For Flat Lock Zinc Cladding Panels inquiries or to discuss your project needs, please contact us at huafeng@hfmetalroof.com.
