Zinc Flat Lock Panels
Material:Titanium zinc

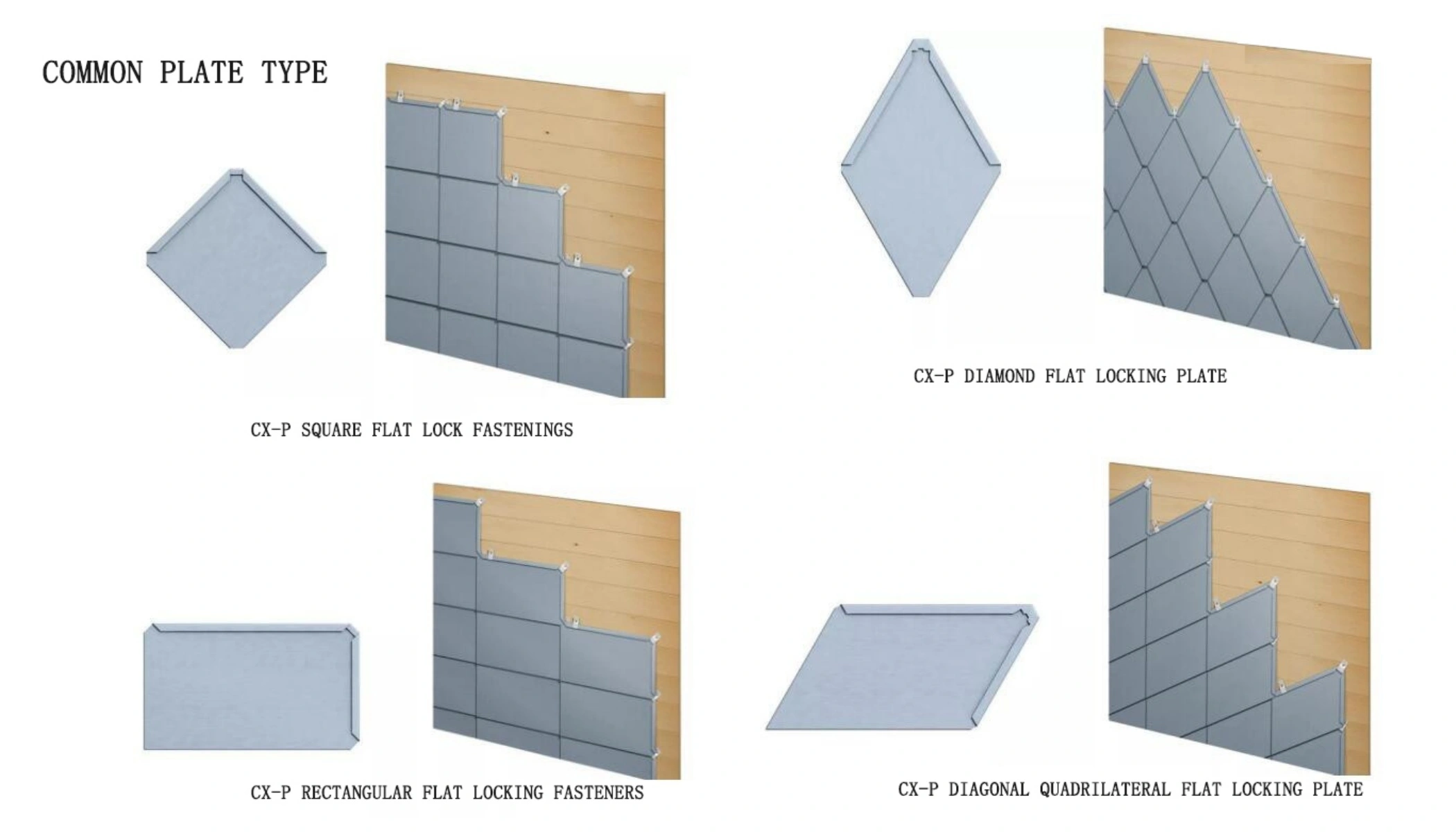

Shape:Rectangle, rhombus, trapezoid, hexagon
Thickness:0.7mm-1.0mm
Width:200-600mm, can be customized
3 factories&7 production lines&more than 40 machines
Supply Ability：1000 Ton/month
Service life:30-year warranty
MOQ:500㎡/3T
Color: RAL and other customized colors
Standard:ASTM,DIN,JIS,BS,GB/T
Delivery time: 15-20 days
Xi'an Huafeng Construction Engineering Co., Ltd.: Your Trusted Zinc Flat Lock Panels Supplier
At Xi'an Huafeng, we specialize in manufacturing high-quality zinc flat lock panels for modern architectural projects. With our state-of-the-art production facilities and expert engineering team, we deliver durable, aesthetically pleasing cladding solutions that meet the highest industry standards. Our commitment to innovation and sustainability makes us the go-to choice for discerning contractors and developers worldwide.
Product Introduction

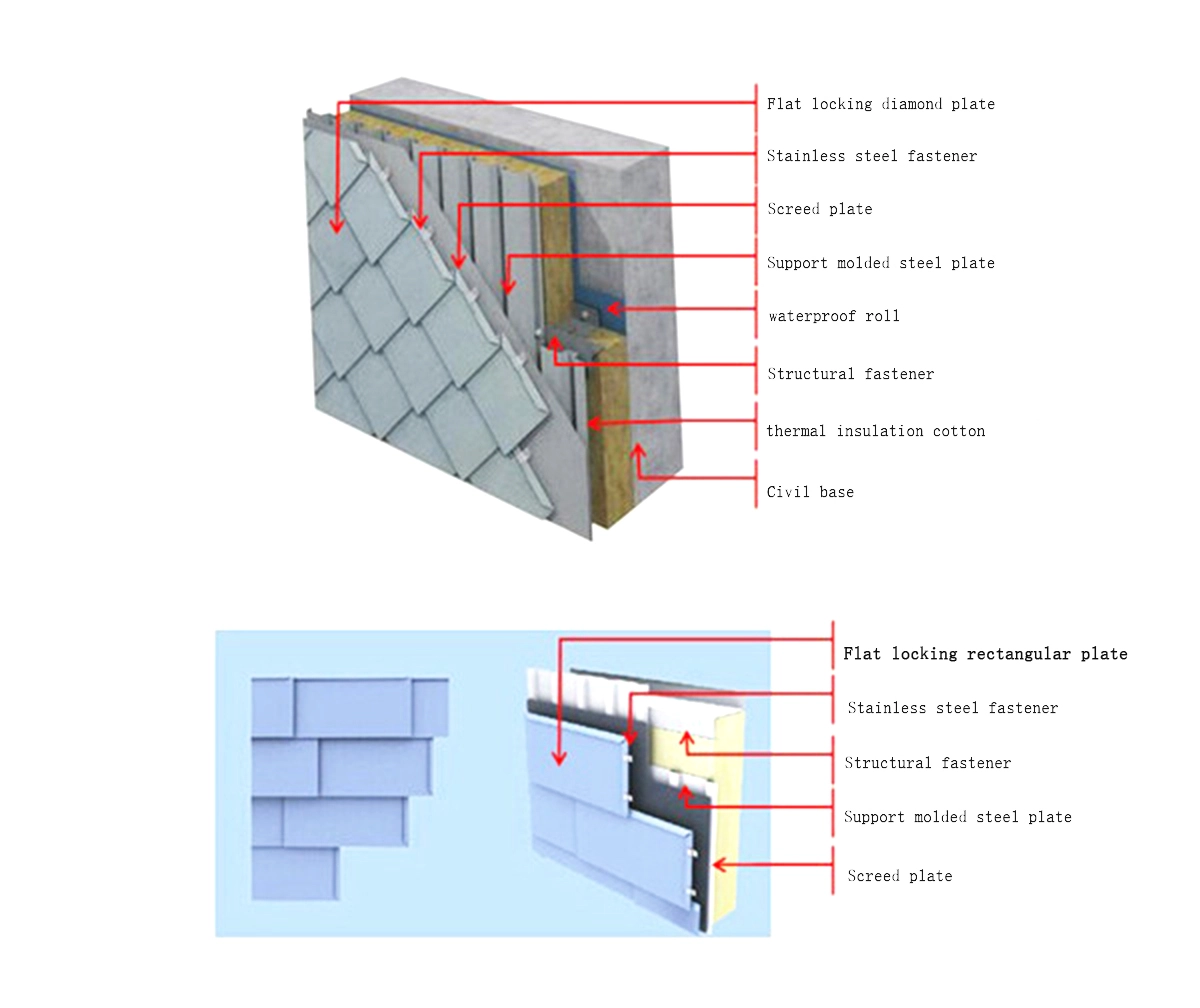

The product is a modern building facade cladding system made of high-purity zinc metal (such as titanium zinc alloy) and fixed by a unique flat lock connection method. This design not only ensures aesthetics, but also enhances waterproofing and structural stability. It is widely used in high-end buildings, cultural venues and commercial projects.
Specifications
| Feature | Details |
|---|---|
| Material | Titanium zinc alloy (99.995% zinc, with titanium and copper) |
| Thickness | 0.7mm-1.0mm (common 0.8mm) |
| Panel size | Customized (width 200-600mm, length as needed) |
| Surface treatment | Natural passivation, pre-oxidation, or coating options |
| Color | Natural zinc gray, pre-weathered blue-gray, black, patina |
| Applications | Building facades, roof systems, cultural landmarks, commercial and residential projects |
| Lifespan | 80-100 years with low maintenance |
| Environmental impact | 100% recyclable, meets green building standards |
| Design flexibility | Suitable for complex geometric shapes |
| Waterproofing | Lock structure + sealing strip double protection |
| Wind resistance | Meets ASTM E330 standards |
| Fire rating | Class A non-combustible material |
Why Choose Us?
- Extensive experience in zinc flat lock panel manufacturing and installation
- Custom solutions tailored to your project's unique requirements
- Rigorous quality control ensuring long-lasting performance
- Competitive pricing and flexible MOQ options
- Comprehensive technical support and after-sales service

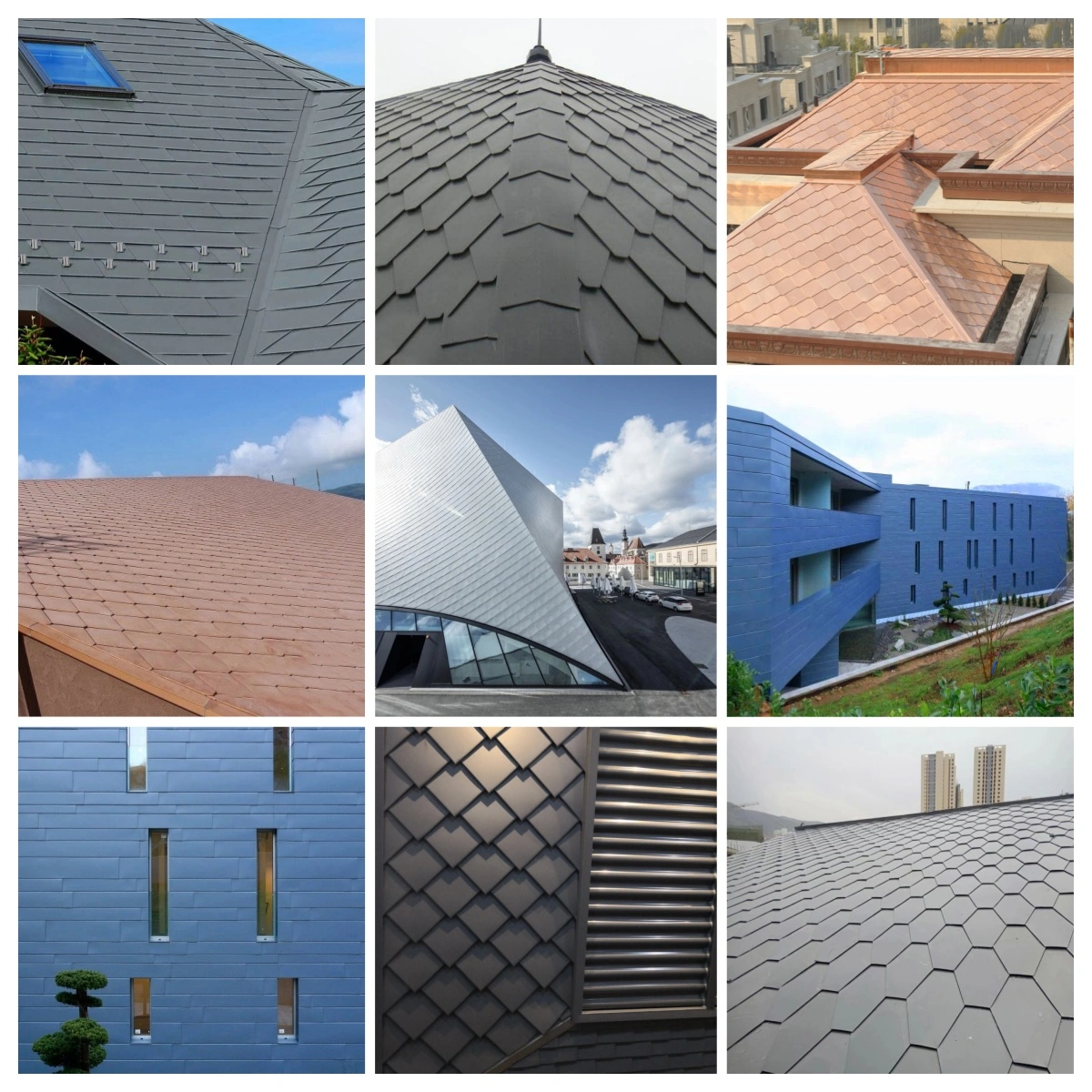

Project Cases
Our zinc flat lock panels have been successfully implemented in numerous high-profile projects globally, showcasing their versatility and durability.
Factory Strength
With three factories, seven production lines, and over 40 advanced machines, we ensure consistent quality and timely delivery for all orders.
Packaging
We use sturdy, protective packaging and partner with reliable logistics providers to ensure your products arrive safely and on time.
Qualification Certification
Our products meet international standards and are backed by ISO, CE, and SGS certifications, guaranteeing quality and compliance.
FAQ
Q: What is the minimum order quantity for products?
A: Our standard MOQ is 500㎡ or 3 tons, but we can be flexible for special projects.
Q: How long does it take to deliver an order?
A: Typical delivery time is 15-20 days, depending on order size and specifications.
Q: Can you provide custom colors for the panels?
A: Yes, we offer RAL colors and can accommodate custom color requests.
Q: What is the warranty on your products?
A: We provide a 30-year warranty on our panels, reflecting our confidence in their durability.
Q: Are your panels suitable for coastal environments?
A: Absolutely. Our titanium zinc alloy panels offer excellent corrosion resistance, making them ideal for coastal applications.
Contact Us
Ready to elevate your next project with our premium zinc flat lock panels? Reach out to our team today at huafeng@hfmetalroof.com for a personalized quote and expert consultation.
