Metal Standing Seam Roofing Panels
Brand:HF
Finishes: PVDF/PE
3 factories&7 production lines&more than 40 machines
Thickness：0.5-1.2mm
Height：25mm
Material Aluminum alloy, steel,stainless steel，copper, titanium zinc
Supply Ability：10000 Ton/month
Service life:30-year warranty
MOQ:500㎡/3T
Color: RAL and other customized colors
Standard:ASTM,DIN,JIS,BS,GB/T
Delivery time: 15-20 days
Metal Standing Seam Roofing Panels: Durable, Versatile, and Aesthetically Pleasing
Xi'an Huafeng Construction Engineering Co., Ltd. is a leading manufacturer and supplier of metal standing seam roofing panels. Our mastery in building plan and development, combined with state-of-the-art generation offices, guarantees top-quality items. We offer customizable arrangements, sponsored by various licenses and certifications, making us a trusted accomplice for Fortune 500 companies and perceiving clients around the world.
Product Introduction

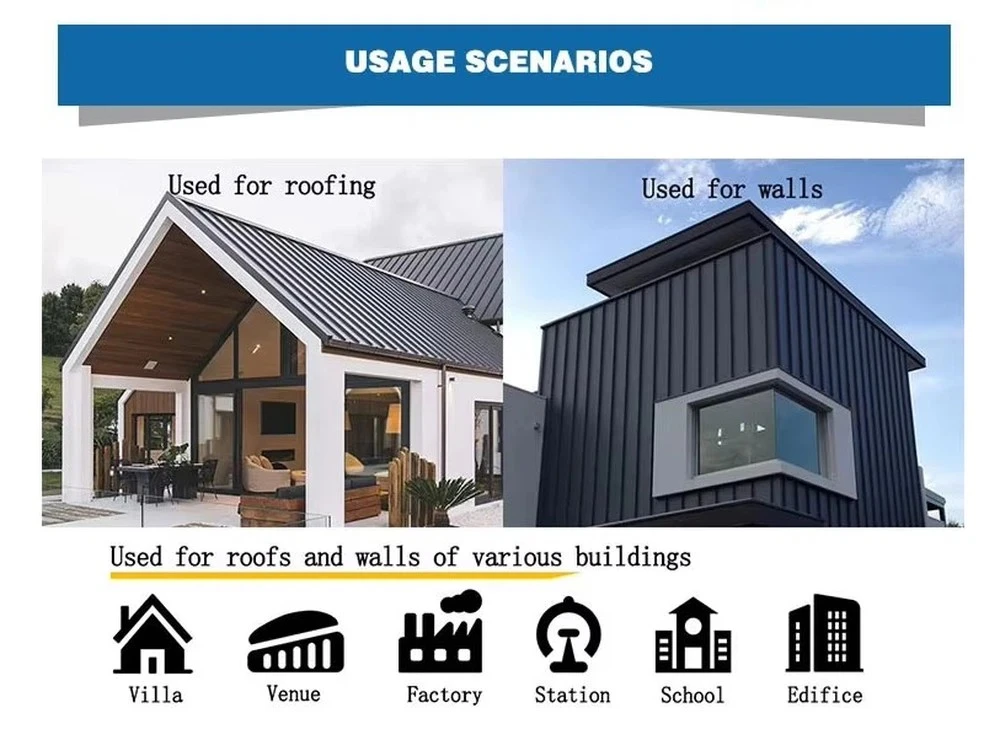

Standing seam metal roof panels are an excellent choice for modern buildings due to their durability, weather resistance, and aesthetic appeal. Their different types, colors, and accessories make them a versatile product that can be used for various applications in residential, commercial, and industrial buildings.
Specifications
| Feature | Description |
|---|---|
| Product Name | Standing seam metal roof panels |
| Material | Aluminum alloy, steel, stainless steel, copper, titanium zinc |
| Thickness | 0.5-1.2mm |
| Height | 25mm (1") |
| Width | 300-500mm (12-20") |
| Standard | 330mm, 400mm, 430mm |
| Panel Length | 1-12m |
| Surface | PVDF coating (≥25um), PE coating (≥18um) |
| Color | RAL colors and other custom colors |

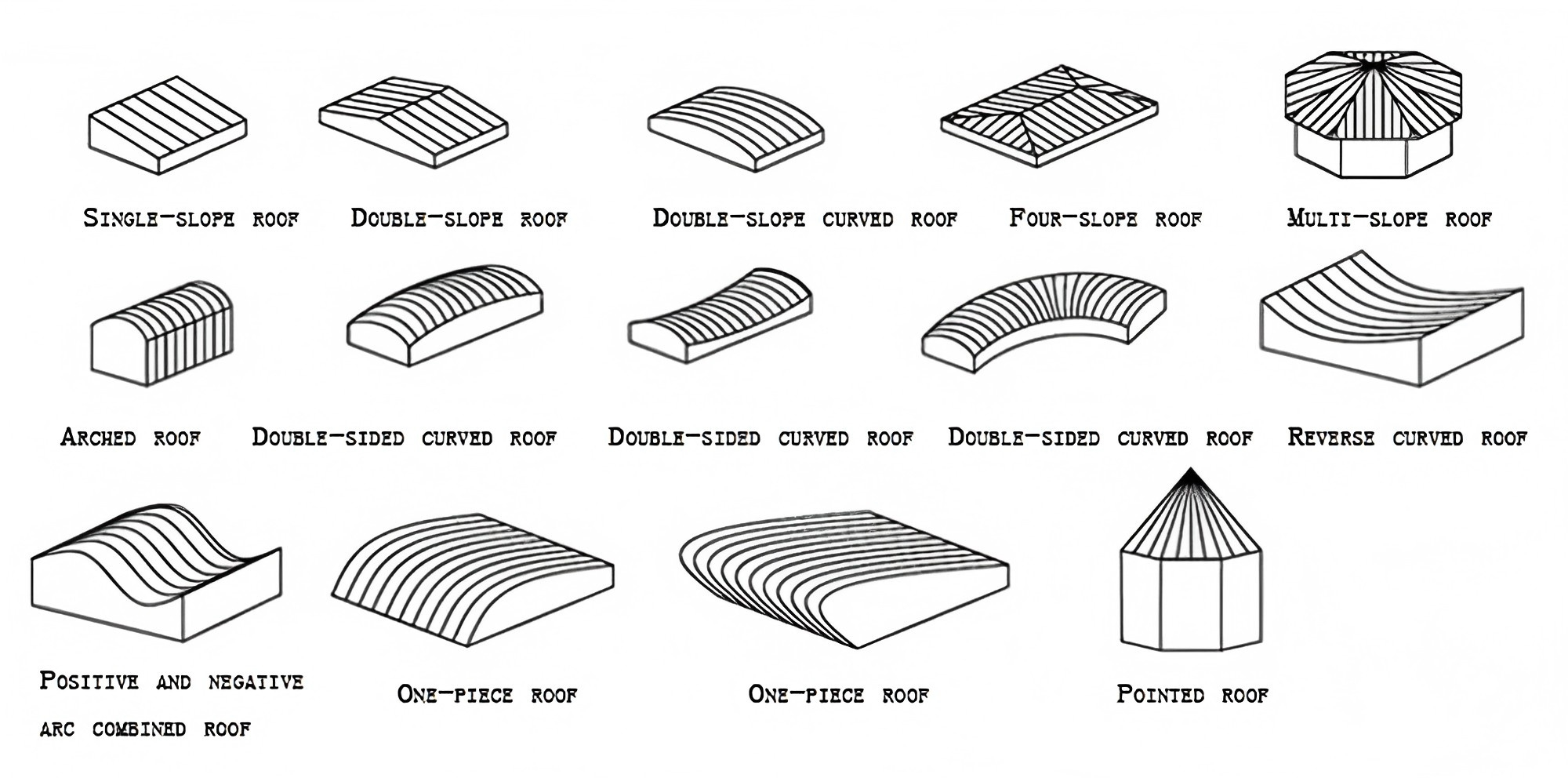

| Shape | Straight plate, straight arc plate, circular arc plate, fan-shaped plate |
Standing seam roofing panel Substrate
- Usually made of aluminum-magnesium-manganese alloy with international grade AA3004, the alloy state is H36/H46. Its yield strength is ≥190 MPa, the tensile strength is 240~285MPa, and the elongation is ≥3%.
- The base material of the edge plate is made of aluminum-magnesium-manganese alloy with international grade AA3004, and the alloy state is H34/H44, with a yield strength of 170MPa, a tensile strength of 220~265 MPa, and an elongation of ≥3%.
The main components (AA3004)
| Si | Fe | Cu | Zn | Mn | Mg | Al |
| ≤0.3% | ≤0.7% | ≤0.25% | ≤0.25% | 1.0%~1.5% | 0.8%~1.3% | The rest |
Why Choose Us?
- Customizable solutions to meet your specific project requirements
- High-quality materials and advanced production techniques
- Extensive experience in engineering design and construction
- Competitive pricing and on-time delivery
- Comprehensive after-sales support and technical assistance

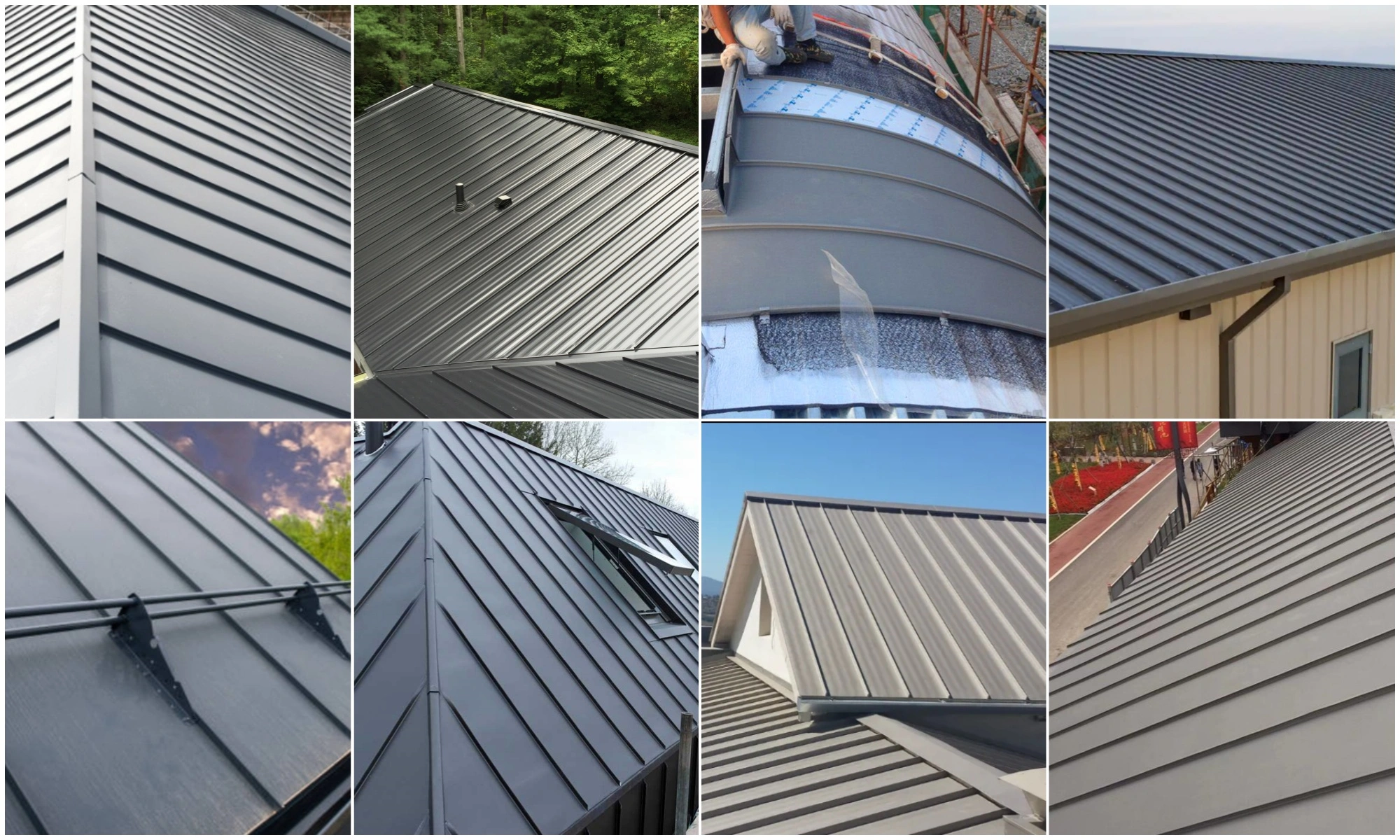

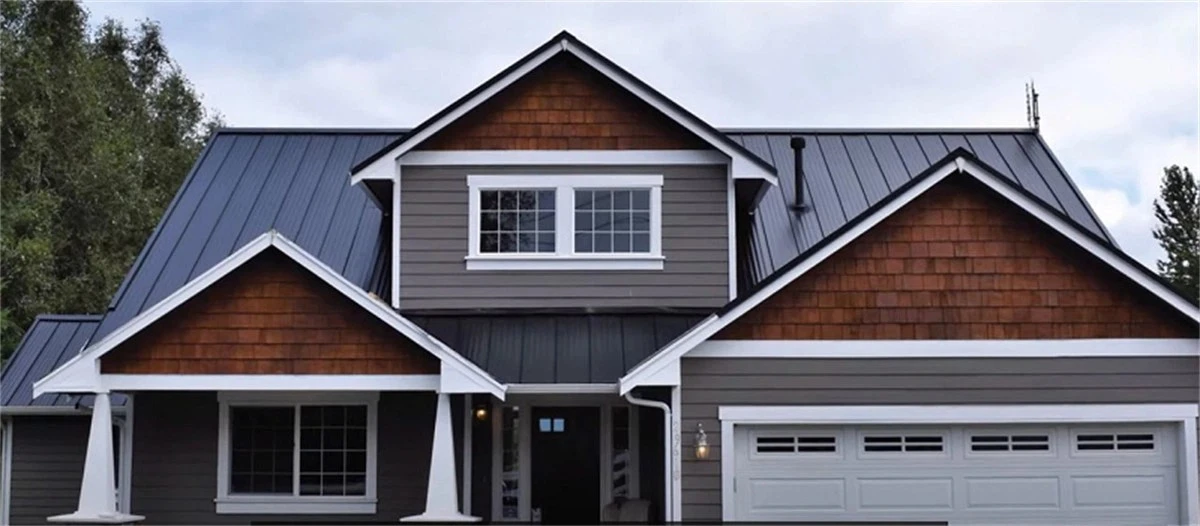

Project Cases
We have successfully completed numerous projects across various sectors, showcasing our expertise in metal standing seam roofing panels.

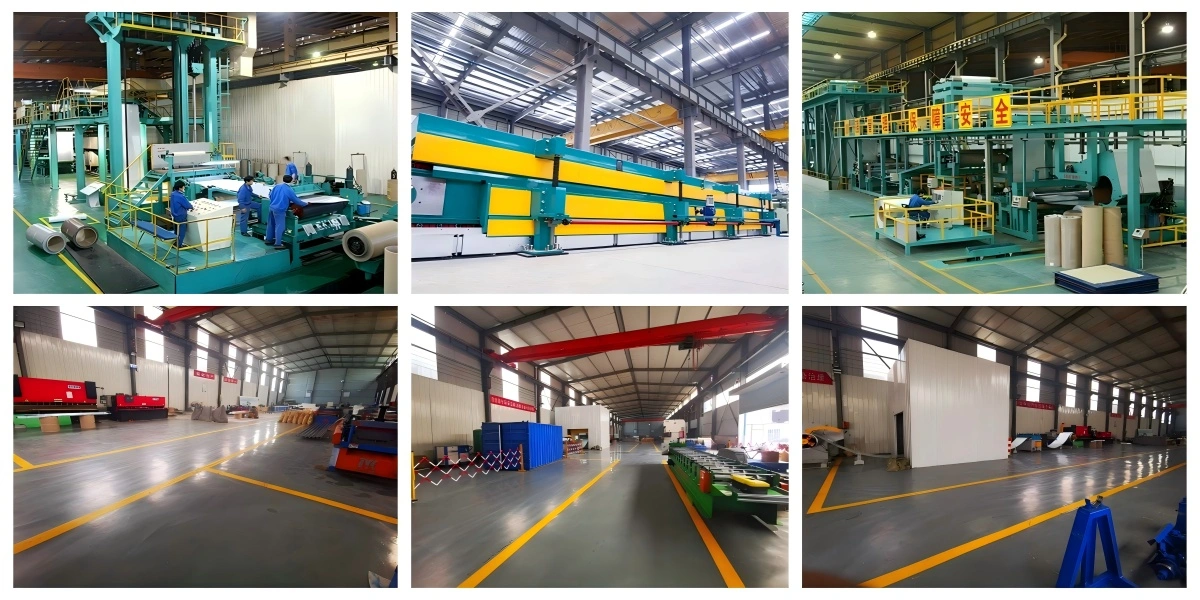

Factory Strength
Our state-of-the-art facilities include 3 factories, 7 production lines, and over 40 advanced machines.

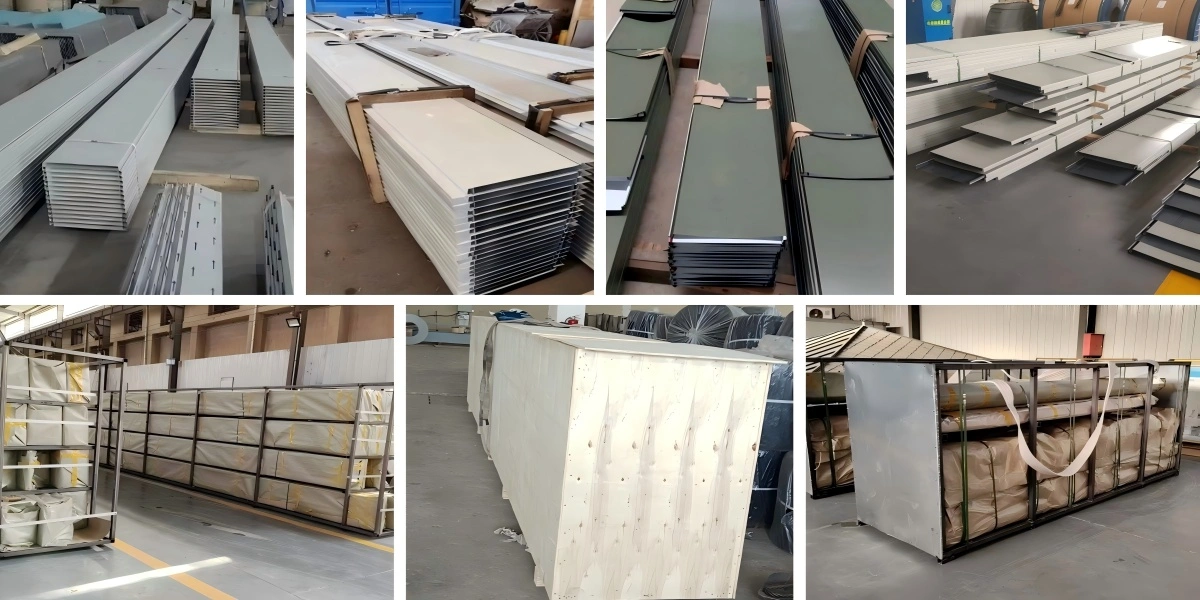

Packaging
We ensure secure packaging and efficient transportation to deliver your products safely and on time.
Qualification Certification
Our products meet international standards and are backed by CE, ISO, and SGS certifications.
FAQ
Q: What is the minimum order quantity for products?
A: Our minimum order quantity is 500㎡ or 3 tons.
Q: What is the typical delivery time for an order?
A: Our standard delivery time is 15-20 days, depending on the order size and specifications.
Q: Do you offer custom colors for the roofing panels?
A: Yes, we offer RAL colors and can accommodate other custom color requests.
Q: What is the warranty period for your products?
A: We provide a 30-year warranty on our products, ensuring long-lasting performance.
Q: Can you assist with installation guidelines for your roofing panels?
A: Absolutely! We provide comprehensive installation guidelines and technical support for all our products.
Contact Us
For more information about our metal standing seam roofing panels or to request a quote, please email us at huafeng@hfmetalroof.com.
