Vertical Standing Seam Metal Cladding Energy Efficiency Explained

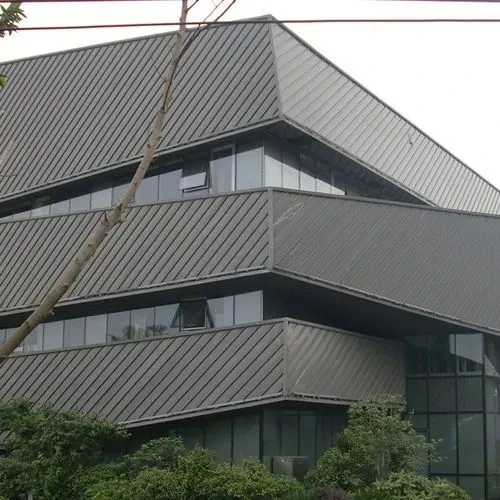

Vertical standing seam metal cladding is a high-performance facade system that uses mechanically locked vertical seams and concealed fasteners to form a continuous, weather-resistant building envelope. Beyond its clean architectural lines, this system delivers real energy efficiency gains. The tightly sealed seam joints limit air infiltration, the metal substrate reflects solar radiation, and the cavity behind the panels accommodates continuous insulation. When specified and installed correctly, a standing seam wall assembly can measurably reduce a building's heating and cooling loads — a priority for contractors, facade designers, and procurement teams working on both new construction and exterior renovation projects.

Understanding Vertical Standing Seam Metal Cladding and Its Energy Efficiency

How the Panel System Works

The method joins metal pieces that are next to each other with a mechanical lock that hides all the fasteners. The lock can be either a single or double fold. This means there are no exposed screws that could come loose, rust, or make holes for water to get in over time. The vertical orientation effectively channels rainwater downward, and the locked seam makes a joint that is almost airtight along the full height of the panel.

Material Choices and Thermal Properties

The choice of substrate has a direct effect on how the heat behaves. Alloys made of aluminum (AA3003, AA3004, AA5052) have a low thermal mass and a high reflectivity. Aluminum-zinc-coated steel (AZ150) makes it even more resistant to corrosion. It doesn't matter what kind of coating you use; PVDF coatings have solar reflectance values above 0.25, which means that many colors are eligible for ENERGY STAR cool roof and wall programs. HDP coatings work well in most weather conditions, while PE coatings are better for projects that won't be exposed to as much weather.

Certifications That Matter

HF's vertical standing seam wall panels meet ISO 9001, ISO 14001, and SGS standards. The PVDF covering passed all 13 performance categories, including UV protection, adhesion (5B grade), and color uniformity (ΔE = 0.3), according to tests done by a third party under AAMA 2605-22. These results show that the coating will stay intact over time, which directly maintains the product's solar reflectance performance over its entire service life.

Key Factors Affecting the Energy Efficiency of Vertical Standing Seam Metal Cladding

Insulation and Moisture Barriers

The vertical standing seam metal cladding panel is not the insulation; it is just the top layer that keeps things safe. Behind it, the real thermal work takes place. The metal surface should be paired with continuous stiff insulation (mineral wool or EPS boards) and a waterproof membrane that lets air pass through. This mix stops thermal bridging and keeps wetness from lowering the insulation's long-term performance.

Thermal Bridging Reduction

When standard cladding systems are attached with through-fasteners, they make thermal bridges, which are direct metal-to-metal transmission lines that pull heat out of the building. In a standing seam exterior, the hidden clip method goes against this. The panel can expand and contract easily with changes in temperature thanks to sliding clips. This keeps the air seal at the joints intact and prevents stress fractures.

Installation Precision

If installation limits are not met, even the best-specified system will lose its efficiency gains. To avoid stress-induced panel waviness and joint gaps, the framing must be straight within L/600. To keep the watertight lock, the seam crimping pressure must stay the same. HF sells complete tool sets that include corners, trim pieces, and fitting clips so that you don't have to improvise in the field, which can lead to air leaks and extra work.

Comparing Vertical Standing Seam Metal Cladding to Other Cladding Options for Energy Efficiency

vs. Corrugated Metal Panels

Corrugated panels have fasteners that are visible and go through the face of the panel. Over time, the gaskets at each fastener point wear down, making ways for air and moisture to get in. The standing seam method gets rid of this failure mode completely, so it stays airtight for the whole life of the system.

vs. Vinyl Siding

When the temperature changes a lot, vinyl siding stretches and shrinks a lot, leaving gaps between the joints. It has a lower fire rating as well. HF's aluminum standing seam panels, on the other hand, did not catch fire in any of the six samples tested under AS/NZS 1530.3:1999, which means they can be used for projects that need Class A fire performance.

vs. Stone or Wood Cladding

Stone and wood covering are hard to keep up and soak up water, which hurts the insulating layers underneath. Vertical standing seam metal cladding wall panels don't have pores, can't be damaged by UV light, and meet EU RoHS limits on dangerous substances (SGS tested, and all 10 substances were found to be below the limits). When painting, sealing, and replacing are taken into account, lifecycle cost modeling always chooses metal cladding over stone or wood.

Procurement Insights: Selecting Energy-Efficient Vertical Standing Seam Metal Cladding

Matching Specifications to Climate Zone

HF has two main profile families. The 25-series (25-330/400/430) has a rib height of 25 mm and is best for areas with mild wind. The 65-series (65-300/400/430/500) has a rib height of 65 mm and is better for areas with high wind loads and extreme weather. If you choose the 65-series with a full insulation cavity, the overall wall U-value will be much lower in colder northern climates. In hot places, PVDF light-color finishes keep the sun from heating up the building.

Evaluating Supplier Reliability

When looking for a vertical standing seam cladding manufacturer, don't just look at the specs in the catalog. Third-party SGS certificates show that HF meets the requirements for AAMA 2605-22 coating performance, RoHS environmental compliance, and burning performance. The 30-year guarantee and monthly supply capacity of 1,000 tons show operating depth. A delivery window of 15–20 days supports project scheduling without the risk of buffer stock.

Procurement Considerations for B2B Teams

Before placing an order for siding, it's important to make sure of the following key buying parameters:

• MOQ: 500 m² minimum order quantity allows small-batch sampling before full project commitment, reducing specification risk.
• Finishes: PE, HDP, and PVDF coating options let procurement teams align finish selection to both budget and performance requirements.
• Customization: Color, pattern, and wood-grain transfer printing are available, so facade designers can achieve the aesthetic without reverting to wood or stone.
• Lead time: 15–20 days from order confirmation supports typical curtain wall sub-contract timelines.

These factors give purchasing managers the information they need to compare providers on an even playing field. Making sure that all the accessories—corners, trim, and clips—are included before the order is finalized keeps contractors from having to do expensive work over and over again on-site, which they always say is the biggest risk of a project.

Maintaining Energy Efficiency: Care and Maintenance of Vertical Standing Seam Metal Cladding

Routine Cleaning and Inspection

Vertical standing seam metal cladding PVDF-coated panels only need to be washed with water and a weak soap every so often to get rid of surface deposits that can make them absorb more sunlight over time. Visual checks of seam integrity and clip state once a year can help find small problems before they spread to the whole system.

Addressing Air Leaks and Moisture Intrusion

If there is moisture behind the facade, which is usually shown by interior condensation or insulation compression, the damaged panel section can be taken off and put back on without affecting the panels next to it. Standing seam systems are useful for focused fixes because they are modular, which saves time and money.

Retrofitting Aging Facades

When replacing old wood or stone cladding on the outside of a building, HF's standing seam panels can often be put up over the existing framing with extra insulation batts. This turns a wall that doesn't do its job well into a modern rain-screen assembly. This method keeps buildings from having to be completely torn down and improves their energy efficiency while also lowering the overall cost of the job.

Conclusion

Vertical standing seam metal cladding helps buildings use less energy by combining three things: airtight mechanical seams that stop air from leaking in, reflective coating finishes that control solar gain, and a cavity structure that lets continuous insulation fit in. The system is better than other types of cladding when it comes to fire resistance, managing moisture, and lifecycle cost. For procurement teams and facade builders, choosing a provider with confirmed certifications, full accessory packages, and written guarantee terms lowers project risk and helps the building perform well in the long term.

FAQ

1. How much energy can a standing seam metal wall system save?

Studies by the Oak Ridge National Laboratory found that properly installed metal wall assemblies with continuous insulation can reduce wall heat transfer by 30–40% compared to standard stud-frame construction. The actual savings depend on insulation R-value, climate zone, and coating reflectance.

2. Which coating color best supports thermal performance?

Light-colored PVDF finishes in white, light gray, or beige achieve the highest solar reflectance values. Darker colors absorb more heat, which can be beneficial in colder climates for passive solar gain. HF's color customization service lets designers select finishes calibrated to project location.

3. What is the expected service life under normal conditions?

HF's vertical standing seam cladding carries a 30-year warranty. Aluminum substrates in non-marine environments typically perform for 40–50 years with standard maintenance. PVDF coatings tested under AAMA 2605-22 retain color and adhesion integrity for the duration of that warranty period.

4. Can panels be ordered in small quantities for a sample mock-up?

Yes. The minimum order quantity is 500 m², which accommodates both sample mock-up panels and small initial project phases. This helps contractors verify color match, panel flatness, and accessory fit before full production.

Get Your Custom Quote from HF — Trusted Vertical Standing Seam Cladding Supplier

Verified and SGS-certified vertical standing seam metal cladding from HF (Xi'an Huafeng Construction Engineering Co., Ltd.) has been used in commercial and industrial projects in North America, Europe, and Australia. HF is ready to help you with your next facade job. They offer PVDF, HDP, and PE finishes, as well as specs for the 25-series and 65-series profiles. They also offer a 30-year promise and a 15–20 day wait time. To get a model or project price, email us at huafeng@hfmetalroof.com.

References

1. Oak Ridge National Laboratory. Thermal Performance of Building Envelope Details for Mid- and High-Rise Buildings. 2011.

2. American Architectural Manufacturers Association. AAMA 2605-22: Voluntary Specification, Performance Requirements and Test Procedures for Superior Performing Organic Coatings on Aluminum Extrusions and Panels. 2022.

3. U.S. Department of Energy, Office of Energy Efficiency & Renewable Energy. Cool Roofs and Walls: Energy Efficiency in Buildings. 2020.

4. ASHRAE. ASHRAE 90.1-2022: Energy Standard for Sites and Buildings Except Low-Rise Residential Buildings. 2022.

5. National Institute of Building Sciences. Whole Building Design Guide: Metal Wall Panels. 2019.

6. Metal Construction Association. Metal Wall Systems Design Guide. 2018.
