Vertical Standing Seam Metal Cladding
Specifications: 25-330/400/430，65-300/400/430/500
Finishes:PE, HDP,PVDF COATING
Supply Ability：1000 Ton/month
Service life:30-year warranty
MOQ:500㎡
Delivery time: 15-20 days
Provide customized services: color, pattern, design customization
Standard:ISO9001, ISO14000:14001,SGS guidelines
Vertical Standing Seam Metal Cladding: Durable, Elegant Building Facades
Xi'an Huafeng Construction Engineering Co., Ltd. is a leading manufacturer and supplier of vertical standing seam metal cladding. Our inventive framework combines quality, aesthetics, and flexibility for advanced building envelopes. With over 20 protected innovations and ISO certifications, we provide predominant quality and execution. Our item offers unmatched toughness, climate resistance, and plan adaptability for large-scale commercial and mechanical ventures.
Product Introduction

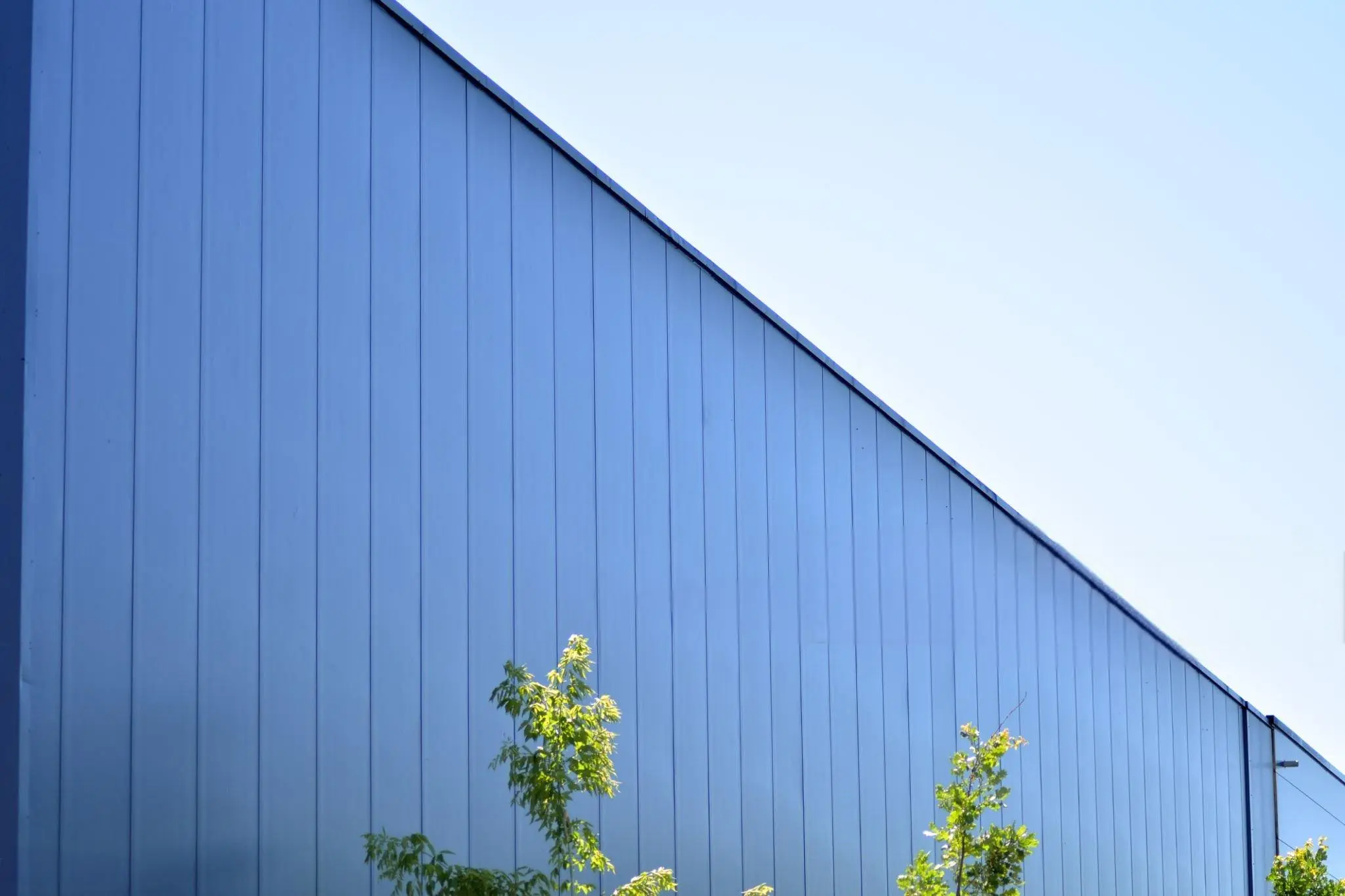

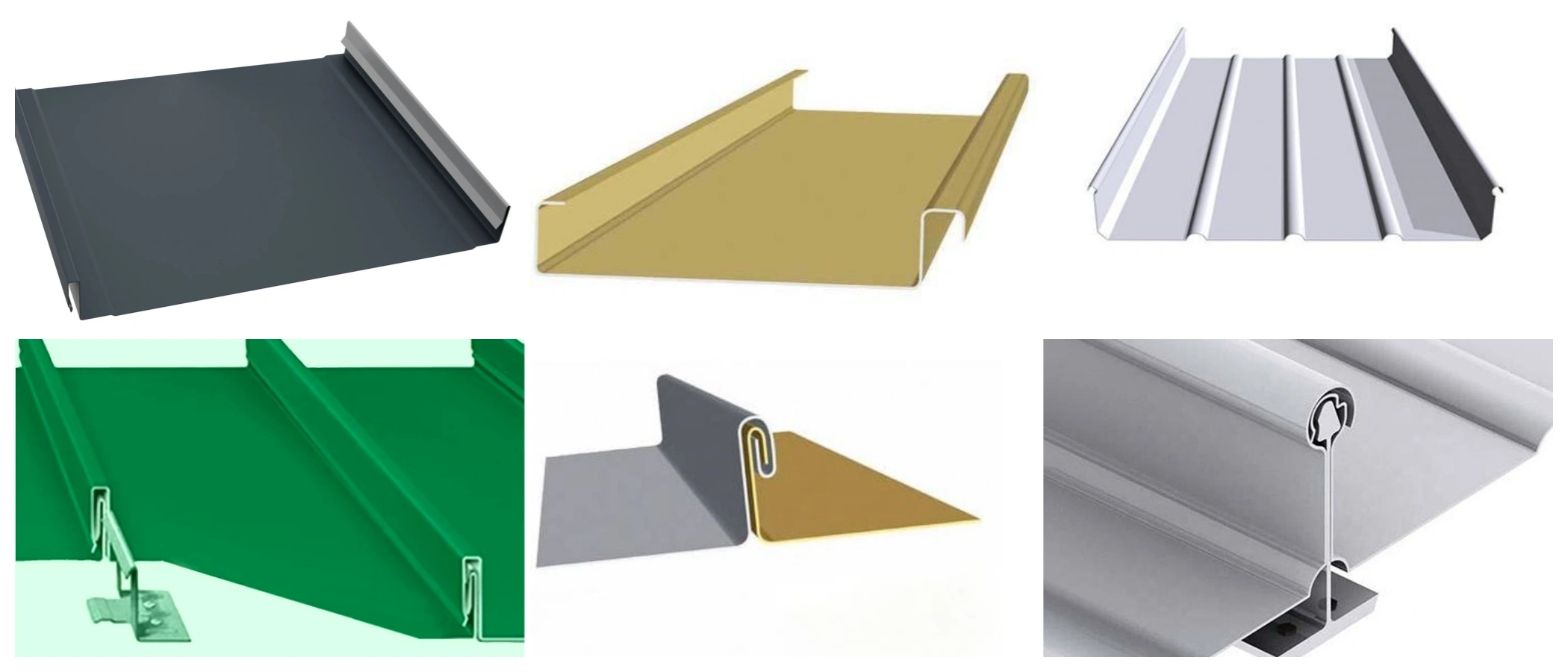

Vertical Standing Seam Cladding is a high-performance metal enclosure system that uses vertical locking technology to connect adjacent metal panels by mechanical locking to form a continuous, waterproof and durable building facade covering. This system is widely used in modern buildings, combining beauty and functionality, and is suitable for large spans, curved surfaces or special-shaped structures.
Specifications
| Feature | Details |
|---|---|
| Material type | Aluminum alloy (AA3003/AA3004/AA5052), aluminum-zinc-coated steel sheet (AZ150), stainless steel, copper |
| Coating | PVDF, PE, HDP |
| Plate width | 400mm–600mm (customizable 300mm–800mm) |
| Plate thickness | 0.7mm–1.5mm (aluminum), 0.4mm–1.2mm (steel) |
| Rib height | 25mm–65mm |
| Standard length | Up to 12m+ |
| Strength | Large spans up to 10m without support |
| Wind resistance | ≥3.0kPa (typhoon-level) |
| Thermal adaptation | Sliding connection allows expansion/contraction |
| Waterproofing | Double bite lock edge, hidden drainage |
| Fire rating | Class A (EN13501-1) |
| Durability | 30–50 years service life |
| Installation | Quick modular design, hidden clamps |
| Flexibility | Minimum bending radius ≥15m |
| Applications | Building roofs, facades, industrial facilities |
Why Choose Us?
- 20+ years of engineering expertise in metal cladding systems
- State-of-the-art production facilities with 7 raw material lines
- Customizable solutions to meet unique project requirements
- Comprehensive technical support and installation guidance
- Strict quality control with ISO and SGS certifications

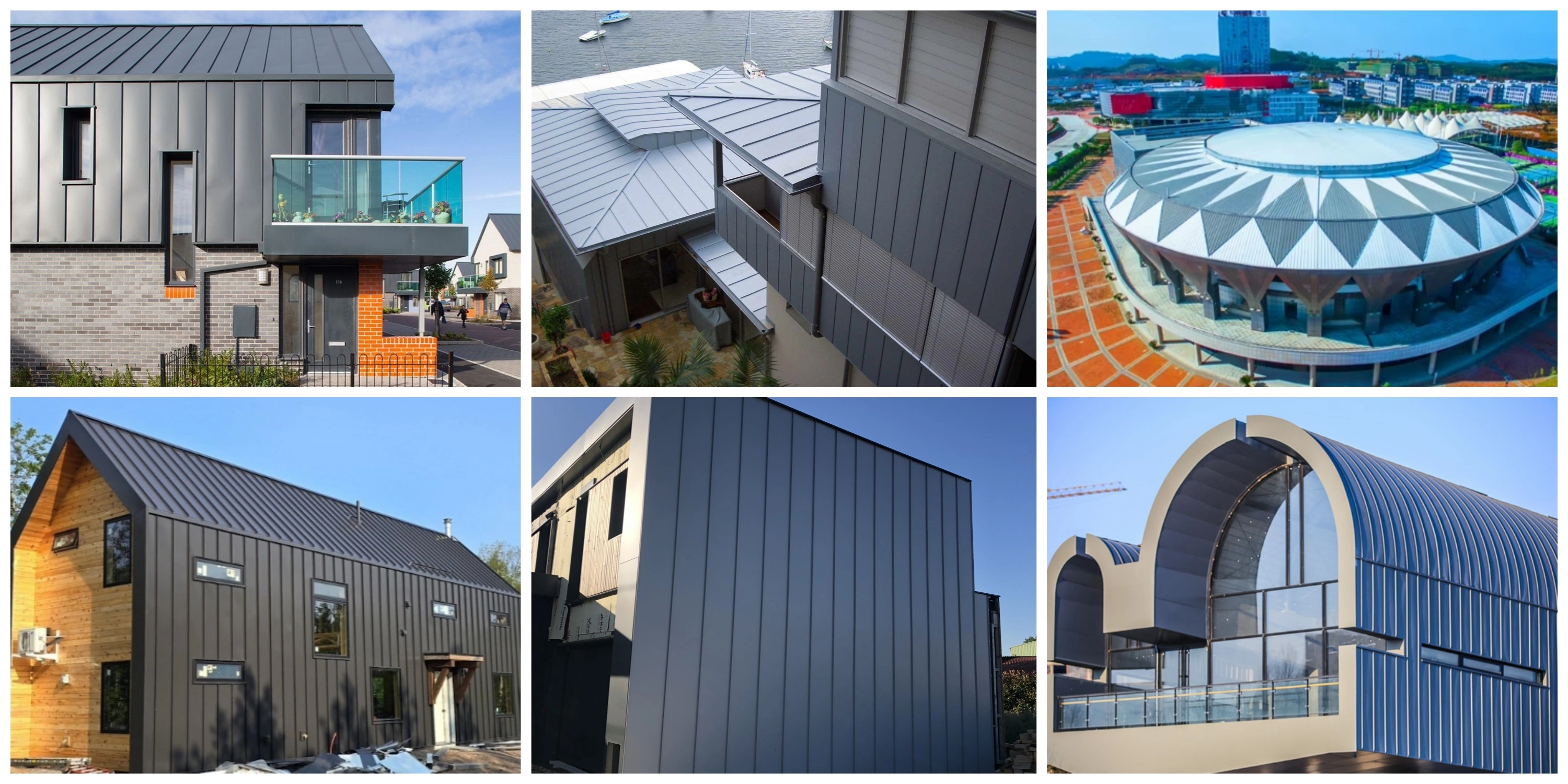

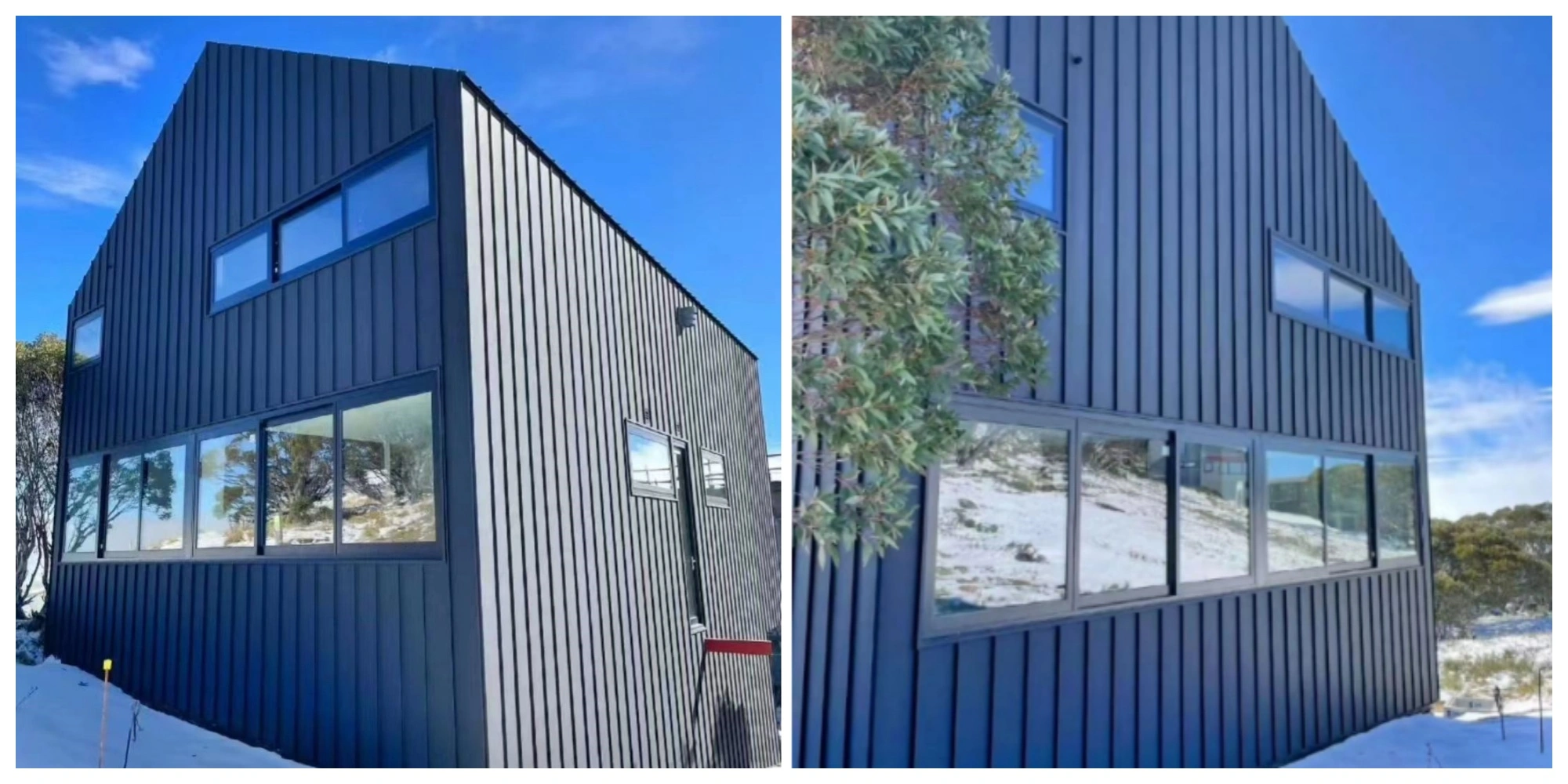

Project Cases
We've successfully completed vertical standing seam metal cladding projects for Fortune 500 companies worldwide.
Factory Strength
Our advanced manufacturing facility houses over 20 plate production machines for high-volume output.
Packaging
We ensure secure packaging and timely delivery to meet your project deadlines.
Qualification Certification
Our products meet international standards with CE, ISO, and SGS certifications.
FAQ
Q: What is the minimum order quantity (MOQ)?
A: Our MOQ is 500㎡ for the product.
Q: Can you provide custom colors or designs?
A: Yes, we offer customization services for colors, patterns, and designs.
Q: What is the typical delivery time?
A: Standard delivery time is 15-20 days, depending on order volume.
Q: Do you offer installation services?
A: We provide detailed installation guidance, but on-site installation is typically handled by local contractors.
Q: What warranty do you offer?
A: We provide a 30-year warranty on our product systems.
Contact Us
For Vertical Standing Seam Metal Cladding inquiries or to discuss your project needs, please email us at huafeng@hfmetalroof.com.
