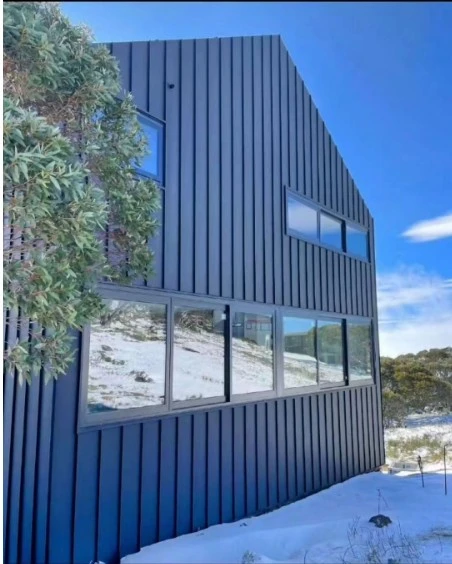

Vertical Standing Seam Metal Cladding: Complete Design Guide

If you're specifying or sourcing metal wall panels for a commercial facade project, vertical standing seam metal cladding deserves a close look. This system connects adjacent metal panels through mechanical interlocking seams that run continuously from base to parapet, forming a watertight, low-maintenance building envelope. Architects prize its clean vertical lines; contractors value its hidden-fastener installation logic. In this guide, I'll walk through how the system works, how to install it correctly, how it compares to alternatives, and what to look for when buying at scale.

Understanding Vertical Standing Seam Metal Cladding

Core Structure and How the System Works

Each panel has edges that are turned up and lock into the next panel, either with a snap-lock connection or a double-fold seam that is crimped by a machine. Fasteners are totally hidden inside the seam, so screw heads that are left out in the open can't rust or let water in over time. So, the facade has a smooth, continuous surface with no holes in the panel's face.

Material Options and Their Trade-offs

Aluminum alloy (AA3003, AA3004, AA5052) is the most popular material for facade uses because it has a high weight-to-strength ratio and doesn't rust naturally. Aluminum-zinc-coated steel (AZ150) has a higher tensile strength and a lower cost, making it a good choice for longer spans. Copper and stainless steel are used in high-end or historic projects where a patina over time is part of the design. For architectural-grade UV resistance, PVDF (polyvinylidene fluoride) is the best coating to go with the substrate. HDP (high-durability polyester) is better for mid-range budgets, and standard PE (polyester) is better for applications that are next to each other inside. To stop capillary draw, horizontal lap systems need careful finishing at each overlap. Vertical orientation also cuts down on the number of field joints needed for walls higher than three stories, which saves time on the job site. Panel width, which is usually between 300 mm and 600 mm, becomes the main esthetic control when a building design calls for strong shadow lines or a certain rhythmic pattern.

Vertical vs. Horizontal Seam Configurations

Vertical seams shed water by gravity without relying on sealants. Horizontal lap systems require careful detailing at each overlap to prevent capillary draw. For facades taller than three stories, vertical standing seam metal cladding orientation also reduces the number of field joints, which directly cuts labor time on site. Where a building design calls for strong shadow lines or a specific rhythmic pattern, panel width—typically 300 mm to 600 mm—becomes the primary aesthetic control.

Design and Installation Best Practices

Key Design Considerations Before Ordering

The structural framing has to be straight and plumb within an L/600 tolerance. Any out-of-plane movement above this level will cause stress to be transferred to the flat panel face, creating a noticeable wave pattern called oil canning. You can lessen this effect by choosing stronger gages (0.9 mm or more for aluminum) or adding lengthwise stiffening ribs. Ordering panels from the same production batch is the only way to make sure that the colors on a big facade are all the same. Confirming batch-matched supply with your seller before awarding the contract is a useful step that stops color variation disputes.

Step-by-Step Installation Overview

Here is a step-by-step guide that experienced facade contractors follow on the job site:

• Surface and framing check: Verify that substrate framing is plumb, level, and structurally adequate before any panel work begins. Out-of-tolerance framing cannot be corrected after cladding is installed.
• Clip installation: Fix concealed sliding clips to the framing at the manufacturer's specified spacing. Sliding clips—distinct from fixed clips—allow the panel to move axially during thermal cycling without buckling or fatigue at the fastener point.
• Panel placement and seaming: Engage the female leg of each panel over the male leg of the previous panel, then crimp or snap-lock the seam. Factory-applied sealant inside the female leg activates during seaming to form the primary water barrier.
• Trim and accessory fitting: Install corner trim, window reveals, base flashings, and parapet caps as a continuous system. Accessory gaps are the most common source of post-installation callbacks, so verify that all trim profiles are specified and ordered before installation begins.

The guarantee and the installation plan are both protected by doing things in this order.

Maintenance That Protects Long-Term Performance

Check the vertical standing seam metal cladding seams for damage once a year, make sure the moving clips can move easily, and clean off the base flashings. A mild detergent solution can be used to clean PVDF-coated panels. Be careful not to use rough pads that can cut through the coating. Fixing small sealing problems at trim joints during the first check cycle stops water from getting deeper into the wall assembly.

Comparing Vertical Standing Seam Metal Cladding to Other Cladding Solutions

Metal Wall Panels vs. Brick and Stone

Brick and natural stone have much higher fixed weights, which means that structures need to be strengthened and building takes longer. Brick veneer weighs 90–120 kg/m², while metal panel systems weigh about 3–5 kg/m². When building owners replace old masonry walls with metal ones, the lighter material often makes the switch structurally sound, even before the difference in upkeep costs is taken into account.

Metal Wall Panels vs. Vinyl Siding and Corrugated Sheet

Vinyl flooring breaks down when it is exposed to UV light for a long time and doesn't work well in high temperatures, which happen a lot in North America. Corrugated metal sheet has exposed fasteners that need to be checked and re-torqued every so often. Standing seam gets rid of both of these problems. It also does not behave the same way in a fire. Products made of aluminum panels that are tested under AS/NZS 1530.3 and EN13501-1 get Class A grades, which vinyl cannot beat.

Vertical vs. Horizontal Seam: Cost and Performance

Horizontal seam systems may have a slightly lower panel cost, but vertical orientation usually cuts down on the total number of linear meters of seam per project. This lowers the cost of the panels by making the seaming work cheaper. When the full cost of work is taken into account, vertical seam systems usually have a lower fixed cost per square meter for facades that are taller than 8 meters.

Procurement and Supplier Insights for B2B Clients

Pricing Structure and What Drives It

The cost of a panel depends on the type of substrate used, the coating, the rib profile, and the number of panels ordered. A PVDF coating costs more than a PE or HDP coating, but it lasts 30 to 50 years longer, based on how it is exposed. When people order PVDF panels at the start, they usually don't have to go through the expensive recoating process that PE-coated panels usually need every 15 to 20 years in harsh climates.

Evaluating Suppliers: What to Verify

When looking for a vertical standing seam metal cladding supplier, the following things can help you tell the difference between good makers and wholesalers who don't control production:

• Quality certifications: ISO 9001 (quality management) and ISO 14001 (environmental management) indicate that production processes are audited and documented. SGS-certified test reports for coating adhesion, chemical resistance, and fire performance provide independent verification.
• Coating standard compliance: AAMA 2605 certification for PVDF coatings confirms the product meets the benchmark North American architects write into facade specifications. All 13 performance items—including dry adhesion (5B), coating flexibility (0T, no cracking), and nitric acid resistance—must pass independently.
• Custom capability and MOQ: A supplier able to accommodate 500 m² minimum order quantities and provide color, pattern, and profile customization is better positioned to serve project-specific requirements without forcing stock substitutions.
• Lead time and supply capacity: A production capacity of 1,000 tons per month with a 15–20 day delivery window is a practical benchmark for mid-to-large facade contracts.

Making sure of these things before placing an order helps keep the project on track and protects the look of the finished facade.

Logistics and Order Management

For each production batch, ask for material test reports (MTRs). Make sure the packaging covers the seam edges and panel faces while they are being shipped by sea or land. Talk to your seller about staged delivery terms for projects with planned installation plans so that damage doesn't happen during storage on-site.

Conclusion

Vertical standing seam metal cladding is a good way for facade contractors to solve some of the biggest problems they face today, like how well it works in bad weather, how quickly it can be installed, how well it meets fire safety standards, and how it looks over time. The hidden-fastener system gets rid of the points of contact that lead to calls. The floating clip detail handles changes in temperature without damaging the panel, and the PVDF coatings keep their color and gloss for decades of use. It's easy for buying teams to make the case for a wall system that costs less over its whole life than wood or stone. Choose the right substrate, make sure the stock is batch-matched, and work with a maker who can show proof of what they make.

FAQ

1. What is oil canning, and does it affect the warranty?

Oil canning is visual waviness in the flat panel face. It is an aesthetic characteristic, not a structural defect, and does not void most manufacturer warranties. It is managed through thicker panel gauges, narrower panel widths, or stiffening ribs rolled into the panel face.

2. How long does a metal standing seam facade last?

With PVDF coating and aluminum or Galvalume substrate, a properly installed facade carries a 30-year warranty from quality manufacturers. Actual service life often extends to 40–50 years with regular inspections and minor trim maintenance.

3. Can I order custom colors and wood-grain finishes?

Yes. Reputable manufacturers offer PVDF color matching and thermal-transfer wood-grain printing on aluminum substrates. Confirm batch consistency in writing before production starts to prevent color variation across panels from different runs.

4. What is the minimum order quantity?

HF's MOQ is 500 m², which accommodates mid-size facade projects and sample panel orders for design approval.

5. Does the system work as a rainscreen assembly?

Yes. The vertical seams and the air cavity behind the panels support a pressure-equalized rainscreen detail when installed over a drainage plane and continuous insulation layer.

Request Samples from HF — Trusted Vertical Standing Seam Metal Cladding Manufacturer

Vertical standing seam metal cladding panels made by HF (Xi'an Huafeng Construction Engineering Co., Ltd.) are approved by ISO 9001, ISO 14001, and AAMA 2605-22. HF helps facade contractors with everything from making the specifications to delivering the goods. They offer a 30-year warranty, 15–20 day lead times, and full color and profile customization from 500 m² MOQ. To get samples or a project quote, email our business-to-business sales team at huafeng@hfmetalroof.com.

References

1. AAMA (American Architectural Manufacturers Association). AAMA 2605-22: Voluntary Specification, Performance Requirements and Test Procedures for Superior Performing Organic Coatings on Aluminum Extrusions and Panels. 2022.

2. ASTM International. ASTM E1592: Standard Test Method for Structural Performance of Sheet Metal Roof and Siding Systems by Uniform Static Air Pressure Difference. 2021.

3. Metal Construction Association. Metal Wall Systems Manual. 2019.

4. National Roofing Contractors Association (NRCA). The NRCA Roofing Manual: Metal Panel and SPF Roof Systems. 2022.

5. SGS Group. Test Report: Coating Performance Under AAMA 2605-22 for Roll-Coated Aluminum Sheet (3003H24). Report No. GZMR241003197201_CN, 2024.

6. Morrison Hershfield. Building Envelope Design Guide: Metal Wall Systems. Journal of Building Enclosure Design, 2020.
