Vertical Standing Seam Metal Cladding: A Design Guide

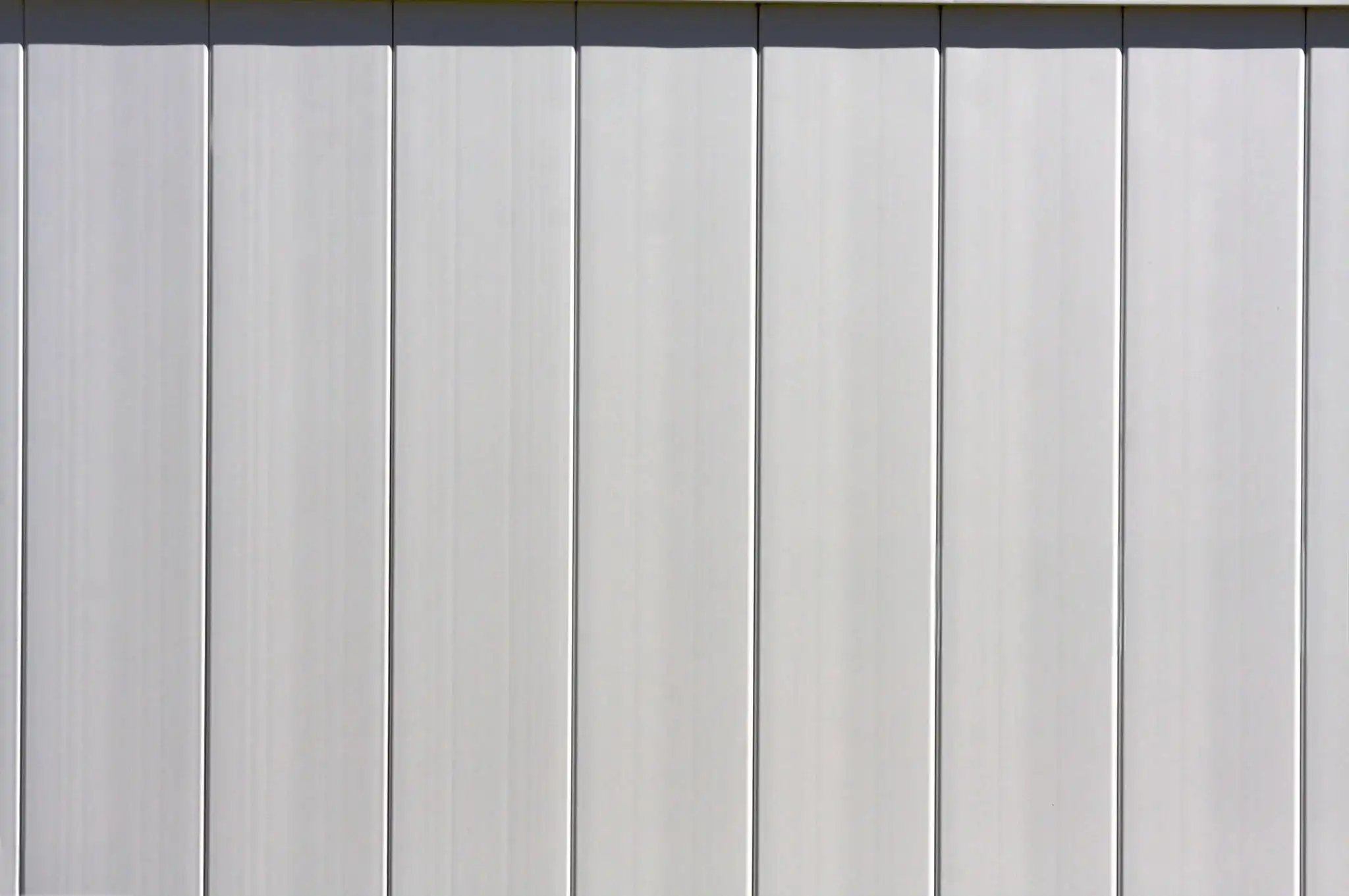

If you're sourcing metal facade systems for commercial or industrial projects, vertical standing seam metal cladding is worth a close look. This system connects adjacent metal panels through mechanical locking along vertical seams, forming a continuous, watertight building envelope. Compared to horizontal lap siding or corrugated panels, the vertical orientation accelerates rainwater runoff, reduces joint exposure, and delivers clean architectural lines that work equally well on new construction and facade renovation projects. This guide walks through design principles, material selection, cost factors, and supplier criteria to help procurement teams make confident decisions.

Understanding Vertical Standing Seam Metal Cladding

What Makes This System Different?

In contrast to wall panels with exposed fasteners, a standing seam wall panel system hides all clips and fasteners under the seam. This gets rid of the most common way for water to get in over time: covers that don't seal properly around screws that go through the wall. As a result, the facade doesn't have any hardware that can be seen and the weather barrier doesn't have any holes in it.

Core Technical Properties

Panels are usually made by rolling an aluminum alloy (AA3003, AA3004, AA5052) or Galvalume steel (AZ150) into a shape. Depending on the wind load, seam heights can be anywhere from 25 mm to 65 mm. Single panels can be longer than 12 meters, which cuts down on field joints by a lot. As per normal testing procedures, wind uplift resistance can reach ≥3.0 kPa, which is enough for storm zones.

Where It Gets Used?

This vertical standing seam metal cladding wall method can be found on a lot of different kinds of projects. It's good for commercial office towers, shopping malls, logistics stores, airports, and transit hubs because it doesn't get damaged by weather and doesn't need much upkeep. In renovation situations, it fits directly over existing substrates with a ventilated rainscreen gap, so the original wall assemblies don't have to be torn down, which would be expensive.

Design Principles and Installation Guide

Choosing the Right Material and Finish

The choice of material depends on how it will be used and how much money you have. Polyvinylidene fluoride (PVDF) coatings on aluminum alloy panels make them work best in coastal or high-UV places. HF's panels come with PE, HDP, and PVDF coatings, and they are certified by AAMA 2605-22. All 13 coating performance tests were passed, with a color uniformity result of ΔEH=0.3 and a coating bending result of 0T with no cracking. HDP (high-durability polyester) is a good middle ground for projects with limited funds.

Installation Sequence and Hardware

A true, straight foundation is the first step in a good installation. To avoid oil canning, which is a visible wave that happens when flat panels are under uneven stress, framing tolerance should stay within L/600. HF's hidden clip system lets panels slide around during heat cycles, so they can expand and contract without fasteners wearing out or buckleing. There is no need to use sealer at the seams because the waterproof line is already built into the 360° mechanical lock seam.

Maintenance Over the Long Term

Metal facade panels need a lot less upkeep than stone or wood options. Most maintenance needs are met by checking clip points and perimeter flashings once a year and washing them every so often to get rid of dirt and grime. The guarantee on HF's panels lasts for 30 years, which is how long PVDF-coated metal lasts in temperate and subtropical regions when placed properly.

Comparing Vertical Standing Seam Cladding with Alternative Solutions

Metal vs. Vinyl and Wood

Vinyl siding is cheaper up front, but it breaks down faster in UV light, is less resistant to fire, and can't be used in long, uninterrupted panels without showing the joints. Every 5–7 years, wood needs to be painted or stained again, and it soaks up water. vertical standing seam metal cladding gets rid of both issues. Because it has a Class A fire rating (EN13501-1 equivalent; HF's SGS combustion test showed zero flame spread and zero heat release across all six samples), it can be used in commercial and high-rise buildings where fire codes don't allow flammable cladding.

Metal vs. Corrugated Panels

Corrugated wall panels use washered screws that wear out over time and have fixings that are visible at every connection point. The vertical standing seam shape looks better, keeps out the weather better, and lasts longer without needing to be fixed. When remodeling a face that needs to look good and last a long time, standing seam usually wins out over other options in the first 8 to 10 years.

Sustainability and Green Building Credentials

Aluminum can be recycled in its entirety, and HF's products are in line with the EU RoHS Directive. According to SGS report TAOPC24008450103, all 10 harmful substances that were tested were either not found at all or were below the limits allowed. If a project wants to get LEED or another green building approval, it can use these test results to show what materials were used and how they affected the environment.

Procurement and Cost Factors for B2B Buyers

What Drives the Price

When you order facade cladding, the four main things that affect the cost are the substrate gage and alloy grade, the coating specification, the complexity of the panel profile, and the logistics of shipping. Aluminum that is thicker and coated with PVDF costs more per square meter than steel that is thinner and coated with PE. However, the difference gets smaller when you consider how many times the steel will need to be replaced and painted over a 20-year period.

Minimum Order and Lead Times

HF's minimum order size is 500 m², which is enough for medium-sized facade projects without needing to keep extra stock on hand. One thousand tons of supply can be sent each month. The normal time for shipping is 15–20 days after the order is confirmed. This expected lead time lowers scheduling risk for procurement managers who have to keep track of tight building plans.

Evaluating Supplier Reliability

When looking at vertical standing seam metal cladding suppliers, make sure they have ISO 9001 quality management certification, third-party coating test results (AAMA 2605 for PVDF), and proof that they have completed foreign projects before. HF is certified by ISO 9001, ISO 14001, and SGS. In China, they have both Level 1 curtain wall qualification and Level 3 steel structure qualification. You can choose your own color, design, and panel width. The standard ranges are 25–330/400–430 and 65–300/400–430–500.

Top Brands, Suppliers, and Warranty Information

What to Look for in a Manufacturer?

A reliable vertical standing seam cladding manufacturer should not only make marketing claims but also test reports that have been checked out. Look for a coating that is certified by AAMA 2605-22, follows RoHS rules, and has documented data on how well it burns. Warranty terms shouldn't just be written on a brochure; they should be backed up by production records that can be tracked.

HF's Position in the Market

HF (Xi'an Huafeng Construction Engineering Co., Ltd.) was founded in 2018 and has factories in Xi'an, Anhui, and Hangzhou. Seven color-coating lines, one laminating line, and ten longitudinal and crosswise cutting lines are used by the business. HF is a high-tech company in Shaanxi Province, and it has more than 20 registered patents for roofing and wall panel systems.

Warranty and After-Sales Support

HF's 30-year warranty on standing seam wall panels is based on tested material performance, not a marketing number. The SGS flame test (AS/NZS 1530.3:1999) showed that none of the items tested ignited. Before making an order, procurement managers can directly ask for test documentation, which meets the requirements for due diligence in big commercial contracts.

Conclusion

Vertical standing seam metal cladding is a useful and long-lasting option for commercial facade projects that need to be resistant to weather, fire, and have low maintenance costs. Whether a project delivers long-term value or leads to callbacks and warranty disputes depends on how well the substrate, coating, and supplier are chosen. Certified products from HF, clear test documentation, and quick customer service make the sourcing process easy for both procurement managers and design teams. This guide has a lot of information that will help you start comparing wall systems for a future project.

FAQ

1. What is oil canning, and should I be concerned?

Oil canning is visible waviness in the flat field of a metal panel caused by residual stress. It is an aesthetic characteristic, not a structural defect. You can minimize it by specifying thicker gauge material, narrower panel widths, or longitudinal stiffening ribs on the panel face.

2. How does the panel handle thermal expansion?

Concealed sliding clips allow each panel to move independently along its length during temperature changes. This design prevents buckling and fastener fatigue. There is no need for expansion joints at regular intervals the way rigid cladding systems require.

3. What is the minimum order for a sample or small project?

HF's MOQ is 500 m², which works for most mid-scale facade projects. For sampling and color confirmation before full production, contact HF directly to discuss your timeline and specifications.

4. Does this system meet fire codes for commercial buildings?

Yes. HF's aluminum panels achieved zero flame spread and zero heat release in SGS combustion testing under AS/NZS 1530.3:1999, which aligns with Class A fire performance criteria applicable in North American and European commercial building codes.

5. Can panels be customized for color or wood-grain finishes?

HF offers full color customization and wood-grain transfer printing as standard services. Custom panel widths, coating types (PE, HDP, PVDF), and pattern designs are all available within the standard lead time of 15–20 days.

Request a Quote from HF — Vertical Standing Seam Cladding Supplier

Builders and exterior companies in North America, Europe, and Australia buy vertical standing seam metal cladding from HF. It's easy to buy from HF for any size job because they have a 30-year guarantee, AAMA 2605-22 certified PVDF coatings, ISO 9001/14001 compliance, and a MOQ of just 500 m². You can get a sample or full price by sending your project details to huafeng@hfmetalroof.com.

References

1. Architectural Aluminum Manufacturers Association (AAMA). AAMA 2605-22: Voluntary Specification, Performance Requirements and Test Procedures for Superior Performing Organic Coatings on Aluminum Extrusions and Panels. AAMA, 2022.

2. Metal Construction Association. Metal Wall Systems Manual. MCA, 2020.

3. ASTM International. ASTM E1592: Standard Test Method for Structural Performance of Sheet Metal Roof and Siding Systems. ASTM, 2016.

4. European Committee for Standardization. EN 13501-1: Fire Classification of Construction Products and Building Elements. CEN, 2018.

5. National Roofing Contractors Association (NRCA). The NRCA Roofing Manual: Metal Panel and SPF Roof Systems. NRCA, 2022.

6. SGS Group. Test Report — Coating Performance under AAMA 2605-22 and Combustion Performance under AS/NZS 1530.3:1999. SGS, 2024
