Standing Seam Steel Roofing Sheets: Comprehensive Guide on Materials,Costs,and Installation

When it comes to roofing solutions for large-scale industrial and commercial projects, standing seam steel roofing sheets have emerged as the gold standard. This metal roofing system uses vertical interlocking seams to form a continuous, waterproof structure that delivers exceptional wind resistance and longevity. Throughout my experience working with procurement managers and project engineers across diverse sectors, I've seen these roofing systems transform facility performance while significantly reducing maintenance burdens. This comprehensive guide walks you through everything you need to know about materials, costs, and installation to make procurement decisions that optimize both immediate budgets and long-term asset value.

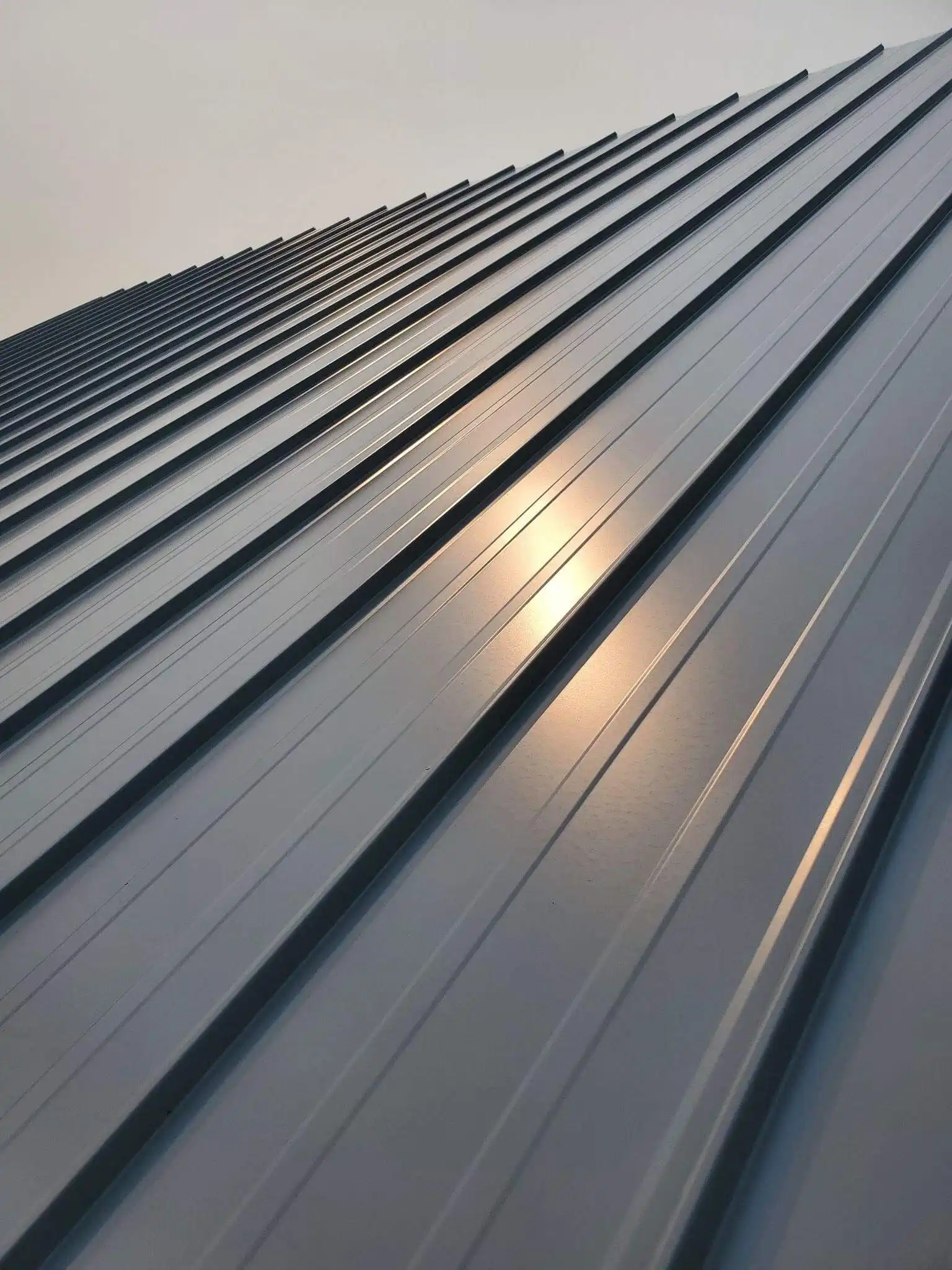

Understanding Standing Seam Steel Roofing Sheets

Standing seam steel roofing sheets are an advanced type of metal roofing. They have raised seams that mechanically interlock above the flat pan, making a hidden fastener system. Traditional profiles with visible fasteners wear out and leak over time. These panels, on the other hand, connect with secret clips that let the panels expand and contract with temperature changes without affecting the structure. The most common place for metal roofing systems to fail is when fasteners go through the weather shield. This design gets rid of that problem.

Core Components and System Architecture

The method is made up of three main parts: the metal panels, the seaming device, and hidden clips that can be set or float. Panels have vertical ribs that are 25 mm to 65 mm high. The shape of the ribs directly affects the strength of the structure and how well it drains. The hidden clip connection lets panels move along their length without being held together. This lets thermal movement happen over spans of more than 50 meters without any buckling or breaking. Due to this feature, the system works especially well on large industrial roofs where changes in temperature cause big changes in size.

Industrial Applications and Use Cases

With this roofing technology, factories, stores, and shipping hubs can do a lot more. The continuous panel design makes it possible to install on slopes as low as 1 degree while still keeping the building completely waterproof. This is especially useful for large buildings where getting steeper pitches would be too expensive. In addition to being useful, the clean lines and hidden fasteners give it a look that works well in places like airports, convention centers, and business buildings where appearance is important along with function.

Material Substrate Options

The base choice has a big effect on how long something will last and how well it will fight corrosion. A coating of 55% aluminum and 45% zinc alloy covers AZ150 or AZ185 steel. This coating is three to six times more resistant to rust than regular galvanized steel, and it has been shown to last 30 to 50 years in mild environments. Galvanized steel substrates with coating weights between Z120 and Z275 are still a cheap option for controlled settings with little contact to corrosion. 304 or 316 stainless steel is used in coastal or chemical processing areas that are very corrosive. Investing in high-quality substrates keeps these areas from premature failure and expensive replacement cycles.

Coating Technologies and Performance

PVDF (polyvinylidene fluoride) fluorocarbon paints are the best choice for projects that need to keep their good looks for a long time because they are very resistant to UV light and keep their color for 15 to 20 years. These coatings don't chalk or fade, even when exposed to strong sunlight. This is especially helpful for buildings in tropical and desert climates. Polyester coatings are a cheap option for moderate environments, and high-durability polyester formulations fill the performance gap between regular polyester and PVDF at prices in the middle. The choice of treatment has a direct effect on lifetime costs by affecting how often the surface needs to be painted and how long it looks good.

Comparing Standing Seam Steel Roofing Sheets with Other Roofing Materials

When procurement teams know how standing seam systems compare to other options, they can make sure that the roofs they choose meet the needs and restrictions of each project.

Standing Seam vs. Corrugated Steel Panels

Corrugated and trapezoidal profiles have exposed fasteners that go through the panel crests. This makes thousands of possible leak points that need to be checked regularly because washers wear out and screws come loose. At first, these systems cost 30% to 40% less, but they need to be inspected often and have their fasteners replaced every 8 to 12 years. Because the attachment is hidden, standing seam systems don't need this kind of maintenance, so even though they cost more up front, they have lower total ownership costs. The design with hidden fasteners also makes them better at resisting wind uplift. Systems that meet ASTM E1592 standards can be used in hurricane-prone areas where exposed-fastener systems often fail certification requirements.

Material Comparison: Steel vs. Aluminum vs. Copper

Steel frames are the most cost-effective and have the best strength-to-weight ratios for industry uses, especially for standing seam steel roofing sheets. Aluminum is lighter and doesn't rust when it's not coated, but it needs bigger gages to be as strong as steel, which raises the cost of the material by 60% to 80%. Copper's durability is unmatched—it can last over 100 years—but it's very expensive and should only be used in certain building situations. When buying things for industry, steel with an aluminum-zinc coating is the best compromise between efficiency, longevity, and cost.

Cost Structure and Budget Planning

The price of materials for standing seam systems ranges from $4.50 to $8.50 per square foot, depending on the type of substrate, the coating, and the shape of the panel. Installation costs an extra $3.00 to $6.00 per square foot, and contractors have to pay more for mechanically seamed systems because they need special equipment to seam them. Lifecycle analysis shows that even though standing seam roofing costs 50% to 70% more up front than exposed-fastener systems, it has 40% lower total ownership costs over 30 years because it doesn't need as much fastener maintenance and lasts longer. Instead of just comparing first costs, budget forecasts should take these lifecycle measures into account.

Installation Process and Maintenance of Standing Seam Steel Roofing Sheets

The success of a system depends on how well it is installed, so it is very important that installers are qualified and follow the process exactly as planned.

Pre-Installation Preparation

Before preparing the substrate, the deck must be checked to make sure it is flat within the manufacturer's limits, which are usually 1/4 inch over 10 feet. This is because underlying flaws can be seen through metal panels and cause waviness. Installing high-temperature underlayment provides extra security against wetness and keeps temperatures apart, which stops condensation. When planning the layout of a panel, thermal movement formulas are used to find set clip locations and expansion allowances that keep the panel from buckleing when the temperature changes.

Panel Installation Sequence

As you work your way up one eave, the female leg of each panel overlaps the male leg next to it before being sewn together. Hidden clips are attached to the purlins of the structure at certain distances apart. Floating clips in the middle of the panels allow them to move longitudinally, while fixed clips at the ends of the panels stop them from drifting laterally. To make sure the seams connect properly during mechanical crimping, panel placement must be exact within a 1/8-inch range. Ridge and eave trim work must be done according to the manufacturer's instructions to keep the system waterproof and allow for panel movement.

Seaming Techniques and Equipment

For mechanical seaming, portable electric seamers are used to crimp the panel legs that fit together through single-lock (180-degree) or double-lock (360-degree) shapes. Double-lock seams are better at withstanding the weather in low-slope areas and high-wind areas because they make a fully linked connection that can't come apart. Seam quality has a direct effect on how well the system works, so it's important that the user has a lot of experience. When seaming, it's important not to over-crimp, which can damage coatings, or under-crimp, which can leave connections that are loose and open to wind uplift.

Maintenance Protocols and Longevity Planning

Standing seam systems don't need as much care as other options, but they should be inspected regularly to make sure they last as long as possible. Every six months, inspections are done to look for signs of coating wear, sealant state at penetrations, and debris buildup in slopes or drains. Pollutants that speed up coating breakdown can be removed by cleaning panels with low-pressure water and light soap. This is especially true in industrial settings where airborne contaminants are present. HF standing seam systems come with a full 30-year guarantee that covers both the performance of the base perforation and the performance of the coating. This gives buying teams long-term performance confidence backed by proof of manufacturing quality.

Procurement Guide: Buying Standing Seam Steel Roofing Sheets for B2B Clients

When you do strategic buying, you don't just compare prices; you also look at how reliable the suppliers are, how well they help with technical issues, and how well the deliveries fit in with the project plans.

Critical Purchasing Considerations

Planning ahead for lead times is important for big projects that need a lot of materials. HF has three factories with a total of seven production lines and more than forty specialized machines. This lets them meet standard delivery schedules of 15 to 20 days. Custom needs, like specific RAL colors or non-standard panel geometries, can make timelines longer, so it's important to involve suppliers early on in the design process. Orders must be at least 500 square meters or one ton in order to be efficient, but they can still be used for smaller projects.

Customization Capabilities and Technical Specifications

Standing seam steel roofing sheets have thicknesses that range from 0.7mm to 1.2mm to meet the needs of different structural loads and spans. Between 25mm and 65mm in rib height gives you a choice that balances your stylistic tastes with the need for structural strength. PVDF coating finishes are very resistant to weather, and they can be custom-colored to match any RAL standard. This keeps the brand consistent across sites with multiple buildings. When you order a custom length, there are no horizontal laps. This makes a continuous weather barrier from the ridge to the eave that keeps things dry in critical situations.

Supplier Evaluation and Quality Assurance

Checking the trustworthiness of a supplier should include making sure they follow foreign standards like ASTM, DIN, JIS, BS, and GB/T. HF is certified in both the ISO 9001 quality management system and the ISO 14001 environmental management system. This shows that the company is dedicated to consistently high-quality products and environmentally friendly production methods. Verifying manufacturing capacity through facility checks makes sure that output capabilities meet the volume needs of the project and meet delivery promises. Suppliers who can truly partner with you are different from transactional sellers because they offer technical help during the development of specifications, planning of installations, and service after installations.

Logistics and Staged Delivery Planning

For big projects, it's common for materials to be delivered in stages that match the order of construction so that there is less need for storage and moving of materials on-site. Expert sellers plan when containers are loaded and shipped so that they arrive at the same time as the erection crew. This keeps projects from being held up because of lack of materials or too much overcrowding on the staging area, which can be very expensive. International projects benefit from suppliers who know how to handle export paperwork and have connections with freight forwarders that make clearing customs and getting supplies to remote project sites easier.

Maximizing ROI with Standing Seam Steel Roofing Sheets

Investment justification includes more than just the initial cost of acquisition. It also includes operational savings, risk reduction, and long-term value.

Energy Efficiency and Operational Savings

Standing seam systems with reflective PVDF coatings lose up to 35% of the heat that comes from the sun, reducing the need for cooling in warm climates. Facilities have better thermal performance than with traditional built-up roofing assemblies when insulation systems are installed under the panels without thermal bridging. After switching from built-up roofing to reflective standing seam panels, a 100,000-square-foot distribution center in the southeast of the United States saved $18,000 a year on energy costs. This meant that the investment paid for itself in just 7.5 years.

Weather Resistance and Risk Reduction

When built and put together correctly, mechanically seamed panels can handle wind uplift forces of more than 150 pounds per square foot, meeting ASTM D7158 Class 4 wind resistance values. This level of performance protects assets in hurricane corridors and tornado alleys, where a roof failure could mean losing a lot of money and inventory. The watertight seam design stops moisture from getting in and damaging goods, rusting equipment, and making the workplace dangerous. This lowers insurance costs and liability exposure.

Sustainability and Corporate Responsibility

Metal roofing systems are made up of 25% to 95% recycled materials and are 100% recyclable when they're no longer needed. This helps companies reach their LEED certification and sustainability goals. The 50-year service life potential is better for the environment because it means fewer replacement cycles, whereas 20-year asphalt systems need many replacement cycles. Low-maintenance needs keep chemical cleaners and repair materials out of landfills, which is in line with green building principles that are becoming more important to businesses and government agencies.

Standing seam steel roofing is positioned as a strategic investment rather than a common buy as a result of these combined advantages, which provide quantifiable value in terms of finances, operations, and sustainability.

Conclusion

Standing seam steel roofing sheets are the best for industrial and commercial uses because they have concealed fasteners, are more resistant to weather, and need very little maintenance. The substrate type, coating specification, and panel geometry should all be chosen based on the project's environmental conditions and performance goals. Installation quality and the ability of the provider are just as important as product specs when it comes to getting the design purpose and lasting for a long time. When purchasing decisions are based on lifetime cost analysis instead of first-cost comparison, the strong economic value of these systems becomes clear because they save energy, don't need upkeep, and last longer. HF is a trusted partner for projects that need both high-quality products and a stable supply chain because we have a wide range of manufacturing skills, technical knowledge, and quality certifications.

FAQ

1. What service life can I expect from standing seam steel roofing systems?

Systems that are properly designed and built usually last between 30 and 50 years, though this depends on the climate and the substrate that is used. In warm climates, aluminum-zinc substrates with PVDF coats can last more than 40 years before they need to be replaced. In mild climates, galvanized substrates can last 25 to 35 years. HF backs up its 30-year warranty on substrate perforation and coating performance with quality controls during production and material testing protocols.

2. Can standing seam panels install over existing roofing structures?

Retrofitting over existing roofs is common and can save you money if the structure can handle the extra dead load. A separation layer stops granular abrasion from old shingles, and furring systems make sure there are good surfaces for attachment and airflow. This method gets rid of the costs of tearing off and getting rid of waste, and it also extends the life of the building without causing major problems with operations.

3. How do panels accommodate thermal expansion in long runs?

Floating clip systems let panels expand and contract along their length as the temperature changes, but they stay securely attached to the structure. Clips have slide systems that let long panels move a few inches, which keeps them from breaking or tearing out of the clips. Fixed clips at the ends of the panels stop movement to the side while letting lengthwise slip happen.

Partner with HF for Your Next Standing Seam Steel Roofing Project

Finding the right manufacturer of standing seam steel roofing sheets is important for the success of the project because of the quality of the products, the dependability of shipping, and the expert support. HF has been making metal roofs for 30 years and has seven production lines and more than 40 specialized machines that can make panels with rib heights between 25mm and 65mm and thicknesses between 0.7mm and 1.2mm. Our PVDF paint finishes are certified by ISO 9001 and ISO 14001, which show that we are excellent at managing quality and the environment. They meet foreign standards like ASTM, DIN, JIS, BS, and GB/T. Custom RAL color matching, designed lengths of up to 12 meters, and shipping times of 15 to 20 days all help meet tight project deadlines. You can talk to our team at huafeng@hfmetalroof.com about your needs, ask for technical details, and get competitive quotes for your industrial roofing projects. You can see all of our products at hfmetalroof.com. That's why top contractors and building owners choose HF to supply standing seam steel roofing sheets for projects in Southeast Asia, the Middle East, Africa, and Latin America.

References

1. Metal Construction Association (2021). "Technical Bulletin: Standing Seam Roof Systems." MCA Technical Publications.

2. American Galvanizers Association (2020). "Performance of Hot-Dip Galvanized Steel and Aluminum-Zinc Alloy-Coated Steel." AGA Technical Report Series.

3. Whole Building Design Guide (2022). "Metal Roofing: Life Cycle Cost Analysis." National Institute of Building Sciences.

4. Cool Roof Rating Council (2021). "Energy Savings Documentation: Commercial Reflective Roofing Case Studies." CRRC Publications.

5. ASTM International (2023). "ASTM E1592: Standard Test Method for Structural Performance of Sheet Metal Roof and Siding Systems."

6. U.S. Green Building Council (2022). "LEED v4.1: Material Ingredients and Life Cycle Impact Reduction." USGBC Reference Guide.
