Standing Seam Wall System
Finishes:PE, HDP,PVDF COATING
Supply Ability：1000 Ton/month
Service life:30-year warranty
MOQ:500㎡
Delivery time: 15-20 days
Provide customized services: color, pattern, design customization
Standard:ISO9001, ISO14000:14001,SGS guidelines
Xi'an Huafeng Construction Engineering Co., Ltd.: Your Trusted Standing Seam Wall System Partner
Xi'an Huafeng Construction Engineering Co., Ltd. is a leading manufacturer and supplier of high-quality standing seam wall systems. Through our state-of-the-art generation offices and broad plan capabilities, we come up with modern ways to combine quality, excellence, and usefulness. Our items are culminate for cutting edge development ventures since they are exceedingly safe to climate, spare vitality, and can be utilized in a assortment of ways.
Product Introduction
The item is a high-performance metal window ornament divider arrangement with vertical locking plan, which has amazing waterproofness, strength and aesthetics. The framework is broadly utilized in the outside dividers, rooftops and veneers of advanced buildings, appropriate for commercial, mechanical, open buildings and high-end private ventures.
Specifications
1. Material selection
- Base material: aluminum alloy (AA3003/AA3004/AA5052), aluminum-zinc steel plate (AZ150), stainless steel, etc.
- Coating: PVDF (fluorocarbon coating), PE (polyester coating), HDP (high weather-resistant polyester), etc., providing a variety of color options.
- Thickness: 0.7mm~1.5mm (adjusted according to wind pressure resistance and structural requirements).
2. Standard panel size
- Panel width: usually 300mm~600mm (can be customized according to project requirements).
- Panel length: single board can be up to 13m (reduce joints and improve waterproofness).
- Rib height: 25mm~65mm (affects wind pressure resistance and drainage performance).

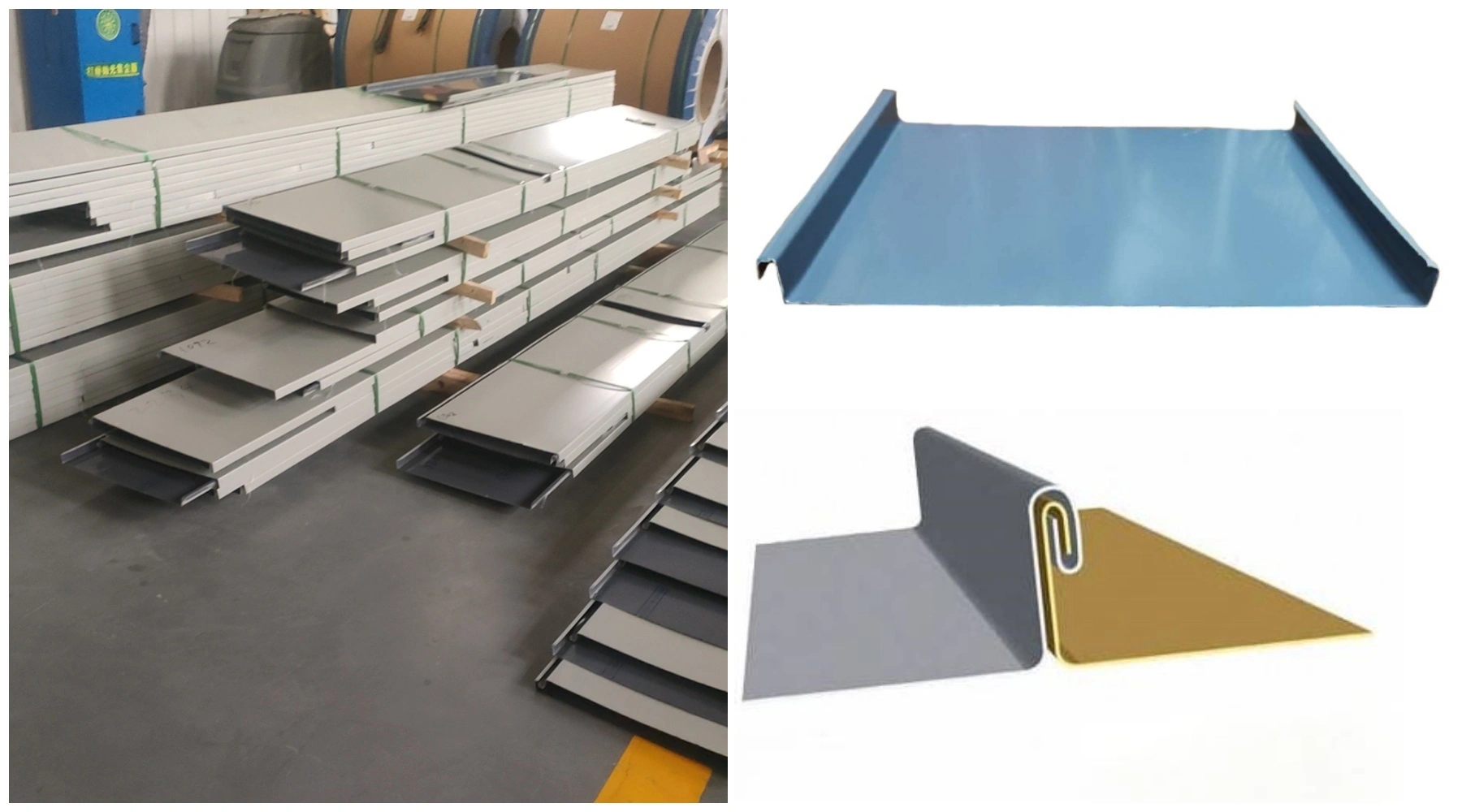

3. Connection method
- Mechanical locking edge: on-site biting by a special machine to form a continuous seal.
- Hidden fixing: fixed with a sliding clip (Clip), allowing thermal expansion and contraction displacement.
Structural performance
| Feature | Description |
|---|---|
| Wind Pressure Resistance | Through the vertical lock edge design and reinforced rib structure, it can resist super strong wind pressure . |
| Waterproof Performance | Double waterproof design: lock edge bite + internal waterproof membrane to ensure no leakage. |
| Thermal Expansion Adaptability | The sliding buckle system allows the panel to expand and contract freely to avoid deformation or cracking. |
| Fire Resistance | The metal substrate meets the Class A fire protection standard . |
| Durability | PVDF coating has strong weather resistance and color retention for more than 20 years. |
Application areas
- Building exterior walls: curtain wall decoration of high-end office buildings, hotels, shopping centers, etc. Large public buildings such as airports and gymnasiums.
- Industrial facilities: factories, warehouses and other places that require durable walls.
- Special shapes: curved, wavy and other special-shaped facade designs.
Advantages
- Beautiful: simple lines, strong modern sense, support customized design.
- Efficient installation: modular construction, saving time and cost.
- Environmental protection: metal materials are 100% recyclable and meet green building standards.
- Low maintenance: corrosion-resistant, UV-resistant, long-term maintenance-free.
Why Choose Us?
- Extensive experience in standing seam wall system design and manufacturing
- Customizable solutions to meet unique project requirements
- Stringent quality control processes ensuring superior product performance
- Competitive pricing and timely delivery
- Comprehensive technical support and after-sales service

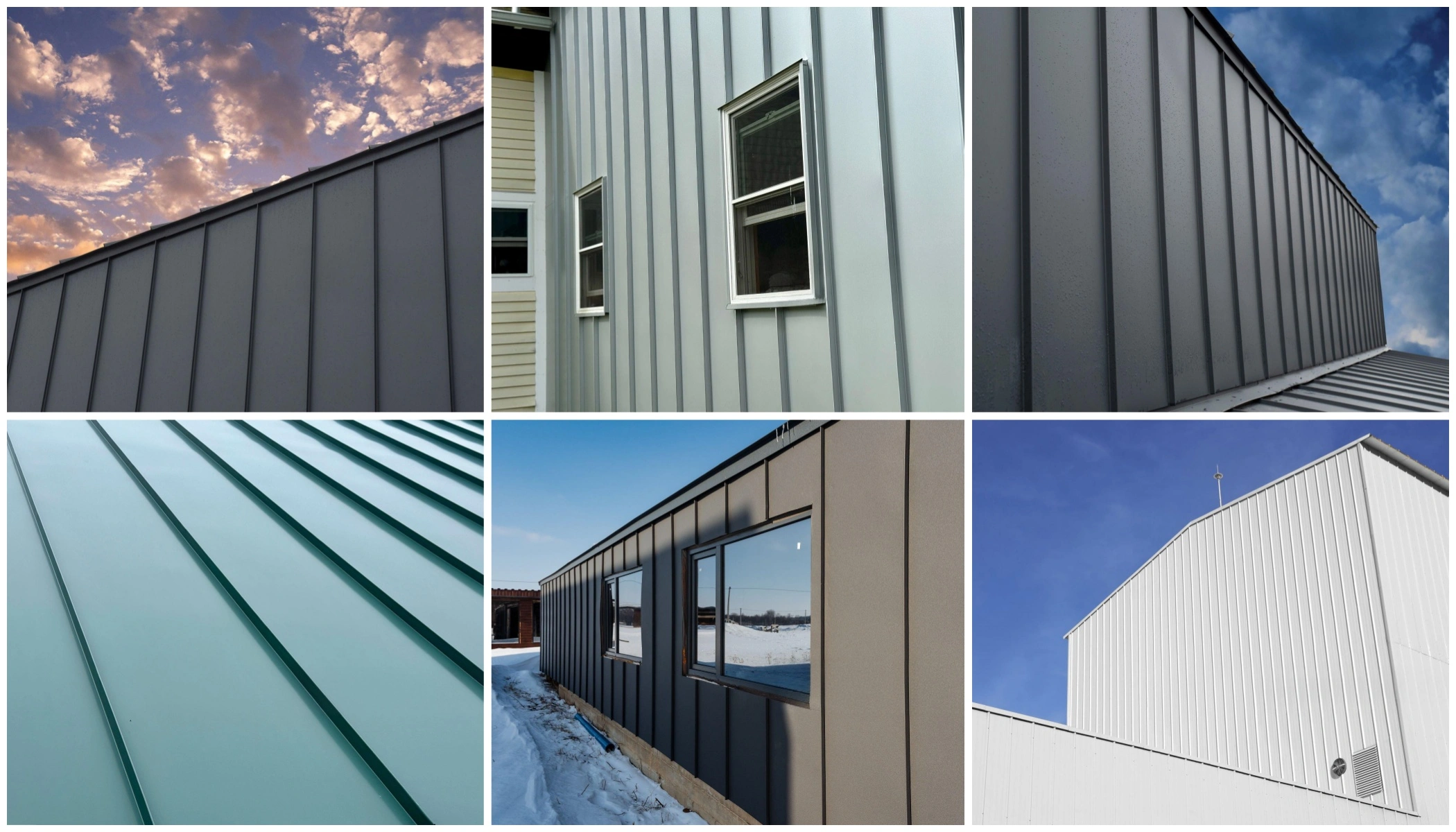

Project Cases
We've successfully completed numerous projects across diverse sectors, showcasing our product's versatility and excellence.

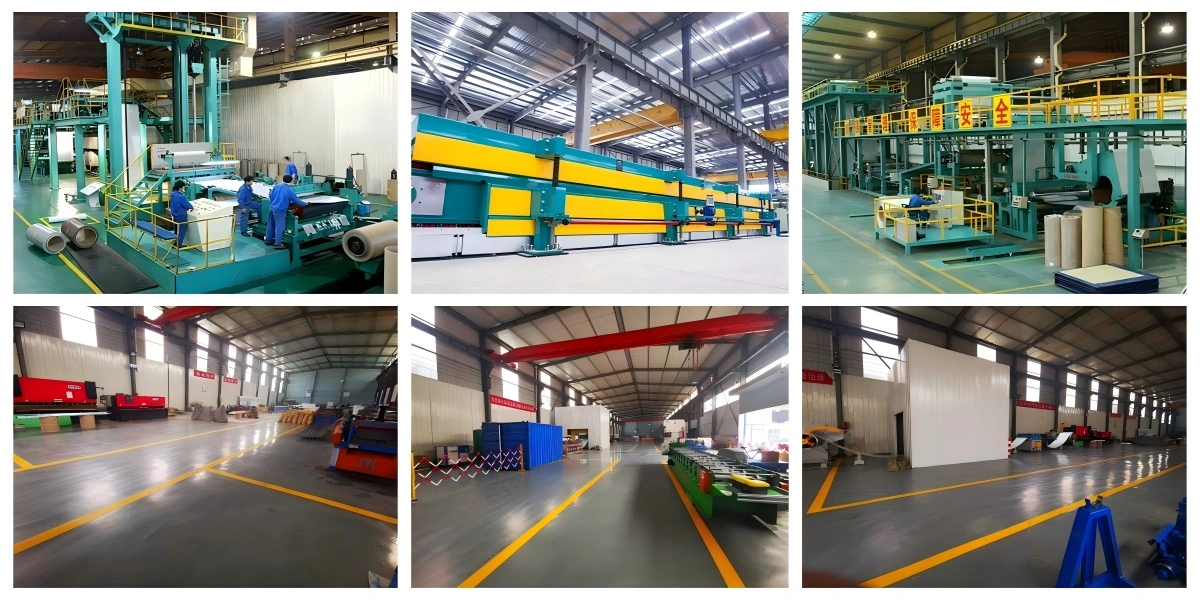

Factory Strength
Our state-of-the-art manufacturing facility ensures consistent quality and high production capacity for products's.

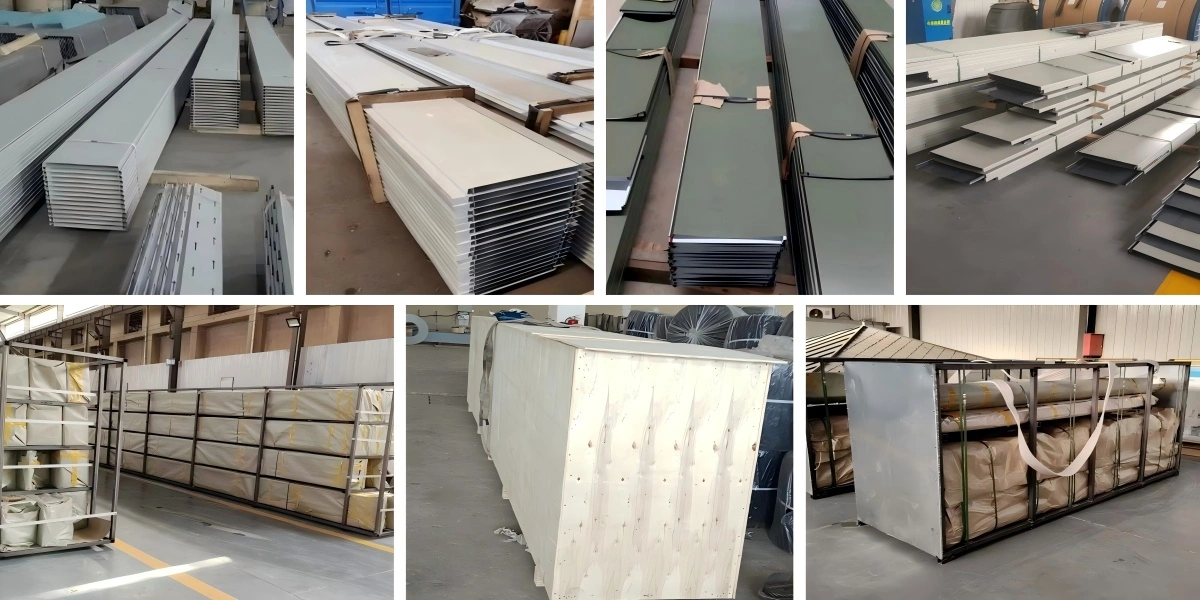

Packaging
We employ secure packaging methods and reliable logistics partners to ensure safe, timely delivery of your products.
Qualification Certification
Our products meet international standards, backed by ISO, CE, and SGS certifications.
FAQ
Q: What is the lifespan of your product?
A: Our systems come with a 30-year warranty, reflecting their exceptional durability and longevity.
Q: Can the panels be customized in terms of color and design?
A: Yes, we offer customization options for color, pattern, and design to suit your specific project needs.
Q: What is the minimum order quantity (MOQ) for products?
A: Our MOQ is 500㎡, allowing flexibility for various project sizes.
Q: How long does it take to deliver an order?
A: Our typical delivery time is 15-20 days, depending on order specifications and quantity.
Q: Are your products environmentally friendly?
A: Yes, our systems are 100% recyclable and comply with green building standards, supporting sustainable construction practices.
Contact Us
For Standing Seam Wall System inquiries or to discuss your project needs, please contact us at huafeng@hfmetalroof.com.
