Are you facing constant maintenance costs from deteriorating exterior walls? Concerned about rust damage and frequent repairs eating into your project budget? Galvanized Metal Wall Panel offers a proven solution that combines exceptional durability with long-term cost savings. This comprehensive guide explores why galvanized sheet metal wall panels have become the preferred choice for architects, contractors, and building owners seeking reliable, low-maintenance exterior cladding that stands up to the harshest environmental conditions while maintaining aesthetic appeal for decades.

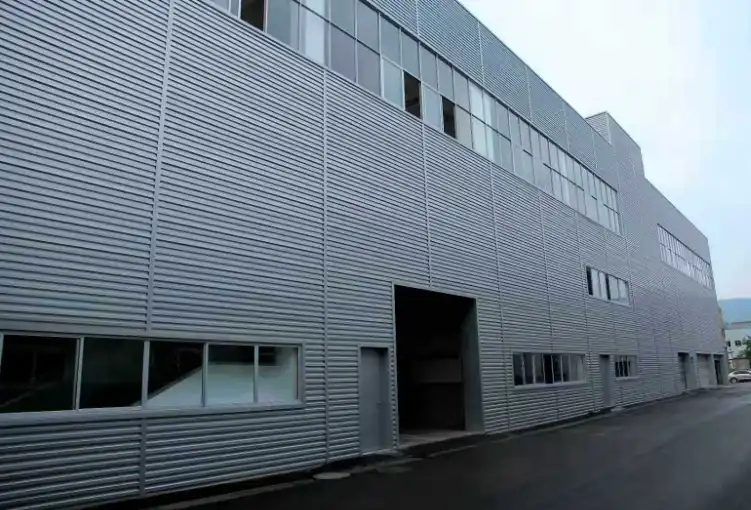

Understanding Galvanized Metal Wall Panel Technology
Galvanized Metal Wall Panel represents a sophisticated evolution in building exterior protection systems. These panels consist of high-quality steel sheets coated with a protective zinc layer through the hot-dip galvanizing process, creating a metallurgical bond that shields the underlying steel from corrosion. The galvanization process involves immersing steel sheets in molten zinc at temperatures exceeding 840 degrees Fahrenheit, resulting in a uniform coating that ranges from Z60 to Z275 grams per square meter. This zinc coating acts as both a barrier and a sacrificial anode, meaning it corrodes preferentially to protect the steel substrate beneath. Modern galvanized sheet metal wall panels incorporate advanced manufacturing techniques including precision roll-forming, which creates consistent profiles and dimensional accuracy essential for seamless installation. The panels are available in various thicknesses ranging from 0.3mm to 1.2mm, with the most common specifications between 0.4mm and 0.8mm depending on structural load requirements and span distances. Width options typically range from 600mm to 1200mm, allowing for customization based on architectural design requirements and installation efficiency considerations.
Superior Corrosion Resistance for Extended Service Life
The primary advantage of Galvanized Metal Wall Panel lies in its exceptional resistance to corrosion, which directly translates to extended service life and reduced lifecycle costs. The zinc coating provides multiple layers of protection through both barrier and galvanic action mechanisms. When exposed to atmospheric conditions, the zinc layer forms a stable zinc carbonate patina that further enhances corrosion resistance by creating an additional protective barrier. This natural weathering process actually strengthens the panel's defenses over time rather than weakening them. In industrial environments where acid rain, salt spray, or chemical emissions pose significant threats to building exteriors, galvanized sheet metal wall panels demonstrate superior performance compared to painted or uncoated alternatives. Research indicates that properly maintained galvanized panels can achieve service lives of 30 to 50 years in moderate environments, and 20 to 30 years even in aggressive coastal or industrial settings. The self-healing properties of the zinc coating mean that minor scratches or surface damage do not immediately lead to rust formation, as the surrounding zinc continues to provide cathodic protection to the exposed steel. This characteristic makes Galvanized Metal Wall Panel particularly valuable for buildings in challenging climates where frequent maintenance access is difficult or costly.
Structural Strength and Impact Resistance
Beyond corrosion protection, galvanized sheet metal wall panels deliver exceptional structural performance that ensures building envelope integrity under diverse loading conditions. The high strength-to-weight ratio of steel provides superior resistance to wind loads, impact damage, and thermal stress compared to alternative cladding materials such as vinyl, wood, or fiber cement. Corrugated and ribbed profiles enhance structural capacity by increasing the moment of inertia, allowing Galvanized Metal Wall Panel systems to span greater distances between supports without intermediate framing members. This structural efficiency reduces overall material costs and installation complexity while maintaining code-compliant performance standards. The ductility of galvanized steel enables panels to absorb impact energy without fracturing, a critical advantage in areas subject to hail, debris, or accidental contact. Testing according to ASTM standards demonstrates that galvanized sheet metal wall panels maintain structural integrity under wind pressures exceeding 140 miles per hour when properly installed with appropriate fastening schedules. The material's fire-resistant properties provide additional safety benefits, as steel does not contribute to flame spread and maintains structural capacity at elevated temperatures significantly longer than combustible alternatives. Temperature cycling and thermal expansion characteristics of Galvanized Metal Wall Panel systems have been extensively studied, with appropriate detailing techniques developed to accommodate movement without compromising weather-tightness or aesthetic continuity.
Comprehensive Cost-Benefit Analysis of Galvanized Metal Wall Panel
When evaluating exterior cladding options, understanding the total cost of ownership rather than just initial material costs provides crucial insight for informed decision-making. Galvanized Metal Wall Panel systems typically demonstrate lower lifecycle costs compared to alternative cladding materials when factors including installation labor, maintenance requirements, expected service life, and replacement frequency are properly analyzed. The lightweight nature of galvanized sheet metal wall panels reduces structural loading requirements, potentially allowing for lighter foundation systems and reduced structural steel or concrete quantities in the supporting framework. Installation efficiency represents another significant economic advantage, as metal panel systems can be erected rapidly by experienced crews using standard tools and fastening systems. A typical commercial building facade can be completed in 40-60% less time compared to masonry construction, dramatically reducing weather exposure risks during construction and accelerating project schedules to earlier occupancy dates. The modular nature of panel systems also facilitates phased construction approaches and reduces coordination conflicts between trades. Maintenance cost projections over a 30-year analysis period consistently show galvanized panels requiring minimal intervention beyond periodic cleaning and inspection, whereas painted systems necessitate recoating every 7-15 years depending on environmental exposure and initial coating quality.
Installation Efficiency and Labor Cost Reduction
The installation characteristics of Galvanized Metal Wall Panel systems directly impact project economics through reduced labor hours and simplified construction logistics. Pre-fabricated panels arrive on site with precise dimensions and factory-finished edges, eliminating field cutting and finishing operations that consume time and introduce quality variability. Standard panel widths of 1000mm to 1200mm provide efficient coverage rates, with experienced installation crews capable of completing 100-150 square meters per day under favorable conditions. The exposed fastener installation method commonly employed with corrugated galvanized sheet metal wall panels utilizes self-tapping screws with integrated weather seals, creating weatherproof penetrations without specialized equipment or extensive training requirements. Concealed fastener systems, while requiring more sophisticated installation techniques, deliver seamless aesthetics highly valued in architectural applications where visual continuity is paramount. Both approaches benefit from the dimensional stability and flatness tolerances achievable in modern roll-forming operations, ensuring panels align properly and maintain consistent reveal lines throughout the facade. The compatibility of Galvanized Metal Wall Panel systems with various substrate conditions including steel framing, wood framing, concrete block, and existing wall surfaces provides flexibility in both new construction and renovation applications. Proper installation requires attention to waterproofing details at panel terminations, penetrations, and transitions to dissimilar materials, with industry-standard flashing techniques well-established through decades of field experience.
Long-Term Maintenance Requirements and Durability
Lifecycle maintenance considerations strongly favor Galvanized Metal Wall Panel over alternative cladding materials due to the inherent durability of galvanized steel and minimal maintenance requirements. Unlike wood siding that requires periodic painting, sealing, and replacement of deteriorated sections, or stucco systems prone to cracking and water intrusion, properly installed galvanized sheet metal wall panels require only basic cleaning to maintain appearance and performance. Annual inspections focusing on fastener condition, sealant integrity, and drainage provisions typically identify minor issues before they escalate into costly repairs. The absence of organic materials eliminates concerns about rot, insect damage, or biological growth that plague wood and composite cladding products. In coastal environments where salt-laden winds accelerate corrosion of many building materials, the sacrificial zinc coating of Galvanized Metal Wall Panel continues protecting the steel substrate even as surface weathering occurs. Facility managers report maintenance expenditures averaging less than one dollar per square meter annually for galvanized panel systems in typical commercial applications, compared to three to five dollars per square meter for painted metal systems requiring periodic recoating. The recyclability of steel at end of service life provides both environmental benefits and potential salvage value, with galvanized steel commanding premium prices in scrap markets due to its metallurgical quality. Replacement considerations are simplified by the modular nature of panel systems, allowing damaged sections to be removed and new panels installed without affecting adjacent areas or requiring extensive scaffolding access.
Design Versatility and Aesthetic Options with Galvanized Metal Wall Panel
Modern architectural practice increasingly values materials that combine functional performance with design flexibility, and galvanized sheet metal wall panels excel in both regards. While traditional galvanized finishes display the characteristic spangled zinc crystalline pattern, contemporary manufacturing capabilities expand aesthetic possibilities dramatically. Color-coated galvanized panels featuring high-performance paint systems in PVDF or polyester formulations deliver vibrant, durable finishes in virtually unlimited color options while retaining the corrosion protection benefits of the underlying galvanized substrate. These coating systems undergo rigorous testing according to ASTM standards for adhesion, flexibility, and weathering resistance, ensuring color retention and gloss maintenance throughout the panel's service life. Profile selection significantly impacts visual character, with options ranging from traditional corrugated patterns evoking agricultural or industrial heritage, to flat panels emphasizing clean modernist aesthetics, to custom-formed shapes enabling complex geometric expressions. Horizontal and vertical installation orientations create distinctly different visual effects, with horizontal layouts emphasizing building width and vertical arrangements accentuating height and proportion. The narrow profile widths achievable with standing seam and concealed fastener Galvanized Metal Wall Panel systems create refined linear patterns that integrate seamlessly with contemporary architectural vocabularies emphasizing material honesty and tectonic clarity.
Surface Finish Options and Color Coating Technologies
The surface treatment possibilities for galvanized sheet metal wall panels extend far beyond bare galvanized finishes, incorporating advanced coating technologies that enhance both aesthetics and performance. Pre-painted galvanized coil coating applies organic finishes in controlled factory environments, achieving coating thicknesses and quality levels impossible to replicate in field application. PVDF (polyvinylidene fluoride) coatings represent the premium category, offering exceptional color stability, chalk resistance, and chemical resistance that justifies their higher initial cost through extended service life often exceeding 30 years without recoating. These high-performance finishes maintain color and gloss retention exceeding 80% after decades of UV exposure and weathering, far surpassing conventional paint systems. Polyester coatings provide excellent value for applications where extreme durability requirements are less critical, delivering reliable performance at lower cost suitable for industrial buildings, warehouses, and agricultural structures. Specialty finishes including metallic, textured, wood-grain printed, and custom color-matched formulations enable Galvanized Metal Wall Panel to satisfy virtually any aesthetic requirement while maintaining the fundamental corrosion resistance and structural advantages of the galvanized substrate. Surface embossing techniques create subtle texture patterns that reduce oil-canning visibility and add visual interest without compromising material performance. The matte and glossy finish options allow designers to control light reflection characteristics, with matte surfaces minimizing glare and reflectivity while glossy finishes maximize brightness and visual impact.
Profile Configurations and Architectural Integration
Profile geometry fundamentally shapes the visual character and performance attributes of galvanized sheet metal wall panels, with numerous standardized and custom options available to suit diverse architectural requirements. Corrugated profiles featuring repeating sinusoidal waves provide excellent structural efficiency and traditional aesthetic associations with agricultural and industrial building types. The corrugation depth and pitch dimensions can be specified to achieve desired visual scale and shadow effects, with deeper corrugations creating more pronounced three-dimensional texture. Ribbed profiles including PBR (purlin-bearing rib), PBU, and PBD configurations offer structural efficiency comparable to corrugated panels with more refined linear aesthetic suitable for commercial applications. Standing seam Galvanized Metal Wall Panel systems deliver premium aesthetics with concealed fastening and pronounced vertical seam details that emphasize building height and create strong visual rhythm. The mechanically seamed connections between adjacent panels ensure exceptional weather resistance while eliminating visible fasteners from the facade. Flat panel systems provide minimal visual texture, allowing architects to emphasize building form, proportion, and material composition rather than surface pattern. Reveal joints between flat panels can be detailed to create subtle shadow lines that articulate the modular construction while maintaining clean contemporary aesthetics. Custom roll-forming capabilities enable fabrication of special profiles designed for specific architectural requirements, including curved panels, tapered sections, and non-standard geometries that expand design possibilities beyond standard product offerings.
Sustainable and Environmentally Responsible Building Practices
Contemporary construction increasingly prioritizes environmental sustainability, resource efficiency, and lifecycle environmental impact, criteria where Galvanized Metal Wall Panel systems demonstrate significant advantages over alternative cladding materials. Steel ranks among the most recycled materials globally, with infrastructure enabling efficient collection, processing, and remanufacturing of steel products at end of service life. Galvanized panels typically contain 25-95% recycled content depending on regional steel production practices and material specifications, reducing primary resource extraction and associated environmental impacts. The zinc coating applied during galvanization is itself fully recyclable, either recovered during steel recycling or utilized in zinc recovery operations. Manufacturing energy requirements for galvanized sheet metal wall panels compare favorably to energy-intensive materials like aluminum, while the longevity of properly installed systems reduces the frequency of replacement cycles and associated environmental burdens of manufacturing, transportation, and installation. Building energy performance benefits from properly designed metal wall panel systems incorporating appropriate insulation and thermal break details, with insulated metal panel configurations achieving excellent thermal performance while maintaining the durability advantages of galvanized exterior surfaces. The lightweight nature of metal panel systems reduces transportation fuel consumption and allows for lighter supporting structures with reduced embodied carbon.
Material Efficiency and Resource Conservation
The material efficiency characteristics of galvanized sheet metal wall panels contribute directly to resource conservation and waste reduction objectives central to sustainable construction practices. The high strength-to-weight ratio of steel enables thin material sections to satisfy structural performance requirements, minimizing material quantities per square meter of wall coverage compared to masonry or concrete alternatives. Precision manufacturing tolerances reduce field cutting and fitting waste, with computerized panel layout optimization programs minimizing off-cut generation during fabrication. Unused panel sections and manufacturing scrap maintain full recycling value, entering steel production cycles without quality degradation typical of downcycled materials. The dimensional stability of galvanized steel prevents the warping, cupping, and dimensional change problems that generate waste and rework with moisture-sensitive materials like wood products. Installation efficiency translates to reduced construction site waste generation, with experienced crews producing minimal packaging waste and virtually no defective material rejection. The modular nature of Galvanized Metal Wall Panel systems facilitates future building modifications and expansions, allowing panels to be removed, relocated, and reinstalled rather than demolished and discarded. This adaptability extends building service life and defers replacement cycles, representing a fundamental sustainability strategy of designing for longevity and flexibility rather than planned obsolescence.
Conclusion
Galvanized Metal Wall Panel represents the optimal exterior cladding solution combining superior corrosion resistance, structural durability, installation efficiency, design versatility, and lifecycle cost advantages. The proven performance of galvanized sheet metal wall panels across diverse applications and environmental conditions makes them the intelligent choice for architects, contractors, and building owners seeking reliable, low-maintenance facades that protect investments while delivering lasting aesthetic appeal.
Cooperate with Xi'an Huafeng Construction Engineering Co., Ltd.
Xi'an Huafeng Construction Engineering Co., Ltd. stands as a leading China Galvanized Metal Wall Panel manufacturer, factory, and supplier offering comprehensive one-stop solutions from engineering design through construction implementation. Established in Shaanxi Province in 2018, our company earned recognition as a high-tech enterprise in 2020 while maintaining first-level building curtain wall qualifications and third-level steel structure qualifications. Our manufacturing capabilities include a 200,000 square meter raw material production plant in Anhui plus two processing facilities in Hangzhou and Xi'an, equipped with 7 color coating lines, 1 laminating line, 10 longitudinal and transverse shearing lines, and more than 40 specialized machines ensuring consistent quality control. With more than 20 registered patents, CE certification, ISO9001 and ISO14000:14001 compliance, plus SGS verification, we guarantee High Quality Galvanized Metal Wall Panel meeting international standards including ASTM, DIN, JIS, BS, and GB/T specifications. Our products serve industrial, commercial, municipal, and residential projects worldwide, with customizable thicknesses from 0.3-1.2mm, widths from 600-1200mm, and HDP or PVDF coating options. We deliver comprehensive services including structural 3D modeling, load analysis, drainage simulation, factory sample production, precision manufacturing with real-time quality control, and seamless on-site installation guidance. Our monthly supply capacity exceeds 1000 tons with 15-20 day delivery, 500 square meter minimum order quantities, and 30-year warranty coverage. For competitive Galvanized Metal Wall Panel price quotations and wholesale opportunities, contact our experienced team at huafeng@hfmetalroof.com to discuss your project requirements and discover why Fortune 500 companies trust our China Galvanized Metal Wall Panel for sale solutions.
References
1. American Institute of Steel Construction, "Steel Construction Manual: Design of Metal Building Systems," 15th Edition, 2017
2. Zinc Council International, "Galvanized Steel: A Specification Guide for Building Envelope Applications," Technical Report, 2022
3. National Association of Architectural Metal Manufacturers, "Metal Wall Panel Design Guide," Publication NAAMM-MWPD-2021
4. American Society for Testing and Materials, "Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) by the Hot-Dip Process," ASTM A653/A653M-2024
5. Construction Specifications Institute, "Masterspec Section 07 42 13: Metal Wall Panels - Performance Standards and Installation Guidelines," Edition 2023
