Hidden Fastener Metal Roofing: The Premium Choice for Lasting Protection

When builders and architects search for a roofing system that performs as well as it looks, hidden fastener roofing consistently rises to the top. This system secures metal panels through concealed clips or interlocking seams, leaving no exposed screws on the finished surface. The result is a clean, continuous facade that resists water infiltration far better than traditional screw-down systems. For custom home builders, design-build firms, and high-end renovation contractors, this type of standing seam metal roof delivers the curb appeal and long-term protection that luxury projects demand.

Understanding Hidden Fastener Metal Roofing

If you want to choose the right roofing material, you should know how the system works and what makes a good installation different from a bad one.

How the Clip System Works

The panels fit into a clip that floats on the air and links to the base below. The clip holds the panel in place, but it can still bend and shrink as the weather changes. Over time, screw wear and EPDM washer degradation are issues that have been seen in fastener systems. These issues are solved by this plan.

Standing Seam vs. Snap-Lock Profiles

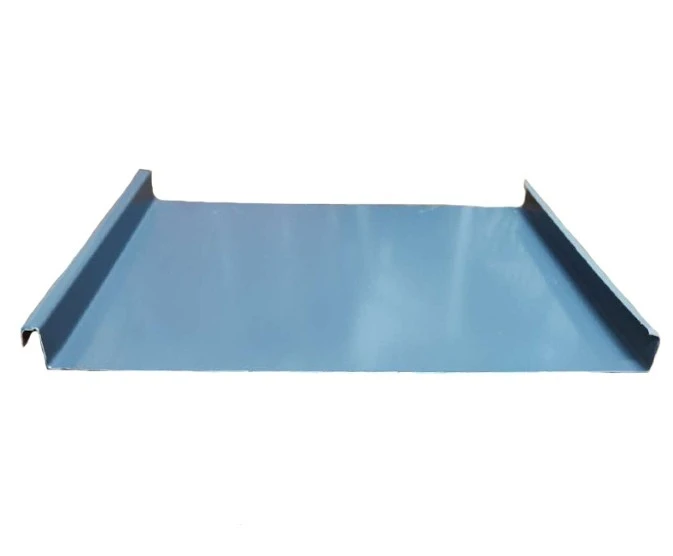

Single or double lock manually seamed profiles make a seal that keeps water out and doesn't let air in. This seal can work for roof slopes as low as 0.5:12. Snap-lock profiles are often used in home building projects because they look better and are easier to put together. These two kinds of goods are made by HF, and their shapes come in sizes like 25-330/400/430, 32-410, and 45-400, making them versatile hidden fastener roofing options.

Material and Coating Options

Panels are made of aluminum, galvanized steel, stainless steel, copper, and zinc, and their thickness ranges from 0.4 mm to 1.2 mm. Two kinds of surface treatments are PVDF fluorocarbon coatings and PE polyester coats. All 13 tests for coating function were passed by PVDF according to AAMA 2605-22 norms. The tests checked for even color, stickiness, resistance to impact, and resistance to chemicals. Because of this, it was the best choice for high-end fronts.

Benefits of Hidden Fastener Roofing for B2B Procurement

This type of roofing is a good long-term investment because it lasts a long time, doesn't cost much to maintain, and lets you be creative with the design.

Extended Service Life and Reduced Replacement Costs

Exposed fastener systems need to be repaired every 10 to 15 years because the nuts and screws wear out. If you install a PVDF-coated hidden fastener system the right way, it can last more than 50 years with little upkeep. When you buy something from HF, you can get a 30-year warranty that says the product will last and not break down early.

Energy Performance and Sustainable Building

Metal roofs that meet cool-roof standards have PVDF coatings that reflect sunlight and keep heat from entering the building. It keeps the HVAC loads low, which is great for homes and businesses with lots of space. There was no fire in any of the six models of HF's metal base that were put through the AS/NZS 1530.3:1999 test. The company also makes products that follow the EU RoHS Directive, which shows it cares about the earth.

Design Flexibility for High-End Projects

Planners can choose to have continuous runs of panels in matte black, charcoal gray, or any other RAL color because there are no obvious fasteners. This will not break up the flow of the design. There are lines and curves in the panel field that stop oil canning, which is when flat metal sheets get wavy. This keeps the fronts of expensive buildings clean, a key advantage of hidden fastener roofing.

It is more valuable to buy something when there are fewer callbacks, better guarantees, and a product that supports premium placement for any custom home or business development.

Installation and Performance Optimization

To get the most out of a hidden fastener system, you need to make sure the base is ready and pick the right materials. It's important to think about these things if you want to do well on the field.

• Substrate flatness: Uneven decking is the primary cause of oil canning. Structural purlins or a continuous plywood deck must be level before panel installation begins. HF's quality control process includes visual inspection at the factory to catch any waviness before shipment.
• Clip spacing and wind uplift: Panel clips must be spaced according to the project's design wind pressure. HF panels comply with ASTM, DIN, JIS, BS, and GB/T standards, and profiles can be configured to meet UL 580 Class 90 wind uplift ratings for coastal and hurricane-zone applications.
• Thermal movement allowance: Long panel runs require adequate floating clip travel. HF's clip assemblies accommodate the thermal expansion coefficient of steel and aluminum over spans up to 40 ft, preventing buckling in extreme temperature swings.
• Seam sealant for low slopes: On roofs below 2:12, factory-applied hot-melt sealant inside the female leg of the seam prevents capillary water intake, tested to ASTM E1646.

When you plan, keep these four things in mind. They will help you avoid the most common problems that happen on the job and make it last much longer than the insurance period.

Market Comparison and Decision-Making Guide

Choosing between roofing systems requires an honest look at cost, longevity, and project fit.

Concealed vs. Exposed Fastener Systems

Exposed fastener panels cost less upfront but introduce thousands of roof penetrations, each a potential leak point as washers age. Concealed fastener systems carry a higher initial cost but eliminate this failure mode entirely. For a custom home priced above $1 million, the cost difference is negligible against the long-term risk reduction, which is why many builders now specify hidden fastener roofing.

Metal Roofing vs. Asphalt Shingles

Asphalt shingles carry an average lifespan of 15–25 years. Metal roofing with PVDF coating regularly exceeds 50 years. Over a 50-year ownership period, a homeowner may replace a shingle roof twice while a metal roof installed once remains sound. The life-cycle cost advantage is well documented across industry studies.

Selecting the Right Profile

Profile selection depends on roof slope, panel length, climate zone, and aesthetic goals. HF offers multiple profile geometries—25-330, 32-410, and 45-400, among others—with custom panel lengths, making it possible to match virtually any architectural specification without field cutting waste.

Procuring Hidden Fastener Roofing: Brands, Suppliers & Services

You can't just look at price lists to find a reliable hidden fastener roofing company. Price is not the only thing that matters. Quality, wait time, and expert help are also very important.

What to Verify Before Ordering?

AAMA 2605-22 tests show how well the coating works, AS/NZS 1530.3 tests show how it reacts to fire, and EU RoHS tests show if it meets environmental standards. One of the most well-known testing companies in the world, SGS, gave HF all three of its certificates. It should be guaranteed in writing that the color of each batch will be the same, especially if the packages are spread out over time.

HF's Supply Capabilities

One factory is in Anhui, one is in Hangzhou, and one is in Xi'an. They are all owned by the Xi'an Huafeng Construction Engineering Co., Ltd. There are more than 40 working machines and seven color coating lines in these companies. Every month, the most that can be sent is 1,000 tons, and the smallest order is 500 square meters, which is equal to 1 ton. It takes about 15 to 20 days to deliver. You can pick your own RAL colors and get samples to make sure you like the design before you order the whole run.

Working with a Verified Manufacturer

In Shaanxi Province in 2020, HF was named a high-tech company. It also has a first-level license to build curtain walls. The company has more than 20 registered patents for roofing systems. It also follows the ISO 9001 and ISO 14001 standards, which help purchasing teams judge the quality of sellers.

Conclusion

For the long term, one of the best things a builder or property developer can do is buy a metal roof with secret fixings. A third party has confirmed that it works as promised and gets rid of the most common places where screw-down systems fail. It also fits in with modern architectural styles. HF's hidden fastener roofing line is a good way for custom home builders and design-build firms that want to sell roofing materials to high-end customers. It comes with a 30-year guaranty, meets multiple standards, and has enough supplies to handle a lot of projects at once.

FAQ

1. Does hidden fastener roofing handle thermal expansion differently from exposed fastener systems?

Yes. A hidden fastener system with a moving clip lets each panel move on its own when the temperature changes. In screw-down systems, where temperature movement is restricted at every fastener point, this can cause the panels to buckle and the screws to wear out. This keeps them from happening.

2. Is oil canning a structural defect?

This is not a flaw; it is a design trait that comes from stress in the light-gauge metal. There's nothing wrong with the structure. If you pick a panel with striations that were pressed on at the factory, a panel with a thicker gage (0.7 mm or more), or a panel that is narrower, it is much harder to see.

3. What is the minimum slope for a concealed fastener metal roof?

Machine-seamed profiles can work on slopes as low as 0.5:12 if factory seam sealant is used. Snap-lock profiles normally need at least 2:12 to drain well.

4. Can solar panels be mounted without penetrating the roof?

Yes, seam clamps can be attached to the raised seam of standing seam panels without holes having to be drilled. This protects the layer that keeps water out and keeps the manufacturer's warranty valid.

5. What RAL colors are available from HF?

We have all of the RAL colors at HF, and we can also mix colors to fit your needs for PVDF and PE finishes. For high-end home projects, matte black and dark gray are often available in stock.

Request a Sample or Quote from HF — Trusted Hidden Fastener Roofing Manufacturer

You need a product that works as stated from the start for your next high-end roofing job. There is a 30-year guaranty on the high-quality hidden fastener roofing panels that HF sells. They have been approved by SGS. You can pick your own color too. We can help with both small and large orders because we can handle up to 1,000 tons per month and deliver in 15 to 20 days. Send us an email at huafeng@hfmetalroof.com right away to get a price.

References

1. Metal Construction Association. Metal Roofing: Design and Installation Guide. 2021.

2. Sheet Metal and Air Conditioning Contractors' National Association (SMACNA). Architectural Sheet Metal Manual, 7th Edition. 2012.

3. American Architectural Manufacturers Association (AAMA). AAMA 2605-22: Voluntary Specification, Performance Requirements and Test Procedures for Superior Performing Organic Coatings on Aluminum Extrusions and Panels. 2022.

4. National Roofing Contractors Association (NRCA). The NRCA Roofing Manual: Metal Panel and SPF Roof Systems. 2020.

5. Oak Ridge National Laboratory. Reflective Roofing Research: Energy Savings from Cool Metal Roofs. 2019.

6. Underwriters Laboratories (UL). UL 580: Tests for Uplift Resistance of Roof Assemblies. 2018.
