Modern Trapezoidal Corrugated Roofing
Width: 600-1200 mm,or customized as required
Thickness: 0.4-1.2mm, or customized as required
Finishes: PE, HDP, PVDF COATING
3 factories&7 production lines&more than 40 machines
Supply Ability：1000 Ton/month
Service life:30-year warranty
MOQ:500㎡
Standard:ASTM,DIN,JIS,BS,GB/T
Delivery time: 15-20 days
Provide customized services: color, pattern, design customization
Modern Trapezoidal Corrugated Roofing: Durable, Versatile, and Cost-Effective
Xi'an Huafeng Construction Engineering Co., Ltd. is a leading manufacturer and supplier of Modern Trapezoidal Corrugated Roofing. Our items stand out for their remarkable toughness, flexibility, and cost-effectiveness. With progressed designing and high-quality materials, our item arrangements meet the assorted needs of mechanical, commercial, and private ventures.
Product Introduction
The product is a metal roofing material widely used in industrial, commercial, and civil buildings. It adopts a trapezoidal corrugated design and has the characteristics of high strength, light weight, corrosion resistance, and easy installation. It is usually made of galvanized steel sheet, aluminum sheet, or color-coated steel sheet, and the surface can be treated with anti-corrosion and anti-ultraviolet treatment, suitable for various climate conditions.

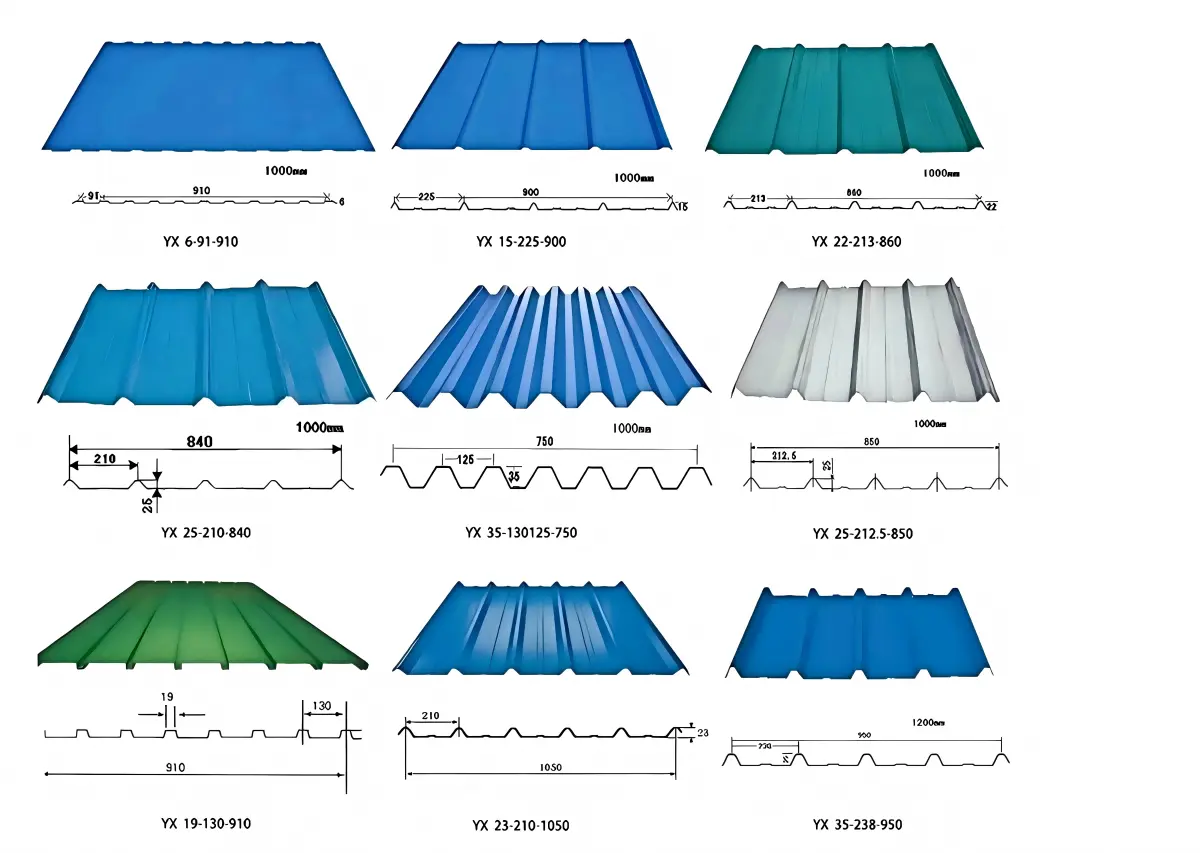

Specifications
| Feature | Specification |
|---|---|
| Material | Galvanized Iron (GI), Galvalume (GL), Pre-painted Galvanized Iron (PPGI), Aluminum |
| Thickness | 0.3mm - 1.2mm (adjustable based on load-bearing requirements) |

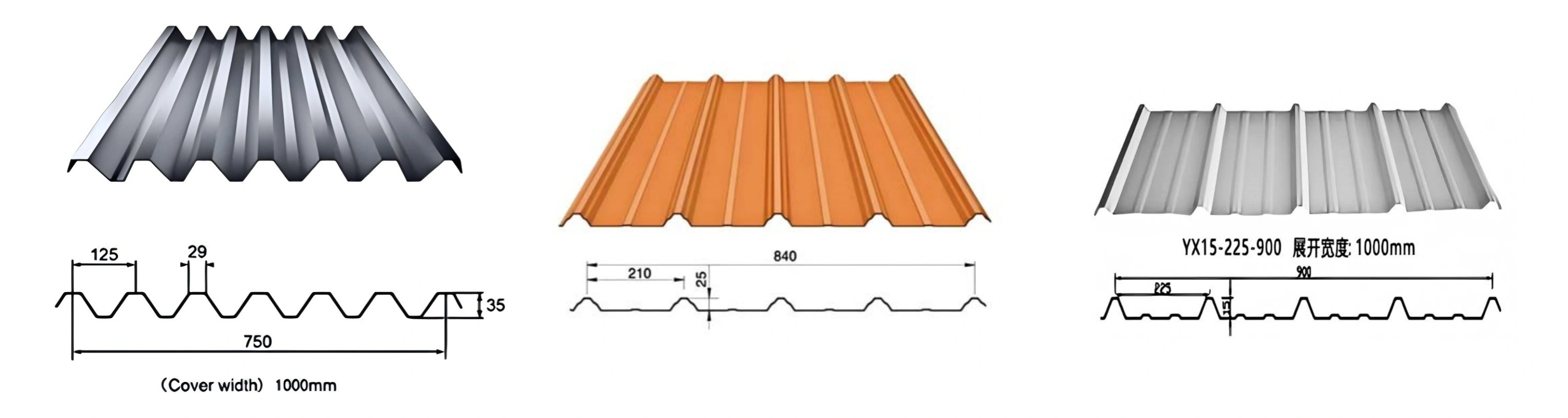

| Corrugation Height | 15mm - 75mm (models: T15, T20, T35, etc.) |
| Width | 600mm - 1200mm effective coverage |
| Length | Customizable, typically 1m - 12m or longer |
| Color | Various RAL or Pantone standard colors available |
Features
High strength & lightweight
Enhanced structural strength, reduced supporting structures, 3-10kg/m²
Corrosion & weather resistance
Galvanized or aluminum-zinc coating, PVDF or PE for UV, acid, and alkali resistance
Waterproof & drainage
Optimized design for large-span roofs, reduced leakage risk
Easy installation
Bolt-on or hidden fastener system for fast, cost-effective construction
Fireproof & eco-friendly
Non-combustible (Class A), recyclable, meets green building standards
Aesthetically pleasing
Various colors and finishes available for modern architectural needs

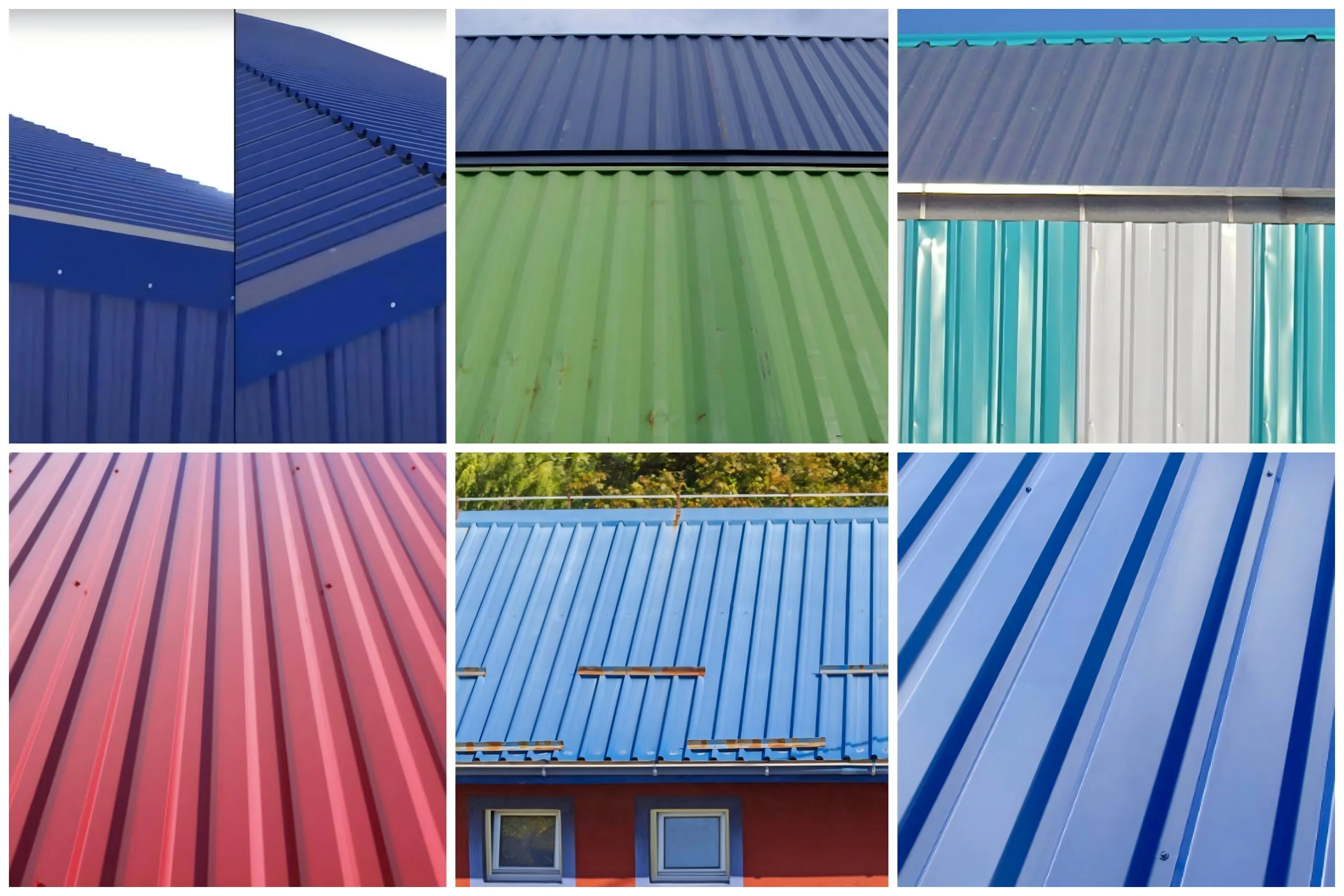

Applications
- Industrial buildings: factories, warehouses, workshops, logistics centers
- Commercial buildings: supermarkets, exhibition halls, stadiums, airports
- Agricultural buildings: greenhouses, farms, machinery sheds
- Civil buildings: residential roofs, garages, canopies
- Temporary structures: construction site housing, container houses
Why Choose Us?
- 7 state-of-the-art production lines ensuring consistent quality
- Over 20 patented technologies in roofing systems
- CE, ISO, and SGS certified products
- Customization capabilities to meet specific project needs
- Experienced engineering team providing technical support
- Competitive pricing for bulk orders
Project Cases
We've successfully completed Modern Trapezoidal Corrugated Roofing projects for Fortune 500 companies across various industries.

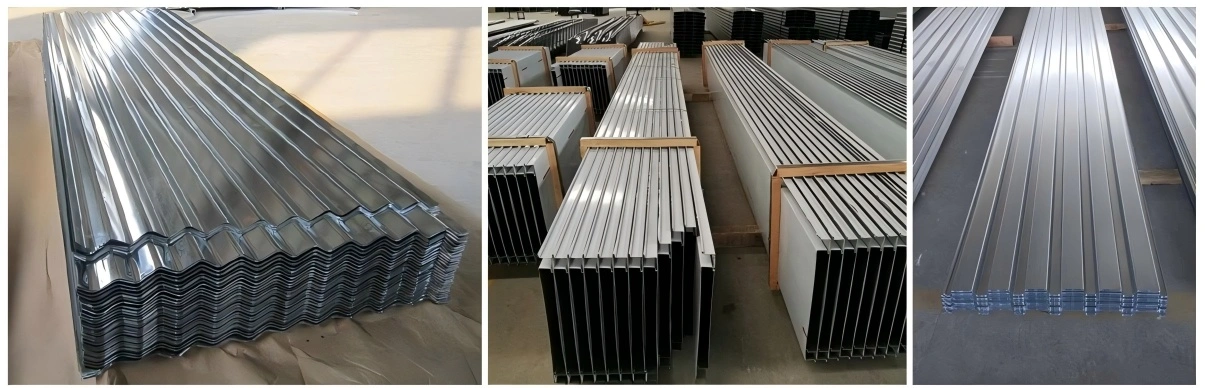

Factory Strength
Our advanced facilities include 7 raw material production lines and over 20 plate production machines.
Packaging
We ensure secure packaging and efficient logistics for timely delivery of your order.
Qualification Certification
Our products are CE, ISO, and SGS certified, guaranteeing international quality standards.
FAQ
Q: What is the minimum order quantity (MOQ) for the product?
A: Our MOQ is 500㎡, suitable for both small and large-scale projects.
Q: Can you customize the color and design of the roofing?
A: Yes, we offer customization services for color, pattern, and design to meet your specific requirements.
Q: What is the delivery time for an order?
A: Our standard delivery time is 15-20 days, depending on order volume and specifications.
Q: Do you provide installation support?
A: While we don't provide direct installation services, we offer comprehensive technical guidance and support.
Q: What guarantee do you offer on your item?
A: We give a 30-year guarantee on our material items, illustrating our certainty in their strength and quality.
Contact Us
For inquiries or to discuss your Modern Trapezoidal Corrugated Roofing needs, please email us at huafeng@hfmetalroof.com.
