Picture this scenario: heavy rain is pouring down your roof, cascading over the edges and pooling around your foundation, threatening structural damage and costly repairs. This nightmare could have been prevented with a properly functioning roof gutter system. Understanding the parts of a gutter system is not just about home maintenance—it's about protecting your investment and ensuring the longevity of your building. This comprehensive guide will walk you through every component of roof gutter system parts, explaining how each element works together to channel water away from your property and prevent water damage.

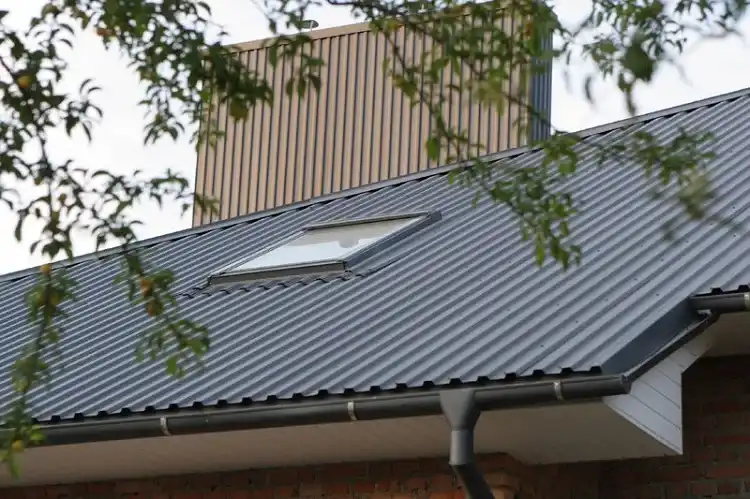

Essential Components of Roof Gutter System Parts
Understanding the individual components that comprise a complete roof gutter system is fundamental to maintaining proper water management for any building. Each component plays a specific role in collecting, channeling, and directing rainwater away from your structure's foundation and exterior walls. The roof gutter system parts work in harmony to create an effective drainage solution that protects your property from water-related damage, erosion, and structural deterioration. When properly installed and maintained, these components can last for decades while providing reliable protection against the elements.
-
Gutter Channels and Their Critical Function
Gutter channels represent the primary horizontal component of roof gutter system parts, installed along the roof's edge to collect rainwater as it flows down from the shingles. These long, trough-shaped structures are typically manufactured from materials such as aluminum, steel, or copper, with aluminum being particularly popular due to its exceptional durability and corrosion resistance. The HF brand specializes in premium AA3003 aluminum alloy gutter channels with thickness ranging from 0.7mm to 1.0mm, providing optimal strength while maintaining lightweight characteristics for easier installation. The channels come in various profiles including K-style systems available in 5-inch, 5.5-inch, 6-inch, 6.5-inch, 7-inch, and 8-inch sizes, as well as custom dimensions to accommodate specific project requirements. Proper gutter channel selection depends on factors including roof size, average rainfall in your region, and architectural aesthetics. The anodized surface treatment followed by electrostatic powder coating ensures long-lasting color retention and weather resistance, with color options including white, light gray, milky white, dark gray, black, brown, and bronze to complement any building design.
-
Downspouts and Water Discharge Systems
Downspouts serve as the vertical conduits within roof gutter system parts, responsible for transporting collected water from the gutter channels down to ground level where it can be safely directed away from the building's foundation. These enclosed pipes are strategically positioned along the building's exterior walls, typically at corners or other designated locations that optimize water flow and minimize aesthetic impact. HF manufactures downspouts in both square configurations (80x50mm, 80x60mm, 100x80mm, 120x90mm) and circular profiles (50mm, 75mm, 100mm) with thickness ranging from 0.8mm to 1.0mm in AA3003 aluminum alloy. The material selection ensures resistance to corrosion, denting, and weather-related degradation while maintaining sufficient structural integrity to handle high-volume water flow during heavy rainfall events. Properly sized downspouts are essential for preventing overflow situations that could compromise the entire gutter system's effectiveness. The number and placement of downspouts should be calculated based on the total roof area, gutter length, and expected rainfall intensity to ensure adequate drainage capacity throughout the year.
-
End Caps and Sealing Components
End caps are critical roof gutter system parts that seal the terminal points of gutter runs, preventing water and debris from escaping through the sides. These components are typically flat pieces of metal shaped to match the gutter profile and are securely attached to the gutter ends using sealants and fasteners. High-quality end caps manufactured by HF feature precise engineering to ensure watertight seals that prevent leakage and maintain the system's efficiency. The installation process involves careful alignment and the application of professional-grade sealants to create a permanent, weatherproof barrier. End caps not only prevent water loss but also protect the internal gutter structure from exposure to elements that could cause premature deterioration. Additionally, properly installed end caps help maintain consistent water flow direction toward the downspouts, ensuring the entire drainage system functions as designed. Regular inspection of end caps should be part of routine gutter maintenance, as any separation or damage could lead to water seepage that undermines the gutter system's protective function.
Advanced Roof Gutter System Parts and Accessories
Beyond the basic components, a comprehensive roof gutter system incorporates various specialized parts and accessories that enhance functionality, durability, and overall performance. These advanced elements address specific challenges such as corner transitions, structural support, and debris management, ensuring the system operates efficiently under diverse conditions and throughout varying seasonal demands.
-
Miters and Corner Connections
Miters are specialized roof gutter system parts designed to join gutter sections at corners, creating seamless transitions around building edges. These components come in two primary configurations: outside miters for external corners and inside miters for internal corners, each precisely engineered to maintain proper water flow angles and prevent pooling or backup at junction points. The manufacturing process for HF miters involves precision cutting and forming to ensure exact fit with standard gutter profiles, minimizing the potential for leaks at these critical connection points. Professional-grade sealants are applied during installation to create watertight bonds that withstand thermal expansion and contraction throughout seasonal temperature variations. Corner connections represent particularly vulnerable areas in any gutter system, as improper installation or inferior quality miters can lead to separation, leakage, and eventual system failure. HF's commitment to quality manufacturing ensures that all miter components undergo rigorous testing and quality control procedures before leaving the factory, meeting international standards including ASTM, DIN, JIS, BS, and GB/T specifications.
-
Gutter Hangers and Support Systems
Gutter hangers constitute the structural backbone of roof gutter system parts, providing essential support that maintains proper pitch and prevents sagging under the weight of water, debris, and environmental loads. These critical components attach the gutter channels to the building's fascia board, distributing weight evenly and ensuring the system maintains optimal drainage angles throughout its length. Modern hanger designs have evolved significantly from traditional spike-and-ferrule systems to more reliable hidden hanger configurations that offer superior holding power and aesthetic appeal. HF's manufacturing facilities produce a variety of hanger styles compatible with different gutter profiles and installation requirements, each engineered to provide decades of reliable service. The spacing of gutter hangers is determined by factors including gutter material, expected snow and ice loads, and local building codes, typically ranging from 24 to 36 inches apart for residential applications. Proper hanger installation is crucial for maintaining the slight slope (typically 1/4 inch per 10 feet) necessary for effective water drainage. Using high-quality hangers manufactured from corrosion-resistant materials ensures long-term structural integrity and minimizes maintenance requirements over the gutter system's lifespan.
-
Elbows and Directional Components
Elbows represent versatile roof gutter system parts that redirect water flow through angles and around obstacles, ensuring efficient drainage regardless of architectural complexities. These bent sections of pipe connect at various points within the downspout assembly, typically at the top where the downspout meets the gutter outlet and at the bottom where water is directed away from the foundation. Two primary elbow styles exist: A-style elbows feature two bends that direct water flow forward or backward, while B-style elbows incorporate a single bend that channels water left or right. The selection between these styles depends on specific installation requirements, building configuration, and drainage objectives. HF manufactures elbows in dimensions compatible with all standard downspout sizes, ensuring seamless integration with complete gutter systems. The material composition matches that of the downspouts themselves—AA3003 aluminum alloy with appropriate thickness to withstand water pressure and physical stress. Properly positioned elbows not only ensure effective water redirection but also contribute to the system's overall aesthetic by creating clean lines that complement the building's architectural design. Installation requires careful measurement and secure fastening to prevent disconnection during high-flow conditions.
Professional Installation and Quality Assurance
The effectiveness of any roof gutter system parts depends not only on component quality but also on professional installation practices that ensure proper function, longevity, and weather resistance. Xi'an Huafeng Construction Engineering Co., Ltd. brings decades of experience in gutter system design, manufacturing, and installation, providing comprehensive solutions that address every aspect of water management for residential, commercial, and industrial applications.
-
Design and Engineering Excellence
Xi'an Huafeng's approach to roof gutter system parts begins with thorough project analysis and custom design solutions. The company's technical team conducts detailed evaluations of architectural drawings, including floor plans, elevations, and node diagrams, to develop optimal gutter configurations tailored to each project's specific requirements. This process includes structural 3D modeling and load analysis to ensure the system can handle expected water volumes and environmental stresses. Drainage system simulation technology allows engineers to predict water flow patterns and identify potential issues before installation begins. Material specification advisory services help clients select the most appropriate components based on factors including climate conditions, building materials, aesthetic preferences, and budget constraints. The design department performs precise 1:1 drawing deepening for all project nodes, creating detailed installation plans that guide the manufacturing and installation processes. This meticulous attention to detail ensures that every component fits perfectly and functions as intended, eliminating common installation problems and reducing the likelihood of future maintenance needs.
-
Manufacturing Standards and Quality Control
HF's manufacturing capabilities span three factories with seven color coating production lines, one laminating production line, and ten longitudinal and transverse shearing production lines, supported by more than 40 specialized machines including shearing equipment, presses, and bending machines. This extensive infrastructure enables monthly production capacity of 10,000 tons, ensuring reliable supply for projects of any scale. The manufacturing process for roof gutter system parts begins with careful material procurement from certified suppliers including Alucosuper, YATAI, and LIDAO for aluminum products, ensuring consistent quality and performance characteristics. Incoming material inspection procedures include comprehensive testing for appearance, dimensions, salt spray resistance, adhesion, hardness, impact resistance, film thickness, acid resistance, weather resistance, and color consistency. Each production run undergoes multiple quality checkpoints, with finished products inspected for appearance, dimensional accuracy, flatness, and curvature before packaging. This rigorous quality control system, certified to ISO9001, ISO14000:14001, and SGS guidelines, guarantees that every component meets or exceeds international standards. Factory processing samples are created and sealed as reference standards for ongoing production, ensuring consistency across large orders and repeat projects.
Maintenance and Long-Term Performance
Ensuring the continued effectiveness of roof gutter system parts requires regular maintenance, periodic inspection, and timely repairs when issues are identified. Understanding proper maintenance protocols extends system lifespan, prevents costly water damage, and maintains optimal drainage performance throughout changing seasons and weather conditions.
-
Inspection and Preventive Maintenance
Regular inspection of roof gutter system parts should occur at least twice annually, typically in spring and fall, to identify potential problems before they escalate into serious issues. Inspection protocols include checking for debris accumulation, examining seams and joints for separation or leakage, verifying proper water flow during rainfall, and assessing the structural integrity of hangers and supports. Cleaning procedures involve removing leaves, twigs, and sediment that can obstruct water flow and create conditions conducive to corrosion. Downspouts should be flushed with water to ensure unobstructed passage and proper discharge away from the foundation. Any loose or damaged components require immediate attention to prevent cascading failures that could compromise the entire system. HF provides comprehensive maintenance guidance to customers, including detailed instructions for routine care and recommendations for professional service intervals. The company's 30-year warranty reflects confidence in product durability and manufacturing quality, providing peace of mind for property owners. Proactive maintenance represents a modest investment that prevents substantial repair costs and protects the building's structural integrity over decades of service.
Conclusion
Understanding roof gutter system parts empowers property owners and managers to make informed decisions about installation, maintenance, and upgrades that protect their investments. Each component serves a specific purpose within an integrated system designed to manage water effectively and prevent damage.
Cooperate with Xi'an Huafeng Construction Engineering Co., Ltd.
Xi'an Huafeng Construction Engineering Co., Ltd., established in Shaanxi Province in 2018, stands as a leading China roof gutter system parts manufacturer, China roof gutter system parts supplier, and China roof gutter system parts factory specializing in comprehensive building envelope solutions. Recognized as a high-tech enterprise with first-level qualification for building curtain walls and third-level qualification for building steel structures, the company operates a 200,000-square-meter raw material production plant in Anhui and two plate and accessories processing facilities in Hangzhou and Xi'an. With extensive experience in engineering design and construction, seven raw material production lines, more than 20 plate production machines, and over 20 patent certificates, Huafeng delivers high quality roof gutter system parts backed by CE certification, ISO certification, and SGS certification. The company's successful collaboration with Fortune 500 companies demonstrates its capability to provide customized production solutions and one-stop procurement from raw materials to accessories. Offering roof gutter system parts for sale at competitive roof gutter system parts price points with China roof gutter system parts wholesale options, Huafeng provides design optimization services, raw material quality testing, customized products, multiple packaging solutions, and various transportation methods with 15-20 day delivery times. Connect with our team today to discuss your project requirements and receive expert guidance on selecting the optimal gutter solutions for your application. Contact us at huafeng@hfmetalroof.com to request free samples and detailed quotations.
