Inside locking metal aluminum cladding panel
Width: 200-500 mm,or customized as required
Thickness: 0.6-1.2mm, or customized as required
Finishes: PE, HDP, PVDF COATING
Service life:30-year warranty
MOQ:500㎡
Standard:ASTM,DIN,JIS,BS,GB/T
Delivery time: 15-20 days
Provide customized services: color, pattern, design customization
UV-resistant fluorocarbon paint metal exterior wall panels： specifically designed for commercial complex projects
Xi'an Huafeng Construction Engineering Co., Ltd. is a leading manufacturer and supplier of Inside locking metal aluminum cladding panel. Our innovative panels combine cutting-edge design with superior functionality, offering unparalleled advantages in durability, aesthetics, and ease of installation. With over 20 patented technologies and certifications from CE, ISO, and SGS, we deliver top-quality solutions for modern construction projects.
Product Introduction

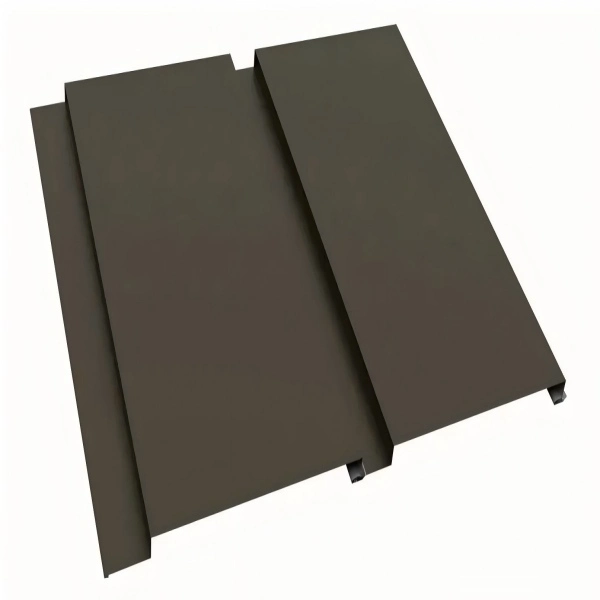

The products are an innovative building exterior and interior decoration material, using high-strength aluminum alloy or galvanized steel as the base material, and the surface is treated with fluorocarbon spraying, powder spraying or anodizing, etc., with excellent weather resistance, corrosion resistance and decorative properties. Its unique "Inside Lock System" installation system makes panel installation more convenient, joints more concealed, and the overall visual effect is simple and elegant, suitable for modern building facades, interior decoration and special modeling needs.

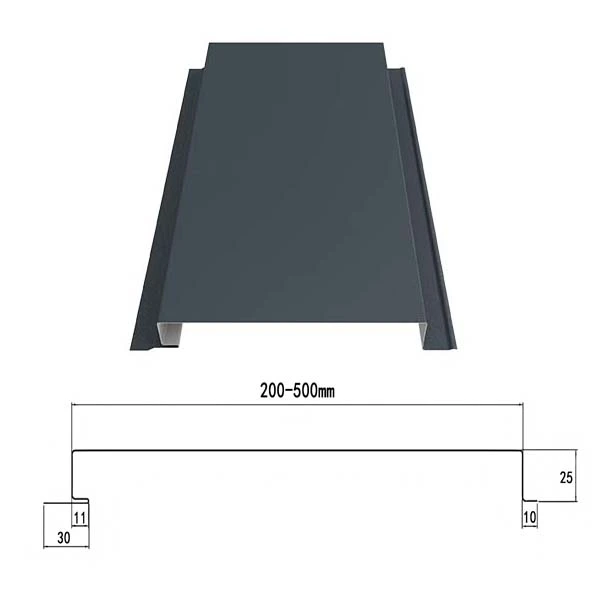

Specifications
| Feature | Description |
|---|---|
| Base Material | Aluminum alloy (AA3003/AA3004/AA5005), galvanized steel，galvalume steel |
| Panel Length | Length can be customized (usually ≤12 meters) |
| Thickness | 0.5mm~1.2mm |
| Panel Width | 200mm~500mm |
| Surface Treatment | - Fluorocarbon spraying (PVDF): UV resistance, long-lasting color - Powder spraying: environmentally friendly, a variety of colors available - Anodizing: strong metal texture, wear resistance |
| Fire Protection Level | Class A non-combustible material (in accordance with GB8624 standard) |
| Applicable Temperature | -50℃~+80℃ |
Installation Steps
- Substrate Preparation: Ensure the wall/ceiling substrate is flat and firm, clean away surface debris, and install the dedicated joists, adjusting them to a horizontal/vertical position.
- Panel Positioning: Align the slot of the first aluminum panel with the joist clips, gently press to secure, and check flatness with a level.
- Joining and Fixing: Insert subsequent panels into the side slots of the previous panel, reinforcing with self-tapping screws every 50cm (concealed installation, not affecting appearance).
- Edge Finishing: After installation, use the matching corner trim and edge banding to finish the edges, ensuring overall aesthetics.
- Cleaning and Acceptance: Wipe away stains from the panel surface, check the joints and fixing strength, and confirm there is no looseness or deformation.
Application Scenarios

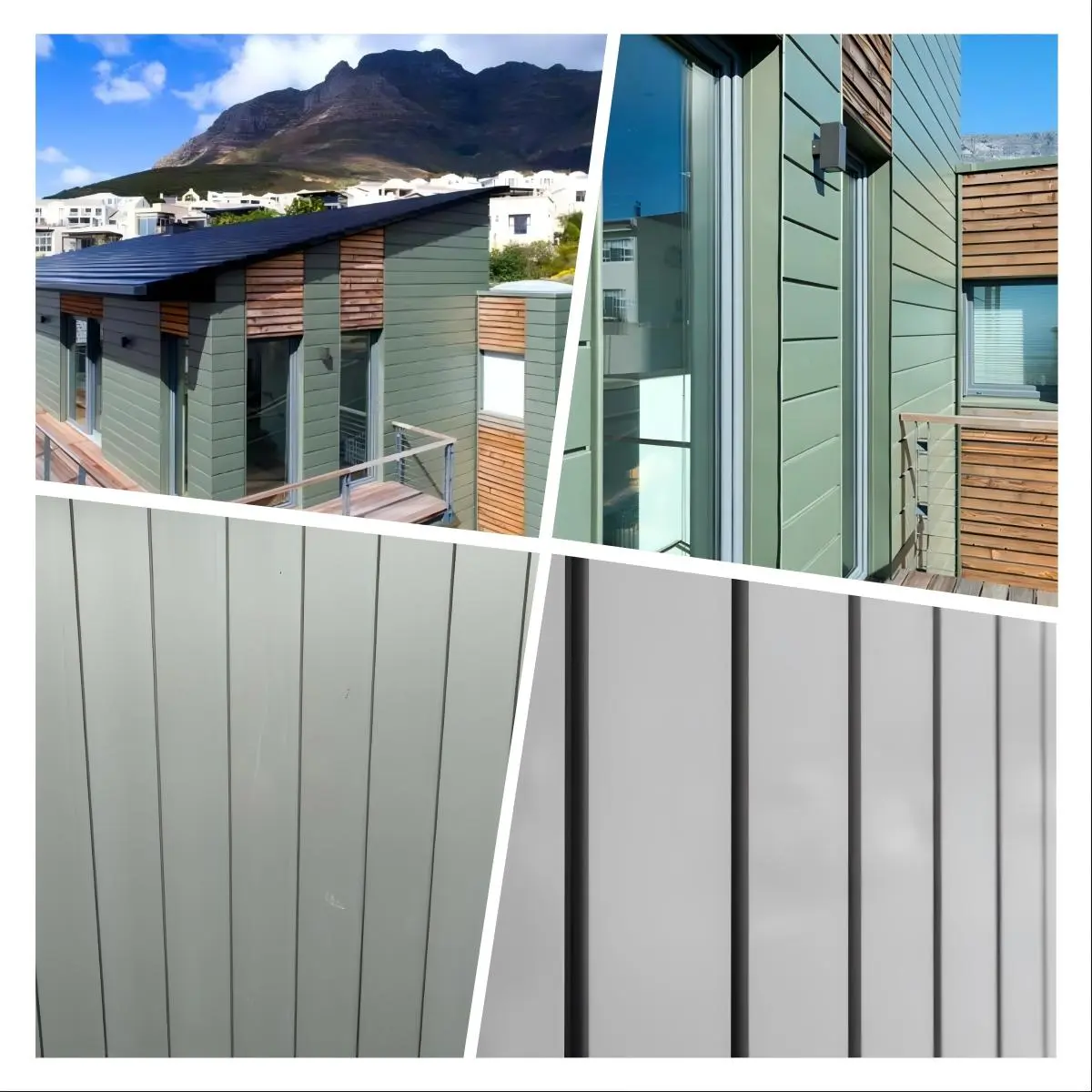

Building Exterior
Suitable for the facades of modern buildings such as office buildings, industrial parks, and commercial complexes, creating a simple yet sophisticated visual effect.
01
Interior Decoration
Can be used for lobby background walls, corridor ceilings, conference room walls, etc., enhancing the sense of space and sophistication.
02
Renovation Projects
No need to demolish existing walls; direct dry-hanging installation allows for rapid renovation of old building facades, shortening the construction cycle.
03
Landscape Amenities
In outdoor settings such as scenic area rest stops and park pergolas, it combines decorative appeal with weather resistance, adapting to various climates.
04
Why Choose Us?
- Custom solutions tailored to your project needs
- Rigorous quality control ensuring long-lasting performance
- Competitive pricing for bulk orders
- On-time delivery and professional installation support
- Eco-friendly materials and production processes
Project Cases
Our Inside locking metal aluminum cladding panel have been successfully implemented in numerous high-profile projects worldwide.
Factory Strength
With 3 factories, 7 production lines, and over 40 advanced machines, we ensure consistent quality and timely delivery.
Packaging
We use industry-leading packaging methods to protect your panels during transit, guaranteeing they arrive in perfect condition.
Qualification Certification
Our products meet international standards, backed by CE, ISO, and SGS certifications for quality assurance.
FAQ
Q1: What is the minimum order quantity for products?
A1: Our minimum order quantity is 500㎡.
Q2: Can you customize the color and design of the panels?
A2: Yes, we offer full customization services for color, pattern, and design.
Q3: What is the typical delivery time for an order?
A3: Standard delivery time is 15-20 days, depending on order size and specifications.
Q4: Do you provide installation services?
A4: While we don't directly install, we offer comprehensive installation guidelines and can recommend certified installers.
Q5: What is the warranty period for your products?
A5: We offer a 30-year warranty on our panels, demonstrating our confidence in their durability and performance.
